FEATURES
Channels: 12 proportional, 2 switched

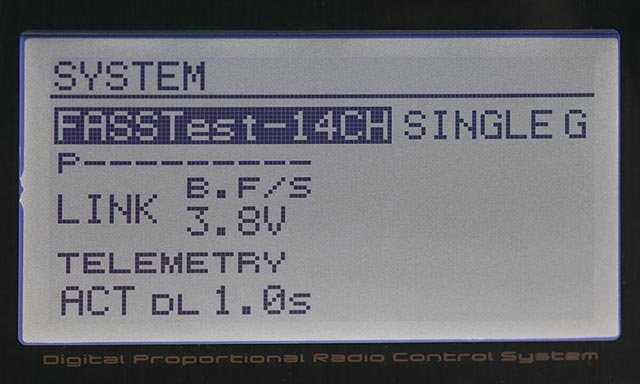

Compatible with FASSTest, FASST and S-FHSS protocols
FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
Free user-updatable software
30-model memory
10-character user naming
10-character model naming
Airplane, helicopter and glider programming

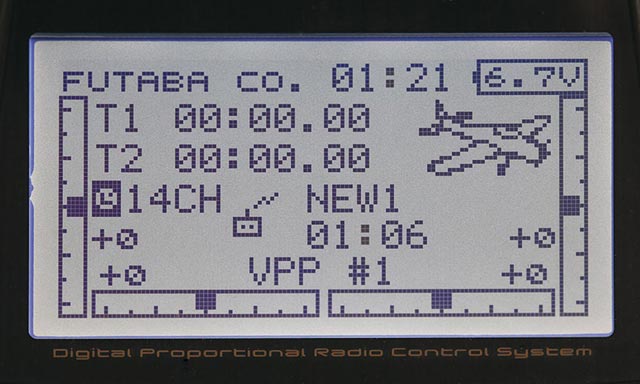

Large, 1.75†x 3†backlit LCD screen with 128 x 64 resolution
SensorTouchâ„¢ programming

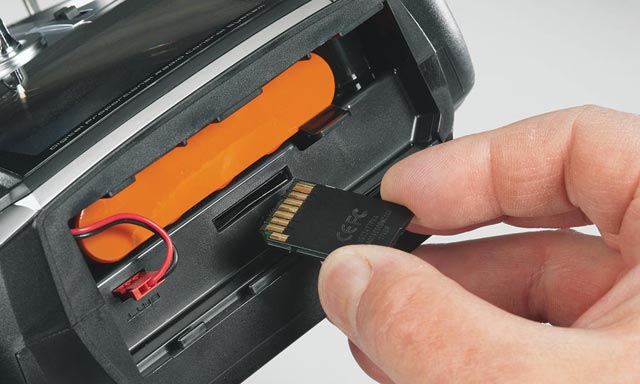

Compatible with secure digital memory cards for external storage of model setups and software updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
Left and right assignable slider switches
Two assignable rotary knobs

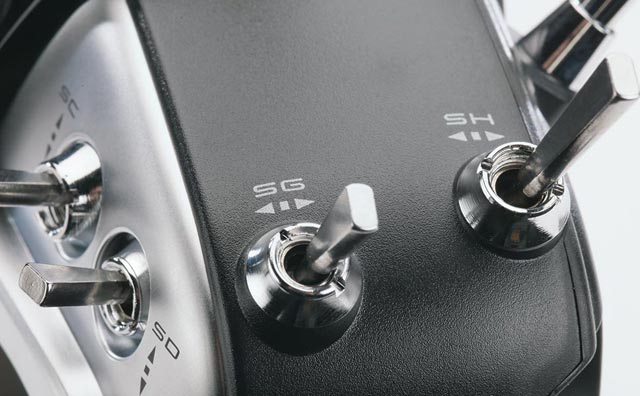

Six assignable three-position switches
One assignable momentary two-position switch
One assignable two-position switch
Comfortable rubber grips on the sides and back
Wide top switch spacing
Adjustable stick tension
Dual ball bearing gimbals
4 vibration warning types

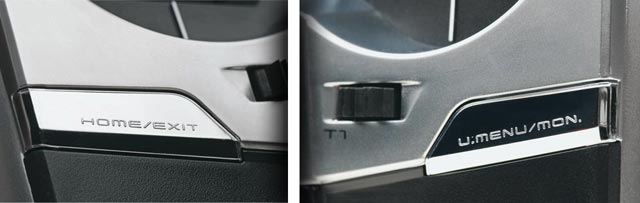

Home/Exit; User Menu/Servo Monitor buttons

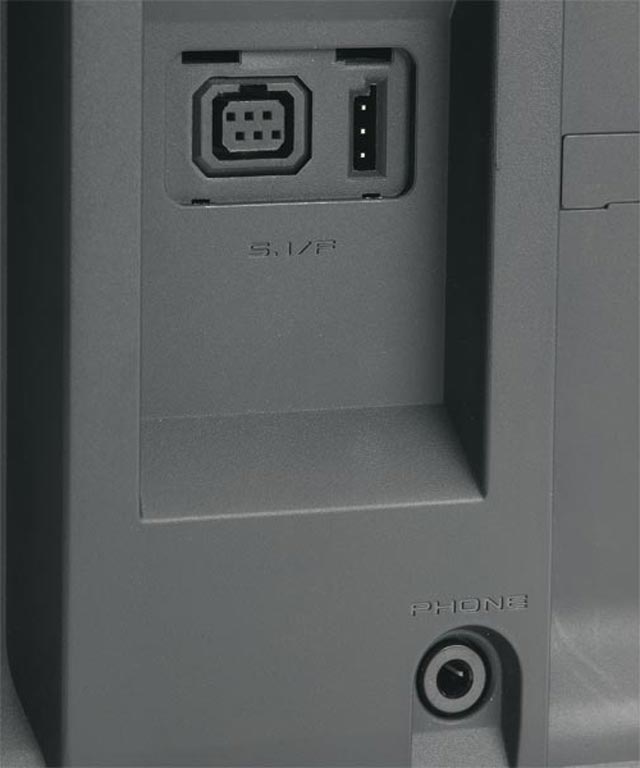

Audio earphone jack (for telemetry alarms)
6V 1800mAh NiMH battery pack
User stick calibration
Trainer system

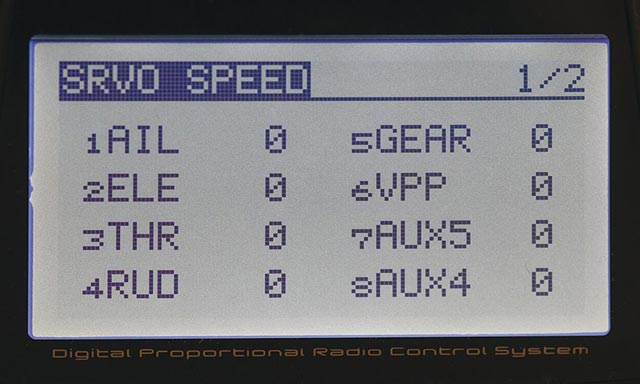

Servo speed adjust
5 programmable mixes
V-tail, Ailvator, winglet, motor mixing
Trim mix
Logic switch (condition switch only)
Internal programmer for S.Bus servos

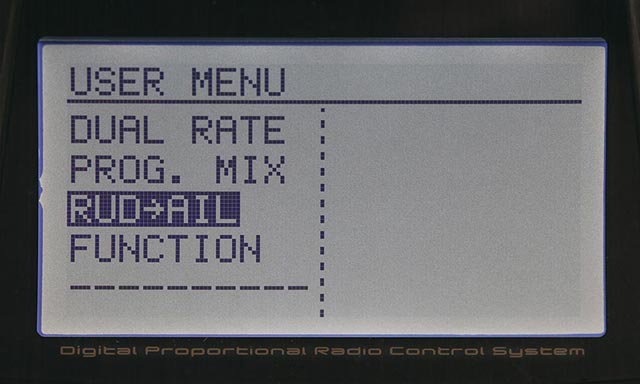

User menu
Servo monitor (neutral and moving tests)
2 count up/countdown timers
Integral timer
Model timer

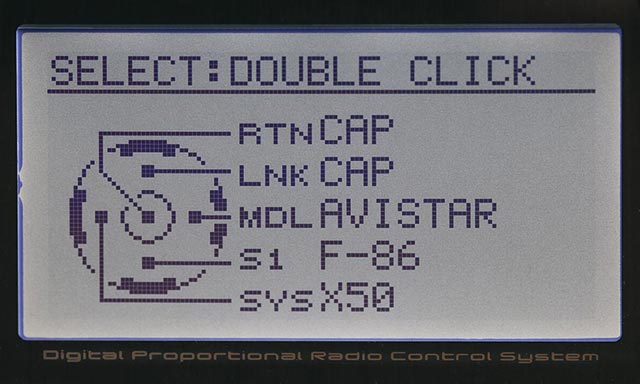

Quick model select

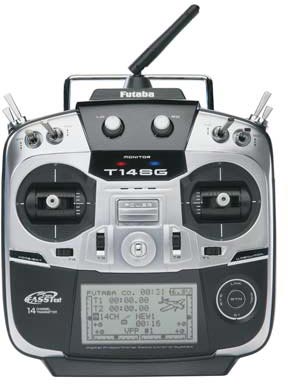

Futaba proudly introduces the 14SG, the only 14-channel system with revolutionary 2.4GHz FASSTest technology. It's also compatible with Futaba FASST and S-FHSS protocols, so you can fly with virtually any 2.4GHz air receiver Futaba produces.

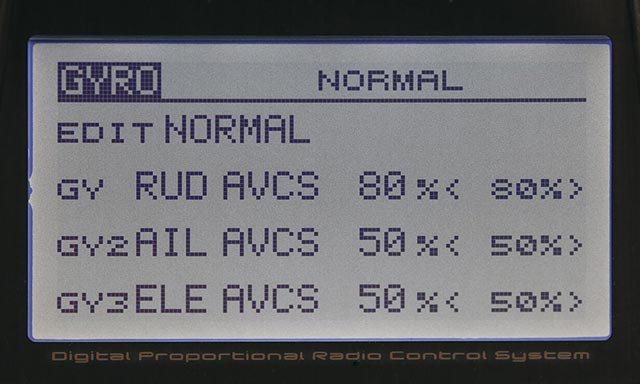

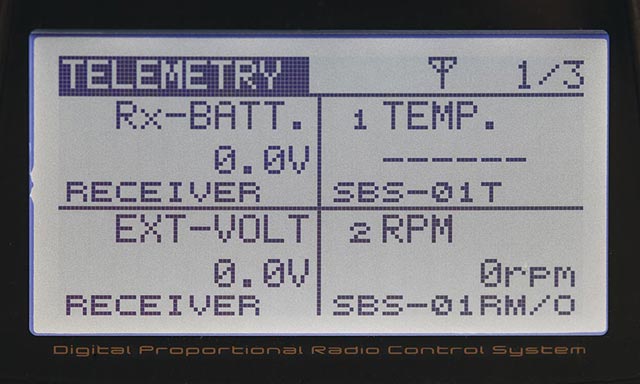

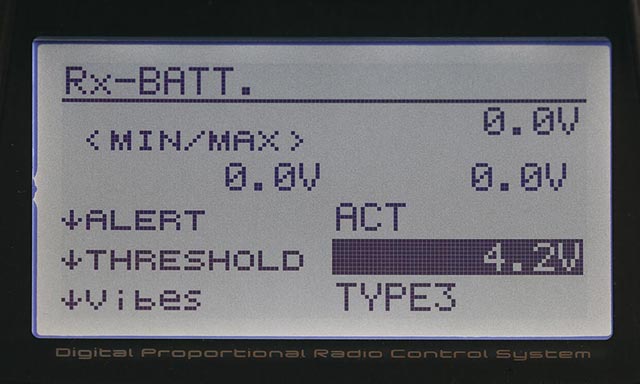

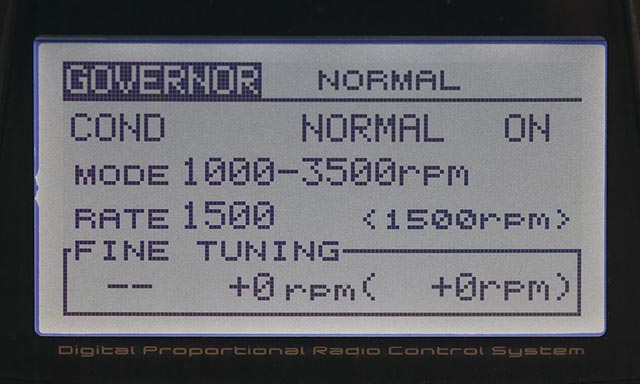

The 14SG can transmit and receive telemetry data. Install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SG's 3-axis gyro support — which makes the 14SG the perfect system for flybarless flight!

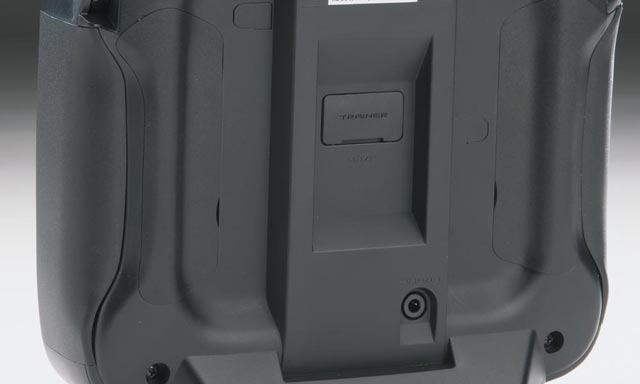

The innovations don't stop there. Turn the 14SG over, and you'll see the construction is as rock-solid as any other Futaba system. It's also very comfortable to use, thanks to rubber grips that help minimize flyer fatigue — an added bonus that pilots will appreciate.
The 14SG has so much to offer, we can't talk about everything here. To see everything that the 14SG can do, read on. . .
