FUT12KA

12KA 12-Ch 2.4GHz Air w/R3008SB Receiver

Product Info
FUTABA

FUT12KA
12KA 12-Ch 2.4GHz Air w/R3008SB Receiver
By FUTABA
$649.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 9-Ch & Up Spread Spectrum Aircraft Radio Systems
But only from... FUTABA
All items from... FUTABA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$649.99
Warehouse ?
StockStock availability for pick up
0
$649.99
Warehouse ?
0
$649.99
Store - Stratford ?
0
$649.99
Store - Edmonton ?
0
$649.99
Store - Mississauga ?
0
$649.99
Store - Ottawa ?
0
$649.99
Store - Oshawa ?
0
$649.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
12
Channels:
T-FHSS and S-FHSS
Modulation:
2.4 GHz
Band:
30 (Expandable with SD Card)
Model Memory:
R3008SB
Receiver Included:
47.3 mm
Receiver Length:
24.9 mm
Receiver Width:
14.3 mm
Receiver Height:
10.1 g
Receiver Weight:

FEATURES

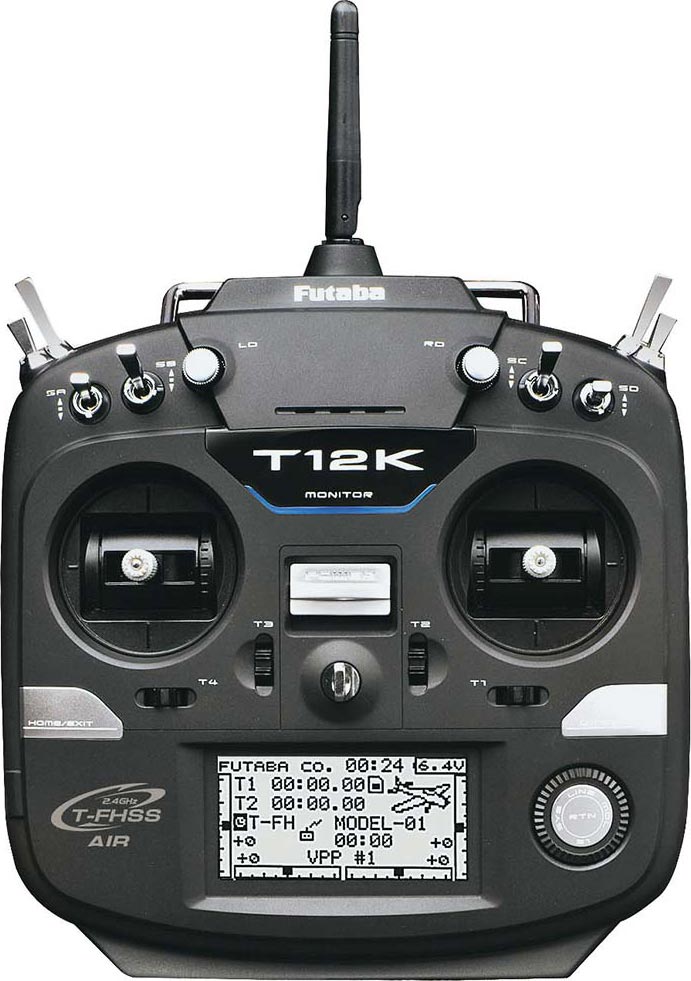

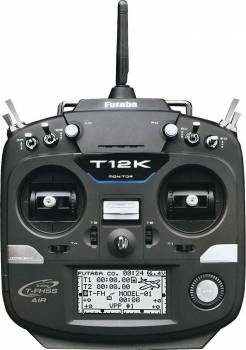

This is the airplane and heli 12K system with the R3008SB telemetry receiver included.

The 12K combines first-class performance with incredible versatility to create a system that's easy to operate, yet feature-packed! Available in systems perfectly matched for airplanes, helis and gliders, the 12K is also compatible with multi-rotors, so pilots get the best of all worlds.

Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers' needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions.

In addition to telemetry, the 12K can be used with S.Bus2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer.

Choose from airplane and heli 12K systems with the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized for their applications.

Transmitter Features:

  • Channels: 14 (12 proportional, 2 switched)
  • Compatible with T-FHSS and S-FHSS protocols
  • Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
  • Headphone plug, trainer port and S.Bus plug-in
  • S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
  • Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
  • Improved stick feel with adjustable lengths and tension
  • Dual rates/exponential
  • Included 6V 1800mAh NiMH battery and charger
  • Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up
  • Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
  • Vibration feature alerts pilots to various alarms and timers, in addition to sound
  • 10-character model naming
  • Expandable 30-model memory
  • 5 flight conditions (Helicopter and Glider model selections)
  • 5 customizable programmable mixes
  • Servo test and servo position display
  • Fuel mixing
  • Stick calibration
  • Servo speed
  • Logic switching

Airplane Features:

  • 6 wing types
  • 3 tail wing types
  • 5 flight modes
  • Pitch curve
  • Throttle curve
  • Throttle delay
  • Aileron differential
  • Flap setting
  • Aileron to camber flaps
  • Aileron to brake flaps
  • Aileron to rudder
  • Rudder to aileron
  • Camber mix
  • Elevator to camber
  • Camber flap to elevator
  • Butterfly function
  • Trim mix
  • Air brake
  • Gyro mix
  • V-Tail
  • Ailevator (dual elevator)
  • Winglet
  • Motor speed
  • Rudder to elevator
  • Snap roll
  • Multi-engine functionality
  • Airbrake

Helicopter Features:

  • Six swash types
  • Pitch curve and pitch trim
  • Throttle curve and throttle hover trim
  • Throttle hold
  • Swash ring
  • Pitch to needle
  • Pitch to rudder (revolution mixing)
  • Gyro mixing
  • Governor mixing
  • Timer settings
  • Throttle percent timer

Glider Features:

  • Glider-specific functions
  • 6 wing types
  • 3 tail wing types

Multirotor Features:

  • Throttle stick position warning
  • Gyro Sense
  • Flight Mode
  • Throttle Curve
  • Throttle Delay

R3008SB Receiver Features:

  • T-FHSS protocol
  • Dual Antenna Diversity
  • S.Bus/S.Bus2 ports (S.Bus2 port for bidirectional telemetry sensors)
  • 8-channel PWM conventional ports
  • High voltage
  • Battery fail-safe
  • External voltage port: 0-70V DC
  • Power requirement: 4.8-7.4V
  • Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
  • Weight: 0.36 oz (10.1 g)
