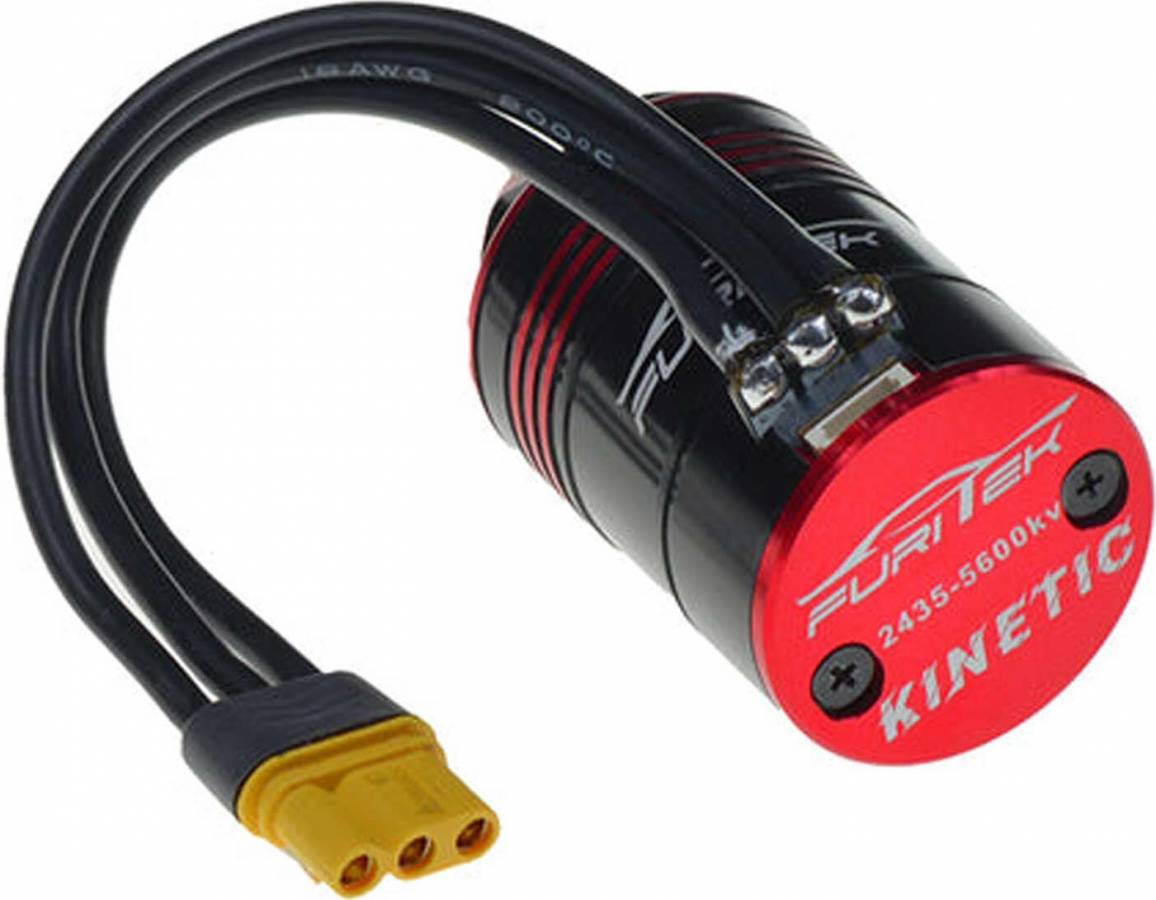

Brushless Sensored Motor Kinetic 2435 5600kV 1/18 1/12
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Electric Car Motors Brushless Micro
But only from... FURITEK
All items from... FURITEK
But only from... FURITEK
All items from... FURITEK
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushless
Brushed/Brushless:
Sensored
Sensored/Sensorless:
5600 KV RPM/Volt
Motor Kv:
4
Poles:
24 mm
Can Diameter:
35 mm
Can Length:
2 mm
Shaft Diameter:
12 mm
Shaft Length:
54 g
Weight:
30
Max Surge Current:
2-3 cells
LiPo Cells:
FEATURES
- Sensored 4 Pole hi-torque motor design
- High purity and higher temperature single copper windings
- Lower copper losses, very good heat dissipating
- Super thin (0.2mm) stator laminations
- Japansese NMB High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
click image to enlarge

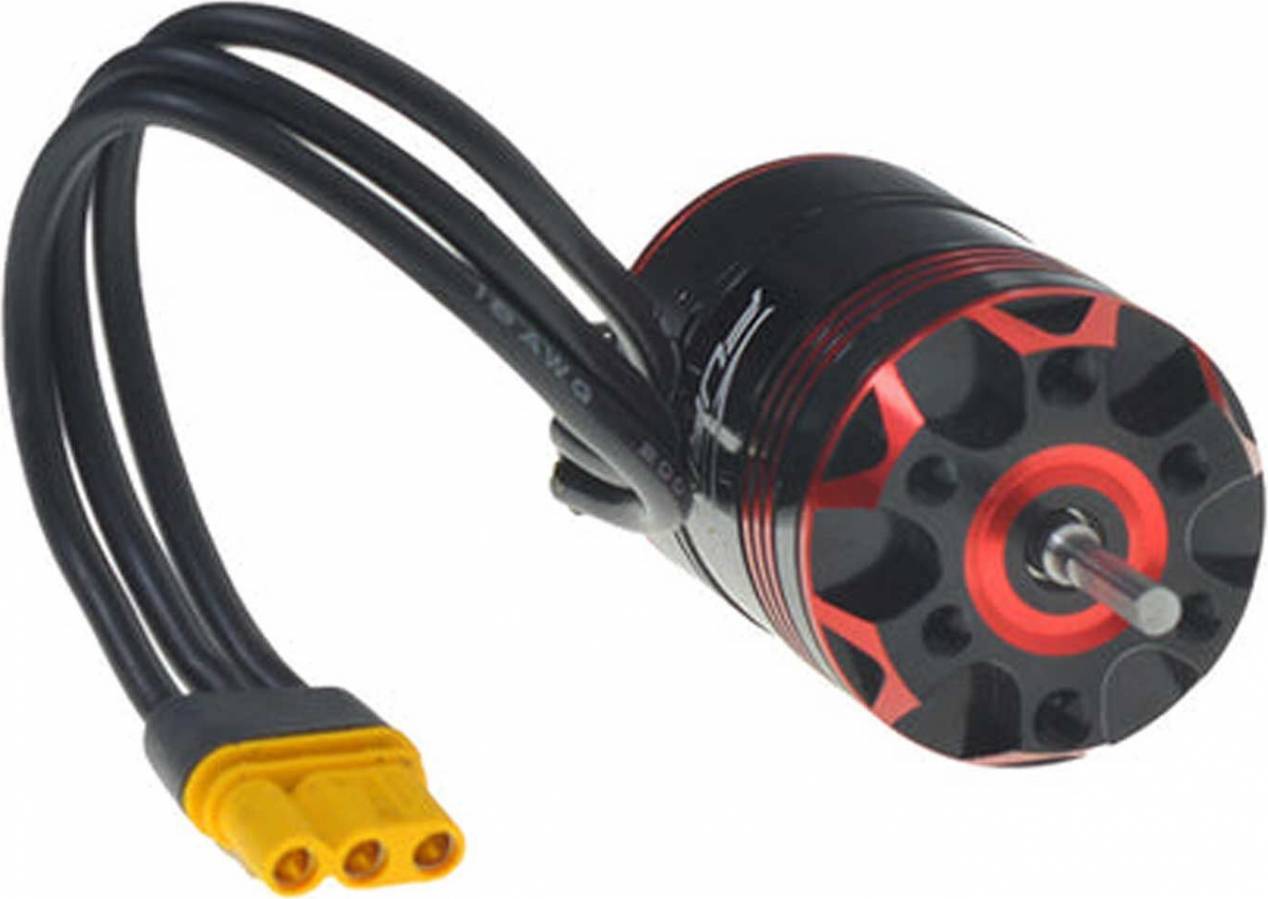

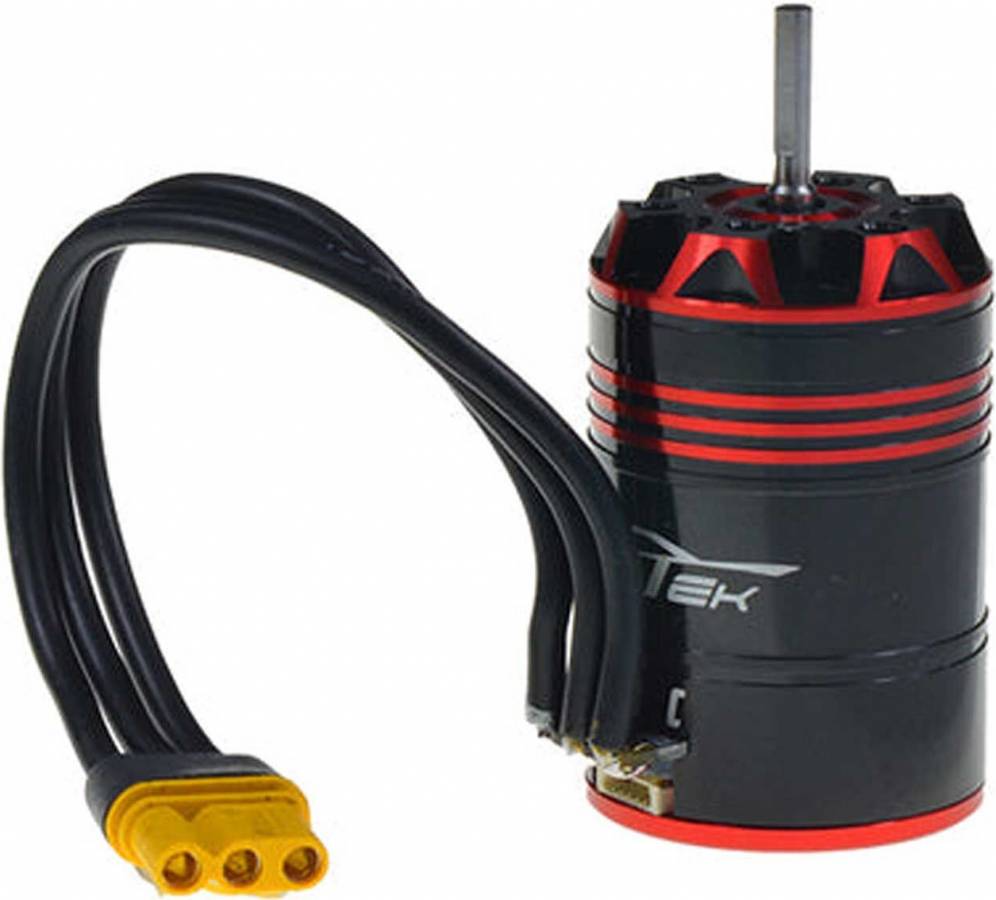

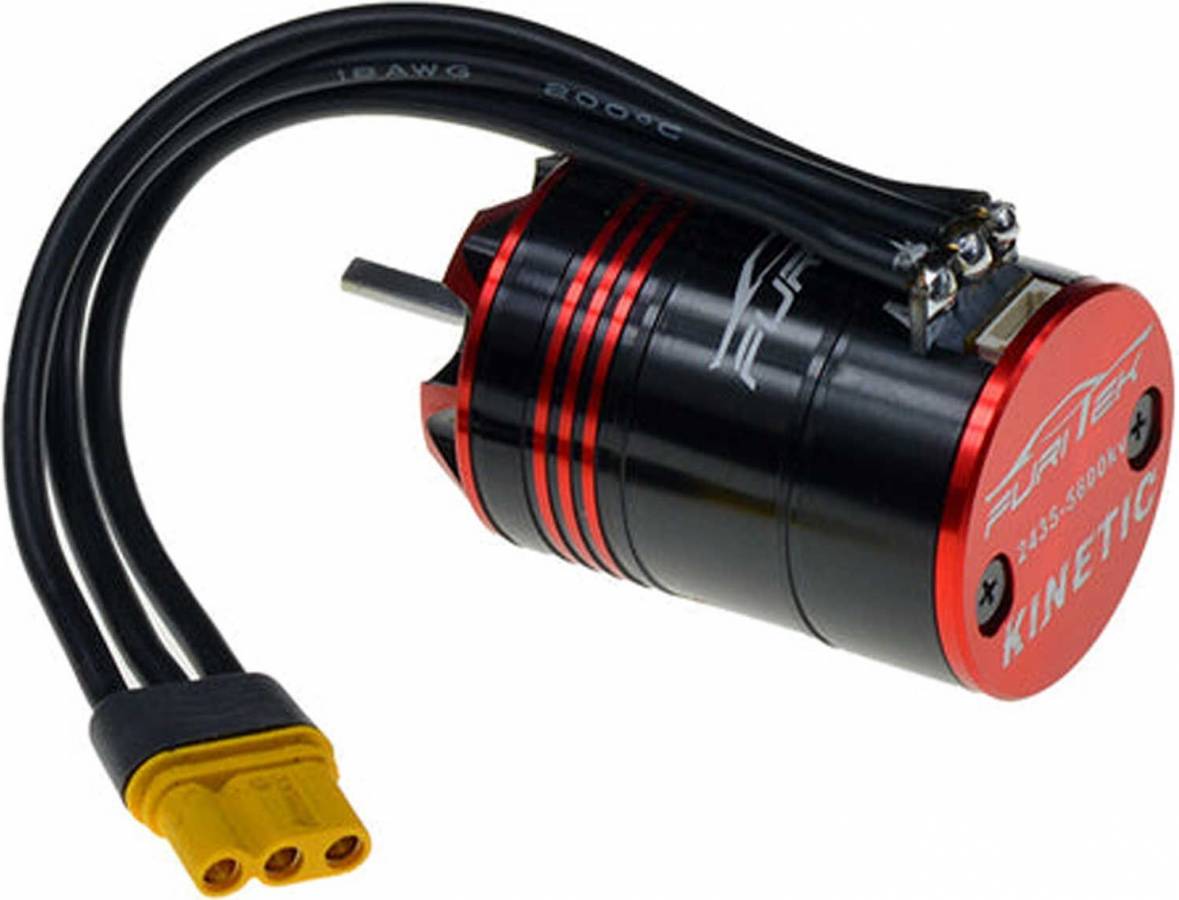

ADDITIONAL PHOTOS
|
|
|
FRU2579
