Furitek Komodo 2208-2500kV Brushless Motor - Axial UTB18 Capra
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Electric Car Motors Brushless Micro
But only from... FURITEK
All items from... FURITEK
But only from... FURITEK
All items from... FURITEK
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushless
Brushed/Brushless:
2500 KV RPM/Volt
Motor Kv:
14
Poles:

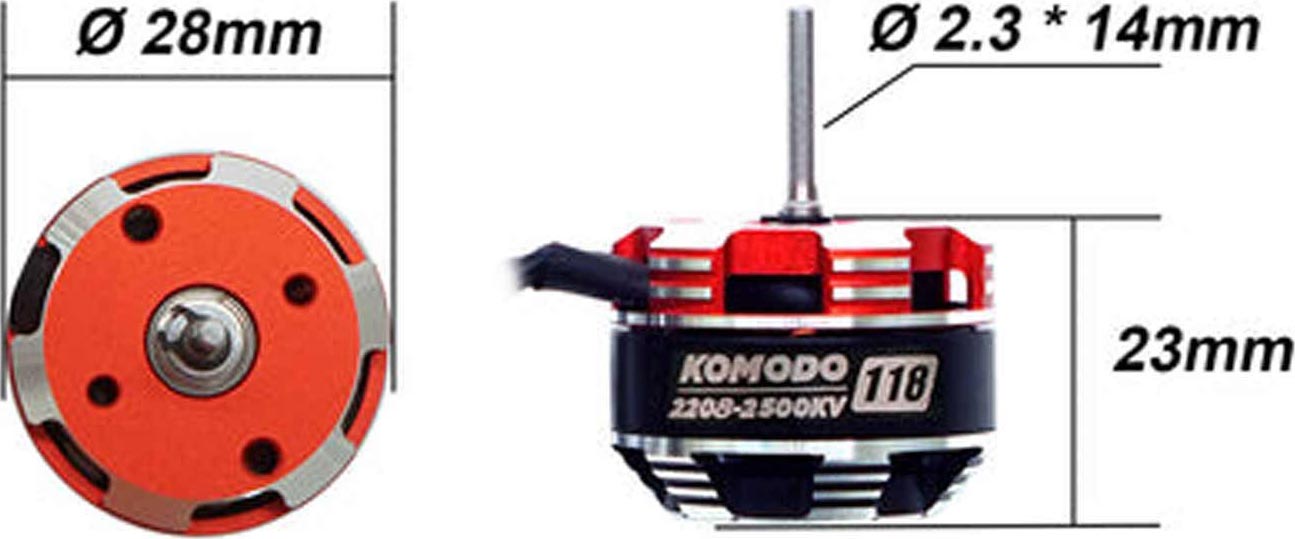

28 mm
Can Diameter:
23 mm
Can Length:
2 mm
Shaft Diameter:
14 mm
Shaft Length:
39.5 g
Weight:
25 A
Max Efficiency Current:
2-4 cells
LiPo Cells:
FEATURES
- 14 Pole 12 Slot Hi-Torque Motor Design
- High Purity And Higher Temperature Single Copper Windings
- Precision Balanced Rotor, Smoothness For Best Reliability
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- Precision-Engineered For Maximum Energy Conversion

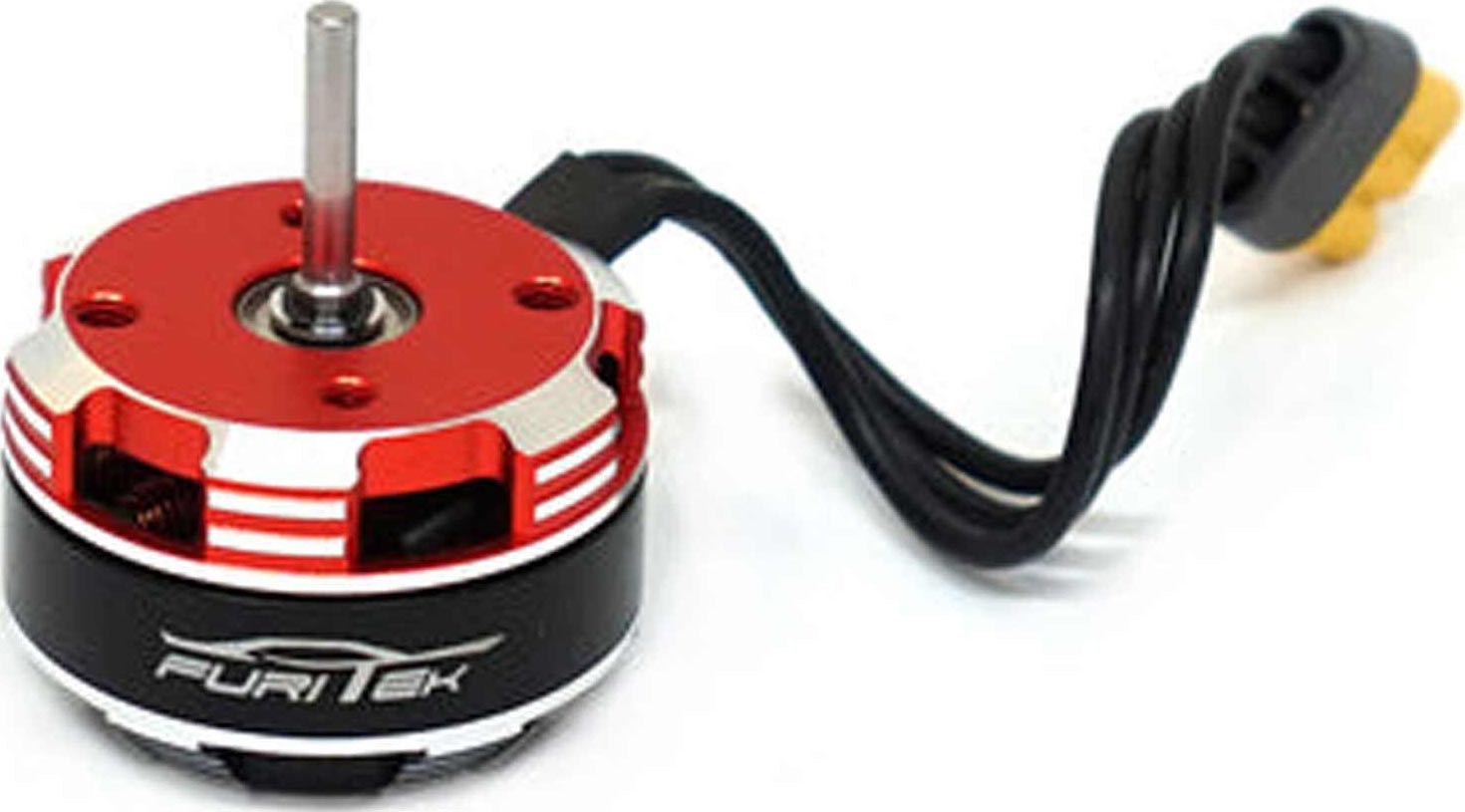

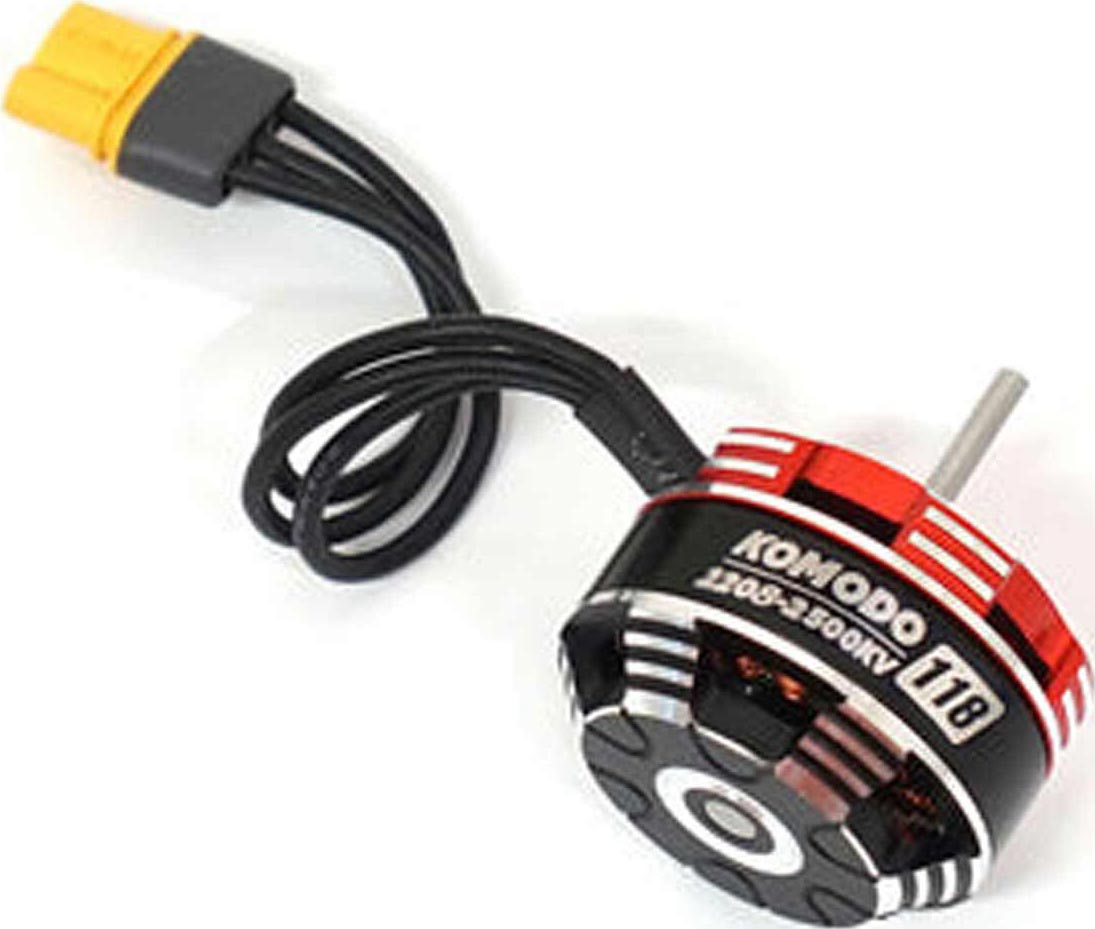

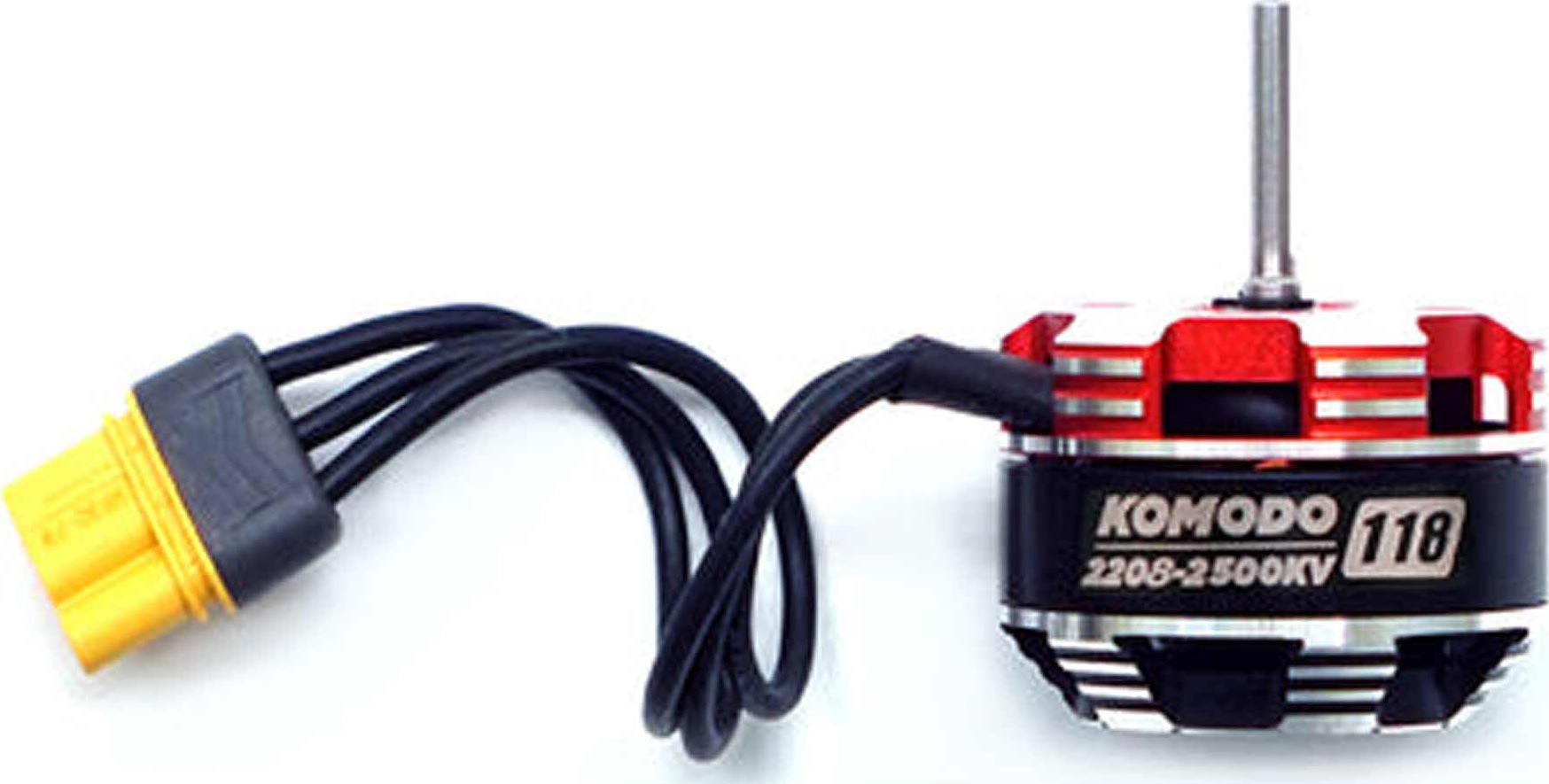

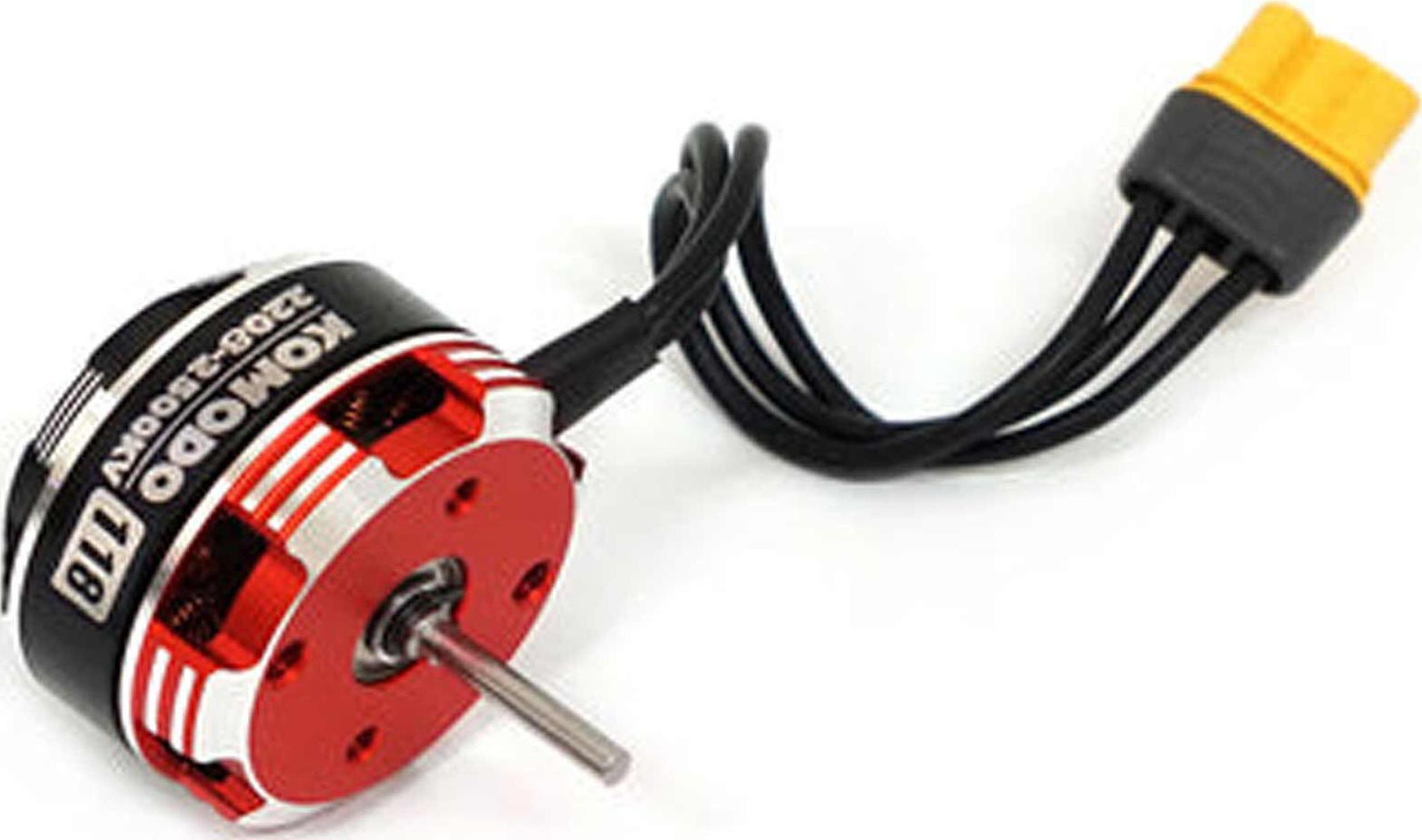

The new Furitek KOMODO 2208 2500KV Brushless motor is designed stronger specially for Axial UTB18 Capra crawlers. Axial UTB18 Capra is a lot bigger and heavier than other 1/18 crawlers therefore, to accommodate for bigger weight, we design a new Furitek KOMODO 2208 for the UTB18 Capra based on our famous KOMODO 2204 for 1/24 and normal 1/18 crawlers. Super smooth, a lot of power, this outrunner brushless motor looks awesome on the UTB18 Capra.
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
|
8936037008202 8936037008202
FRU2345
