FTSBK560B

FT Sea Angel Kit WR Foamboard

FLITE TEST

FTSBK560B
FT Sea Angel Kit WR Foamboard
By FLITE TEST
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Park Flyer Electric Aircraft Kits
But only from... FLITE TEST
All items from... FLITE TEST


 Inventory Status Legend
StockStock availability for on-line ordering
0
$74.99
Warehouse ?
StockStock availability for pick up
0
$74.99
Warehouse ?
0
$74.99
Store - Stratford ?
0
$74.99
Store - Edmonton ?
0
$74.99
Store - Mississauga ?
0
$74.99
Store - Ottawa ?
0
$74.99
Store - Oshawa ?
0
$74.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Prop Slow Flyer - 9 x 4.7
$4.99

Flite Test Radial Brushless Motor 2218B-1180kV V2
$49.99

Flite Test Gremlin Decal 10.5" Vinyl Blue
$7.99

Flite Test Gremlin Decal 10.5" Vinyl Red
$7.99
SPECIFICATIONS
42 in
Wingspan:
325.4 sq in
Wing Area:
31 in
Length:
22.4 oz
Weight:
6 or more Channels
Radio Requirements:
6 or more Channels
Receiver Requirements:
Flite Test Power Pack C
Brushless Motor Requirements:
30 Amp
ESC Requirements:
3S 11.1V 1300-2200mAh w/XT-60 connector
Battery Requirements:
2 in
Center of Gravity (From Leading Edge):

FEATURES
  • Laser-cut Foam Airframe

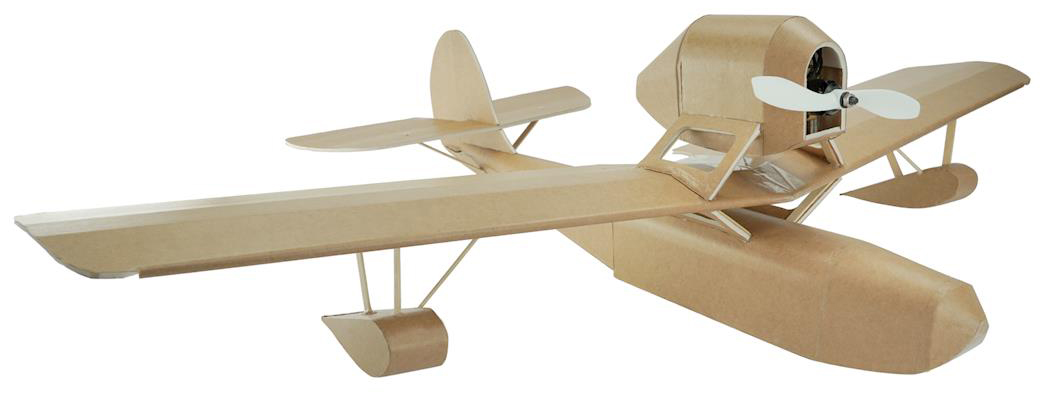

This is the FT SeaAngel. The Sea Angel is a unique aircraft modeled after Porco Rosso’s plane from the 1992 Hayao Miyazaki anime film made by Studio Ghibli as well as the 1925 racing plane, the Italian Macchi M33. It's sure to be a head-turner wherever you fly it.

The SeaAngel is a scale flyer that can be can be flown 3-channel or 4-channel with optional ailerons. The build process is challenging, yet rewarding so if you are new to building this might not be the plane to start with. For a top-mounted motor design, the plane balances well. It is a good first seaplane and can help you learn to correct for torque when increasing throttle.

The SeaAngel is sure to be a conversation starter and a great way to make memories with friends and family.

This plane was designed as a collaboration between Josh Bixler, Andres Loo, and Jeremy Andrew Davis.

Kit Includes:

  • Laser-cut Foam Airframe
  • Firewall
  • Push Rods
  • Control Horns
  • 9x4.5 CCW propeller (Required as the Power Pack C - comes with 10x4.5 which will not fit)
  • Specification Sheet
  • A 12in ESC to Motor Extension Wire Kit

Needed to Complete:

  • (1) Flite Test Power Pack C
  • (1+) Battery: 3S 11.1V 1300-2200mAh w/XT-60 connector
  • (1) 2.4GHZ 6+ Channel Radio System (Radio & Receiver)
  • Misc. Building Supplies.
