FTSBK460B

FT Bravo Kit WR Foamboard

FLITE TEST

FTSBK460B
FT Bravo Kit WR Foamboard
By FLITE TEST
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Park Flyer Electric Aircraft Kits
But only from... FLITE TEST
All items from... FLITE TEST


 Inventory Status Legend
StockStock availability for on-line ordering
0
$42.99
Warehouse ?
StockStock availability for pick up
0
$42.99
Warehouse ?
0
$42.99
Store - Stratford ?
0
$42.99
Store - Edmonton ?
0
$42.99
Store - Mississauga ?
0
$42.99
Store - Ottawa ?
0
$42.99
Store - Oshawa ?
0
$42.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Dalprop Bullnose Props (2CW/2CCW) 6045 Red
$4.99

Dalprop Bullnose Props (2CW/2CCW) 6045 Green
$4.99

Flite Test Gremlin Sticker 5" 5-Pack
$7.99

FT Decal 20" Scallops Blue
$7.99
SPECIFICATIONS
24 in
Wingspan:
230 g
Weight:
143.4 sq in
Wing Area:
10.4 oz/sq ft
Wing Loading:
27.3 in
Length:
6 or more Channels
Radio Requirements:
6 or more Channels
Receiver Requirements:
Flite Test F Radial or 2204-2205 Size; 2400kV Minimum
Brushless Motor Requirements:
20-30 Amp
ESC Requirements:
3S 11.1V LiPo 800mAh
Battery Requirements:

FEATURES
  • Laser-cut Foam Airframe

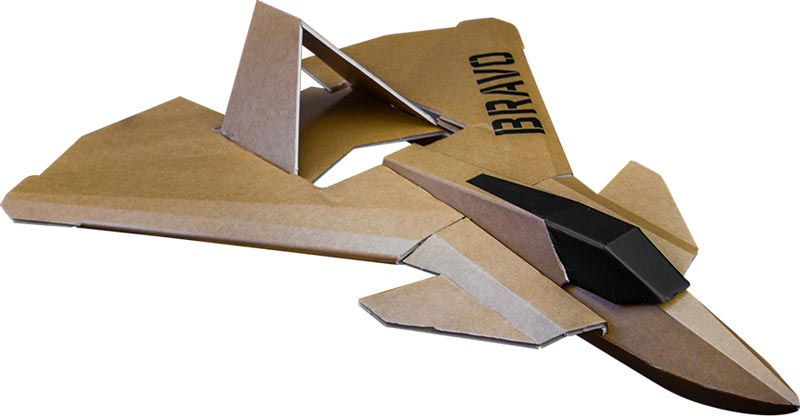

The Flite Test Bravo was designed to be a quick and challenging to fly build, this is the fastest and most agile plane of the Triad series. The FT Bravo is compatible with the FT Alpha and FT Charlie kits. Each airplanes’ wings are built to be removable from the fuselage, and can be swapped with any of the other Triad planes, giving the builder essentially 9 planes to choose from.

The swapping of wings takes less than a minute and is supported by rubber bands!

There is no need to re-calibrate the center of gravity on the aircraft after swapping, the CG remains the same no matter what combination you configure. This is great for the flight line and swapping with others, making it an enjoyable experience for all.

Flite Test wants you to have an amazing experience both in building and flying. This kit comes with everything you need to complete the FT Bravo Aircraft. Push-rods, control horns, firewalls and all other items needed to make this airframe electronics ready are included in the kit. If you choose to purchase our power pack F and a battery, balance, flight performance and assembly will be quick and easy.

Power Pack Compatibility:

Flite Test Airplanes are all designed around the use of various "Power Packs" which include an inexpensive Motor, ESC, Servo, & accessory package to complete each aircraft!

Kit Includes:

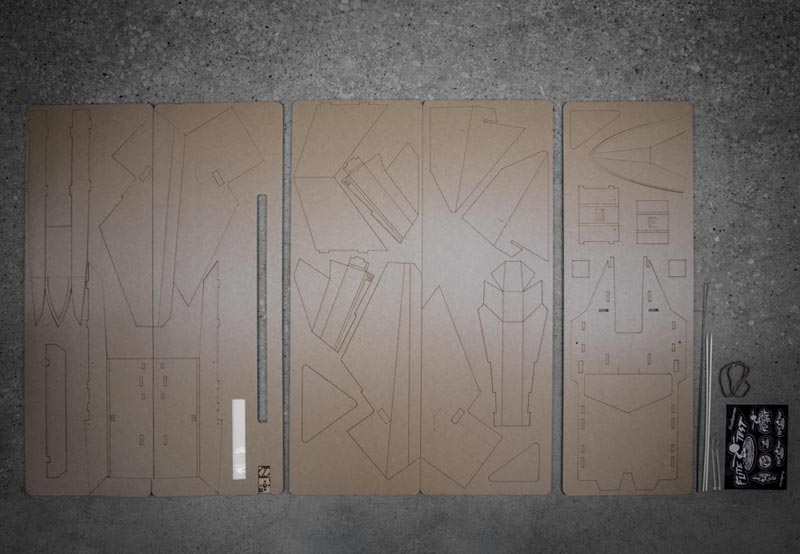

  • Laser-cut Foam Airframe
  • Firewall
  • Push Rods
  • Control Horns
  • BarBQ Skewers
  • Velcro
  • Throw Gauge
  • Rubber Bands
  • Zip Ties
  • Specification Sheet

Needed to Complete:

  • (1) Brushless Motor: Flite Test F Radial or 2204-2205 Size; 2400kV Minimum
  • (1+) Propellers: 6x4.5
  • (1) ESC: 20-30 Amp
  • (1+) Battery: 3S 11.1V LiPo 800mAh
  • (2) Servos: ~5 Gram Micro Servos
  • (1) 2.4GHZ 6+ Channel Radio System (Radio & Receiver)
  • Misc. Building Supplies.
