SPECIFICATIONS
46.3 mm
Length:
26.6 mm
Width:
14.2 mm
Height:
14.8 g
Weight:
1-8 PWM Channels
Channels:
2.4 GHz
Band:
3.5V~10V
Voltage Range:
100mA@5V
Operating Current:
FEATURES
Strong anti-interference performance in ignition process
Higher precision of PWM
Lower latency on the PWM output
Support redundancy function
Smart Port enabled and support telemetry data transmission
1-8CH PWM or 9~16CH PWM from conventional channel outputs, 1-16CH from S.Bus port
RSSI Output on Board: Analog DC 0~3.3V
Operating Range: full range (>1.5km)
Firmware Upgradeable
Servo Frame Rate of 9ms (HS—High Speed Mode) or 18ms (FS—Normal Speed Mode)
Compatible with FrSky transmitters/transmitter modules in D8/D16 mode

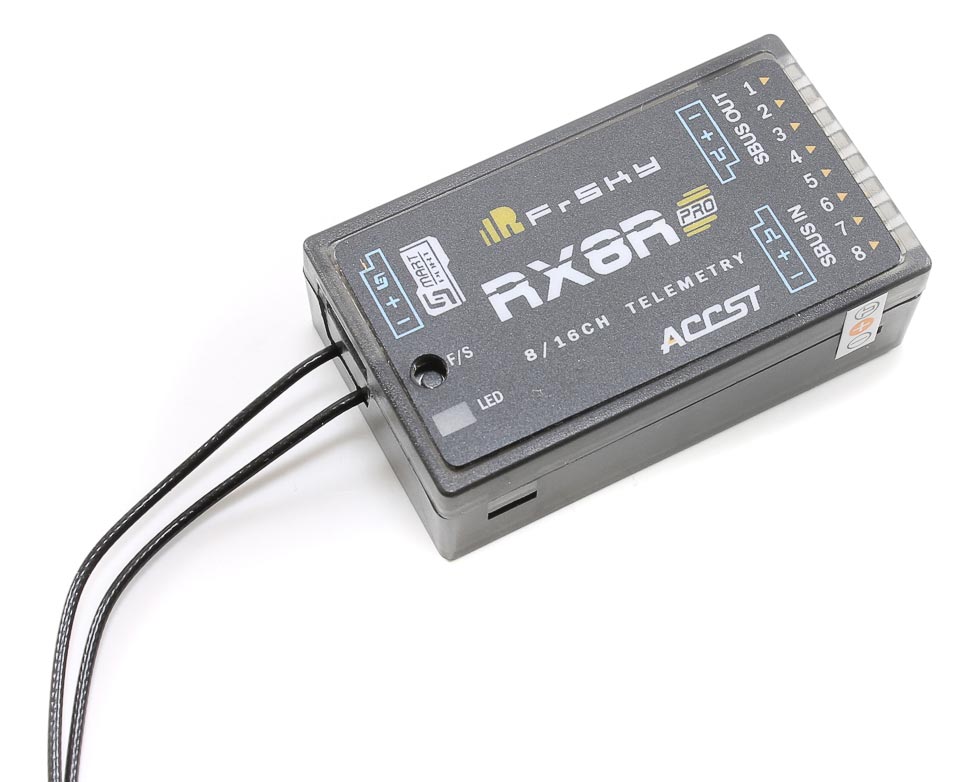

An upgraded version based on the RX8R receiver, it has all the same features including redundancy. The Pro version has higher precision and lower latency. It’s deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high speed mode. A feature that deserves mention is the decreased effect of interference caused by the ignition process.
