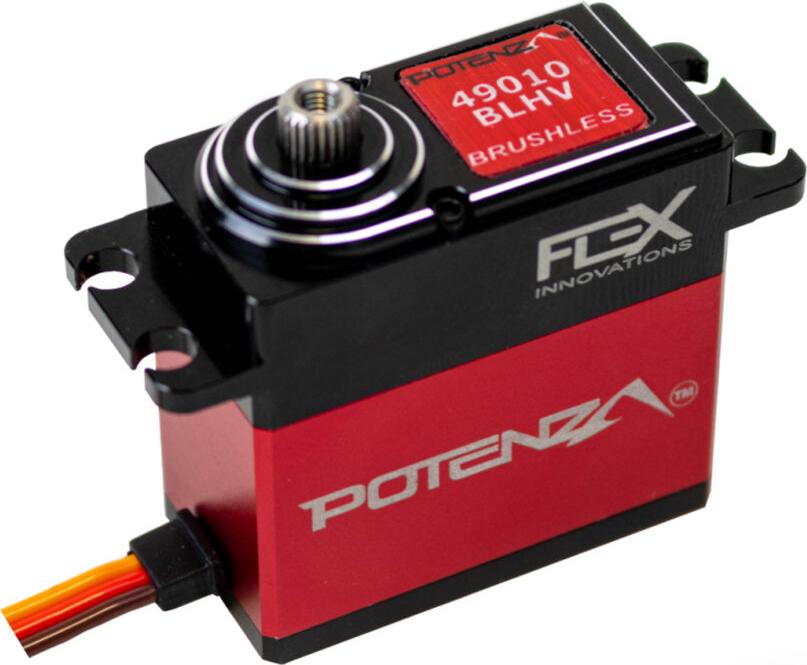

Potenza DS49010BLHV Brushless HV Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Servos Digital
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
High Voltage
Type:
JR
Connector Type:
54 mm
Length:
20 mm
Width:
45 mm
Height:
84 g
Weight:
Titanium
Geartrain:
Brushless
Motor Type:
5.0-8.4 v
Voltage Range:
35.3 kg-cm
Torque @ 7.4V:
0.1 sec/60°
Speed @ 7.4V:
FEATURES
HIGH VOLTAGE, BRUSHLESS, DIGITAL SERVO
Designed specifically for use in the Mamba 120cc & Edge 540 120cc and featured in the RV-8 70CC and Ultimate 70cc ARFSV’s!
High-Performance for today’s demanding applications!
Features:
- High Voltage for native 2S LiPo use (Recommended)
- Powerful and efficient brushless motor runs cool, draws little current and has no brushes to wear out!
- Titanium gears for super strength and minimal weight
- Low Dead-band digital amplifier for strong and precise control
- CNC Aluminum Case for strength and heat dissipation
- Ball Bearing for the output shaft
- Standard JR style Connector
click image to enlarge

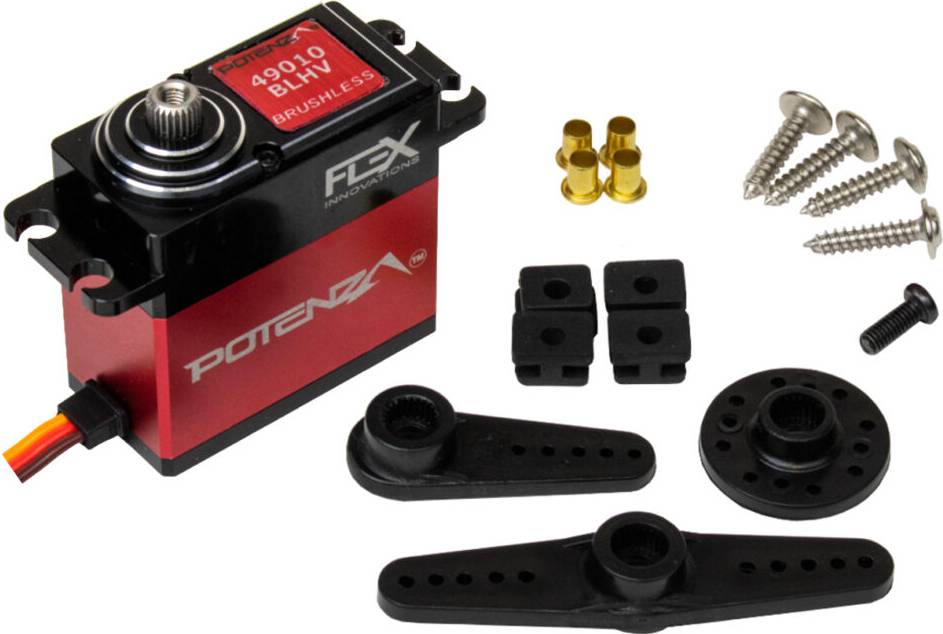

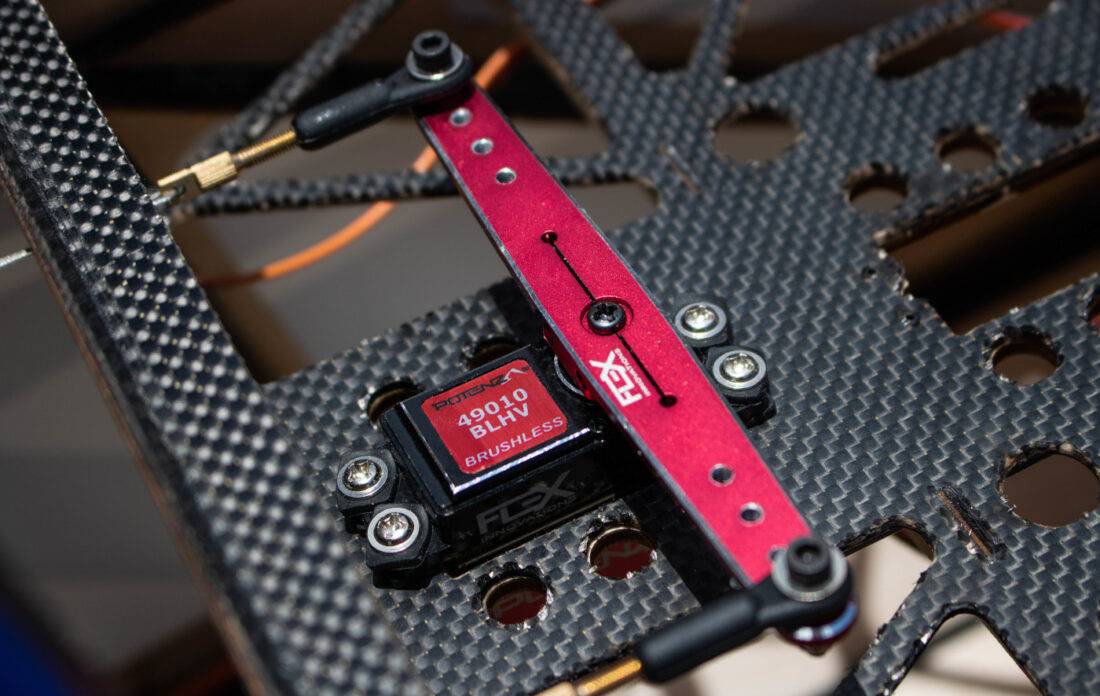

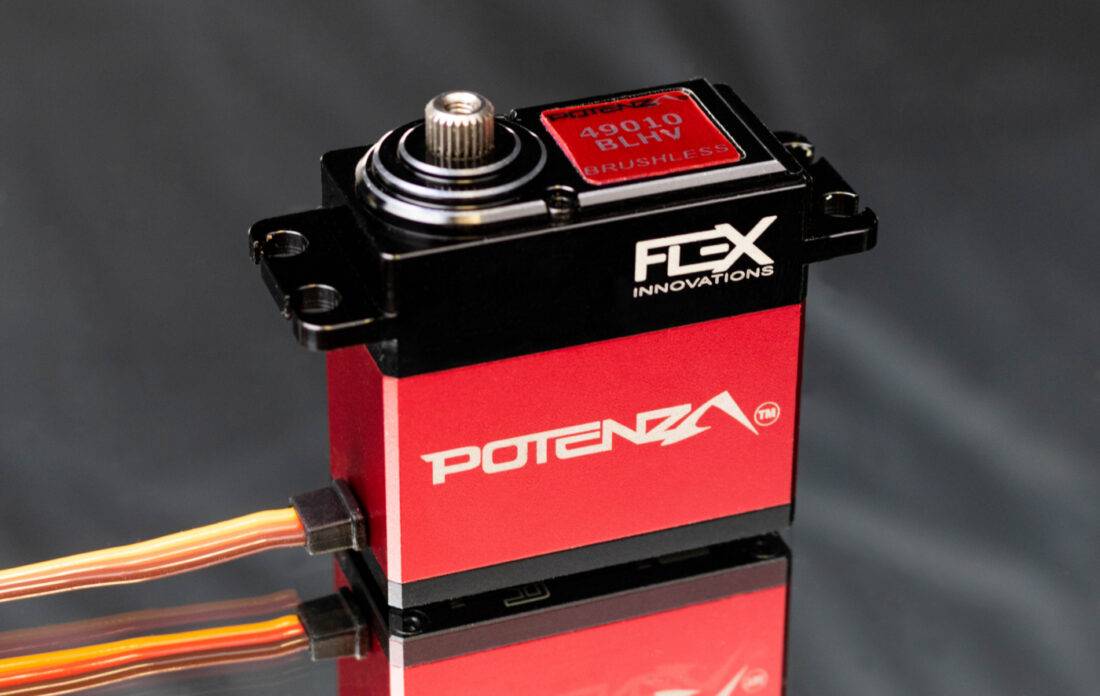

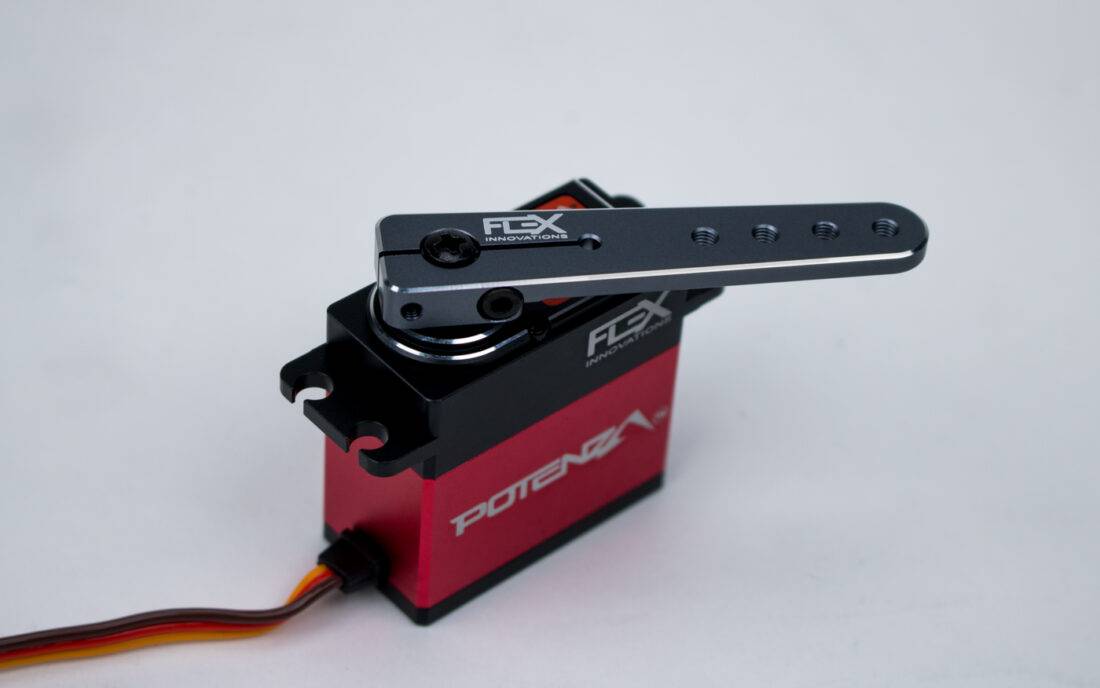

ADDITIONAL PHOTOS
|
|
|
|
FPZDS49010BLHV
