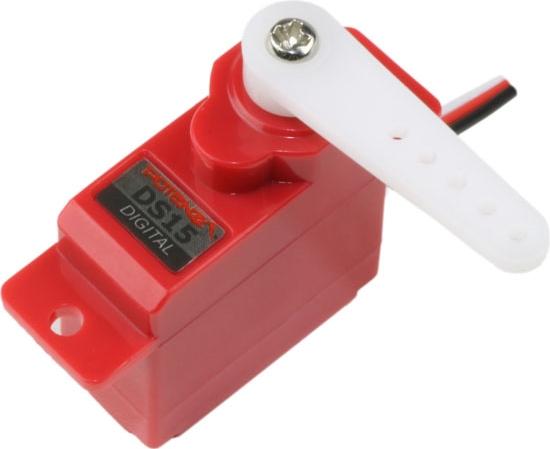

Potenza DS15 MG Digital Sub-Micro Servo w/165mm Wire
|
![]() ![]() |
More like this... Servos Digital
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
But only from... FLEX INNOVATIONS
All items from... FLEX INNOVATIONS
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Sub-Micro
Size Class:
Standard
Connector Type:
26 mm
Length:
12 mm
Width:
32 mm
Height:
17 g
Weight:
All Metal
Geartrain:
Coreless
Motor Type:
5.0-6.0 v
Voltage Range:
2.2 kg-cm
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
FEATURES
HIGH PERFORMANCE SUB-MICRO SIZE DIGITAL METAL GEAR 15G SERVO
Featured in the FlexJet and FlexJet TV!
Features:
- 165mm Lead Optimized for FlexJet an FlexJet TV
- Used in FlexJet and FlexJet TV for all flight surfaces
- 165mm Lead Optimized for F100-D
- Used in F-100D for elevators
- Metal gears for super durability.
- Low dead-band improved digital amplifier for strong and precise control
- Unbeatable value; compare these features, performance, and price
- Standard Servo Connector
- Optimized for 5v BEC operation
PRODUCT RESOURCES
FPZDS15B
