The Fat Shark Transformer is a revolutionary new display system that can transform into three common FPV viewing devices; monitor, binocular goggles and single panel headset.
HD Diversity Monitor (FAT1101)
The heart of the system is a compact diversity monitor with a high luminosity HD LCD screen (FSV1102). The display can be tripod mounted or hand held for directly viewing wireless analog video (or HD sources via the HDMI port). It’s a great way to test FPV before committing to full immersion and a convenient way to follow the track side action!

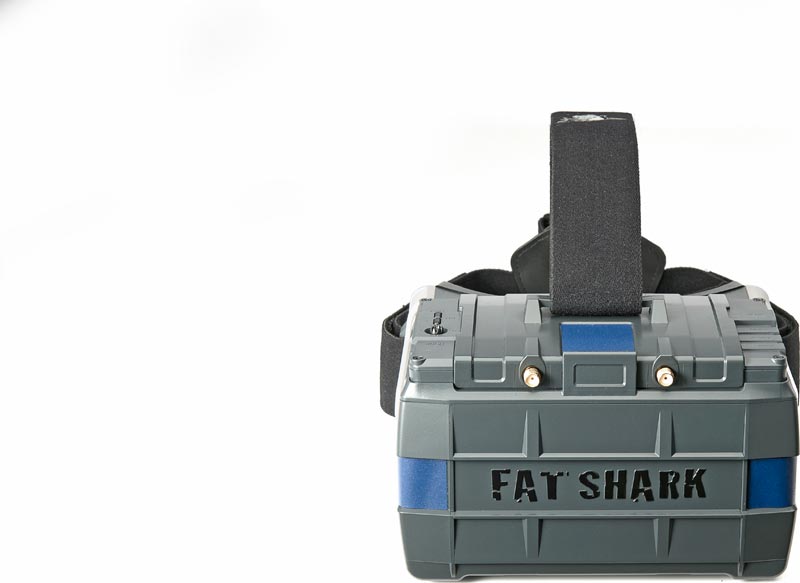

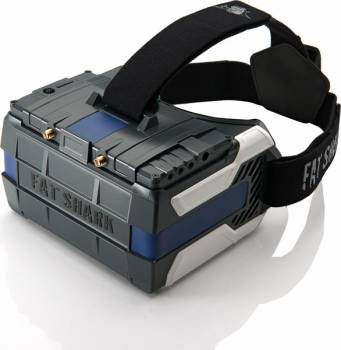

Compact Single Panel Headset (FAT1103)
The Full Panel Viewer transforms the Transformer HD monitor (not included) into an HD goggle with the cost benefit of a single panel design but in a form and comfort factor closer to micro display type goggles. The patented folded optics allow both eyes to converge onto the single display in a viewer that is less than half the size of all previous single panel style headsets. A bottom mounted access panel can be opened to change the optics for different magnifications (sold separately).
Optional Immersive FPV Goggle (FAT1102)
Set your Transformer HD monitor into binocular mode and snap it into the optional binocular viewer to transform it into a massive 55 degree FOV goggle for mind blowing immersive flight! The viewer has adjustable focus and adjustable IPD (inter-pupillary distance) for unparalleled viewing comfort and adjust ability. For use with Transformer HD monitor in analog mode only (for HD resolution display, select full panel viewer).
SPECIFICATIONS: (FAT1101)
– 720p HD LCD display
– High Luminosity (400 cd/m2)
– NTSC/PAL Auto Selecting
– High definition media interface 720p support
– 5G8 32ch antenna diversity receiver
– DCin: 7-13V (2S/3S)
– 500mA@7.4V(RF mode) /320mA@7.4V (AV mode)
SPECIFICATIONS: (FAT1103)
– FOV 47°
– Fixed IPD (55 – 76mm)
– Interchangeable optics (sold separately)
