EVOE40GX

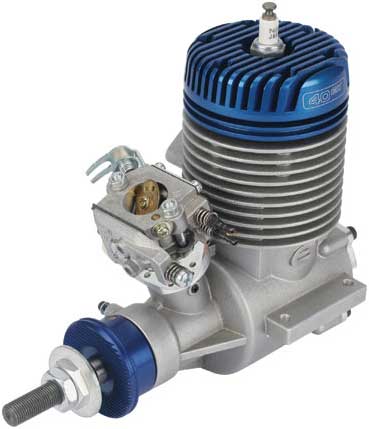

Evolution 40GX Gas Engine

EVOLUTION

EVOE40GX
Evolution 40GX Gas Engine
By EVOLUTION
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Gas Aircraft Motors
But only from... EVOLUTION
All items from... EVOLUTION


 Inventory Status Legend
StockStock availability for on-line ordering
0
$579.99
Warehouse ?
StockStock availability for pick up
0
$579.99
Warehouse ?
0
$579.99
Store - Stratford ?
0
$579.99
Store - Edmonton ?
0
$579.99
Store - Mississauga ?
0
$579.99
Store - Ottawa ?
0
$579.99
Store - Oshawa ?
0
$579.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
LCD Digital Micro-Tach
$49.99

Pitts Muffler Inv - Evo 35GT
$94.99

Washer (2) 25/35GT2 40GX
$2.69

Washer 35GT2 40GX
$4.49
Gasket Carburetor (2) 26/35GT 40GX
$4.49

Rear Cover (2.15) 35GT 40GX
$42.99

Cylinder Head Screws (2.15) 35GT 40GX
$5.99

Silencer System Complete 35GT/2 40GX
$108.99
SPECIFICATIONS
2-stroke Gasoline Engine
Type:
2.42 cu in
Displacement:
38.0 mm
Bore:
35.0 mm
Stroke:
51.2 oz
Weight:
20 x 8 to 22 x 10
Prop Range:
1,500 to 9,500 rpm
RPM Range:
Gasoline w/oil mix 40:1
Fuel:
182 x 84 x 118 mm
Mounting Dimensions:
Walbro 2- Needle
Carb Type:

FEATURES
  • More power and less weight than the 35GT2
  • Easy-to-use spring-loaded choke greatly simplifies the start up
  • Electronic ignition works with 2-cell 7.4V non-regulated Li-Po packs

If you enjoy flying large 1.80- to 2.20-sized sport and scale airplanes, Evolution’s 40GX is the perfect powerhouse. The 40cc gas engine includes an advanced electronic ignition system that is compatible with 2-cell 7.4V Li-Po battery packs. It uses relatively little fuel and features an innovative spring-loaded choke design.

This purpose-built engine brings the clean and economical operation of gas to any 1.20- or 1.80-size sport or scale airplane.

The Evolution 40GX is part of Evolution’s outstanding line of gasoline powerplants. Every Evolution engine is purpose-built for model airplanes. Superiority porting technology, Walbro carburetors, ball-bearing supported crankshafts and modern electronic ignition systems are all hallmarks of the line. As with all Evolution engines, the 40GX engine is backed by Horizon Hobby’s unmatched customer service and quality assurance.
