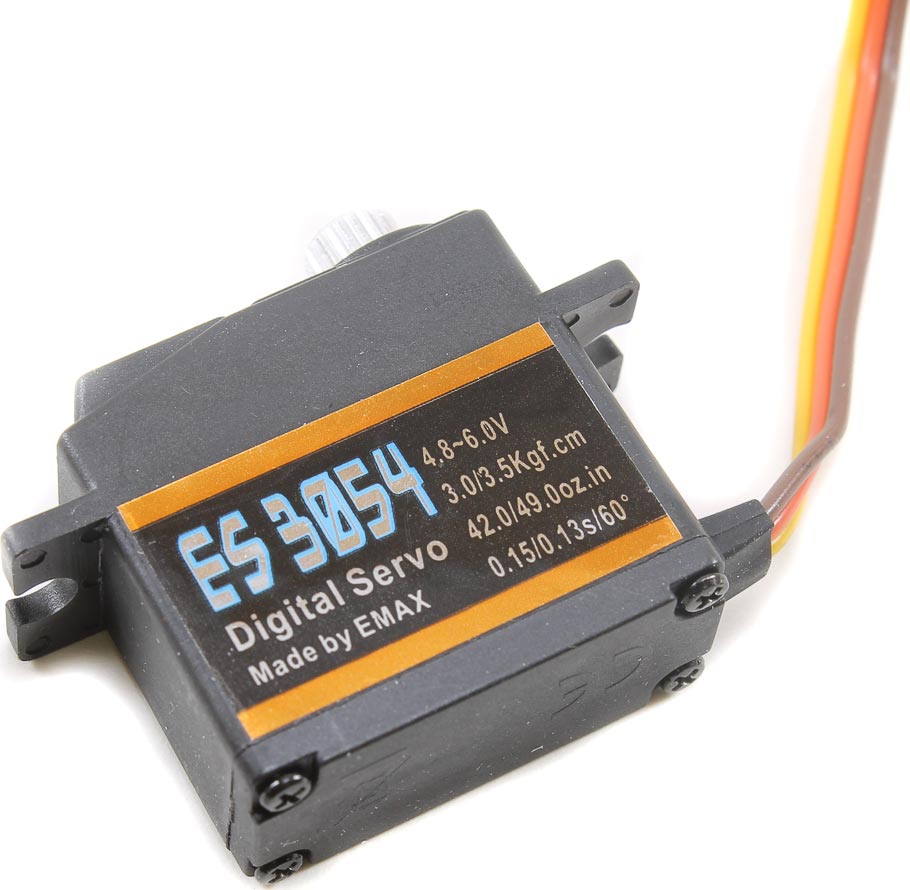

Digital Servo 17g Metal Gear
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Bearing
Bearing/Bushing:
23 Tooth
Output Spline:
28.45 mm
Length:
13 mm
Width:
31.10 mm
Height:
17 g
Weight:
Metal
Geartrain:
4.8-6.0 v
Voltage Range:
3 kg-cm (41.8 oz-in)
Torque @ 4.8V:
0.15 sec/60°
Speed @ 4.8V:
3.5 kg-cm (48.61 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
