Analog Servo 8.5g Plastic Gear
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Universal
Connector Type:
23 mm
Length:
11.5 mm
Width:
24 mm
Height:
8.5 g
Weight:
Nylon
Geartrain:
4.8-6.0 v
Voltage Range:
1.5 kg-cm (21 oz-in)
Torque @ 4.8V:
0.12 sec/60°
Speed @ 4.8V:
1.8 kg-cm (25.2 oz-in)
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
FEATURES

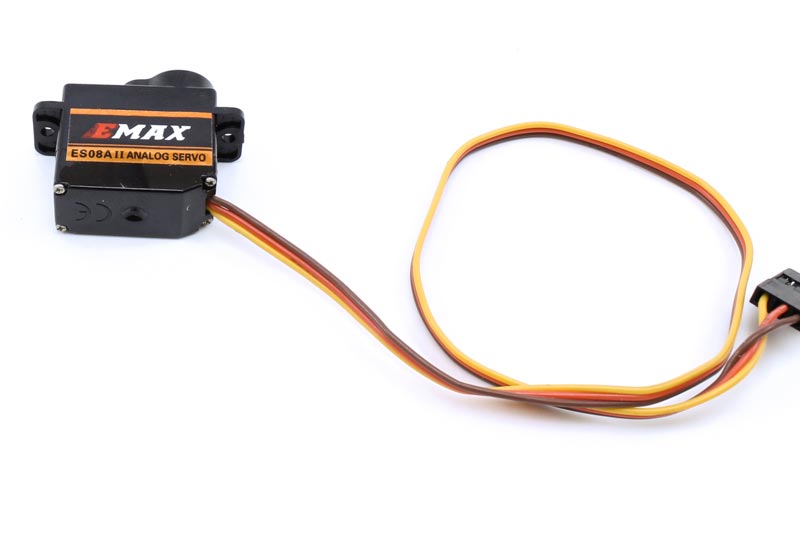

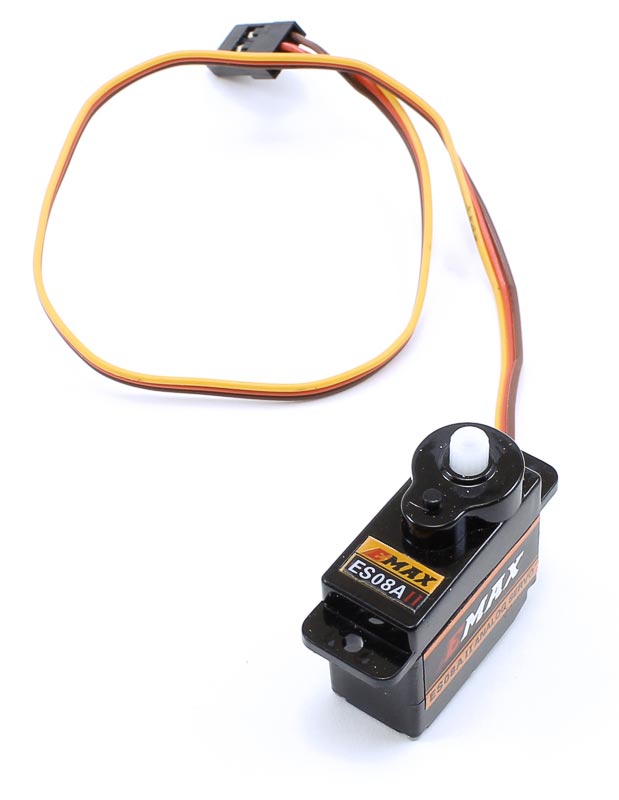

Emax Analog Micro Servo - Plastic Gear
This is a micro scale servo that works for small scale applications.
This servo will work with the SCX24 if the stock motor mount (included in Part# AXL31609) is replaced with the Aluminum Emax Steering Servo Mount SCX24 (Part# HRASXTF24M01)
**An aftermarket servo mount is required for the servo to fit in an SCX24 as noted above**
click image to enlarge
