EFLM4160A

Power 160 Brushless Outrunner Motor 245kV

Product Info | Replacement Parts | Optional Items
E-FLITE

EFLM4160A

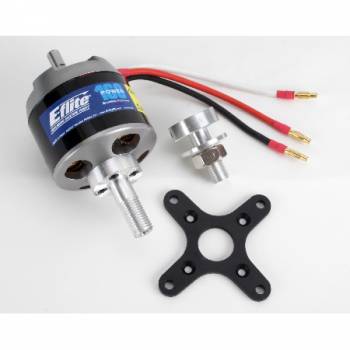

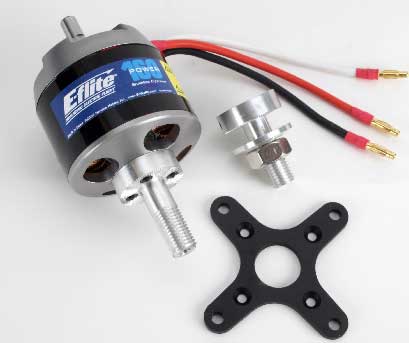

Power 160 Brushless Outrunner Motor 245kV
By E-FLITE
$239.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
1
$239.99
Warehouse ?
StockStock availability for pick up
1
$239.99
Warehouse ?
0
$239.99
Store - Stratford ?
1
$239.99
Store - Edmonton ?
0
$239.99
Store - Mississauga ?
1
$239.99
Store - Ottawa ?
1
$239.99
Store - Oshawa ?
0
$239.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Gold Bullet Conn Set 3.5mm (3)
$6.99

Power 110/160 X-Mount/Hardware
$22.99

Prop Adapter Set Power 110/160
$39.99

SPECIFICATIONS
Brushless Outrunner
Type:
18x8 to 20x10
Prop Range:
1.6 A
Idle Current:
28-32 Cells
NiCd/NiMH Cells:
9-10 Cells
Li-Po Cells:
85 - 110A high voltage brushless
Speed Control Required:
652 g
Weight:
63 mm
Overall Diameter:
8 mm
Shaft Diameter:
64 mm
Overall Length:

FEATURES
  • Equivalent to or surpassing the power of a 160-size 2-stroke glow engine for 12-20lbs (5.4-9Kg) airplanes
  • Ideal for 3D airplanes up to 15lbs (6.8Kg)
  • High torque alternative to inrunner brushless motors
  • Includes mount and mounting hardware
  • External rotor design for better cooling
  • High quality construction with ball bearings and hardened 8mm steel shaft
  • Includes two 12mm prop shaft adapters tapped out for 10-32 threads
  • Ideal for models requiring up to 2500 watts of power

The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12- to 20-pounds (5.4- to 9-Kg), 3D airplanes up to 15-pounds (6.8-Kg), or models requiring up to 2500 watts of power

It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite
