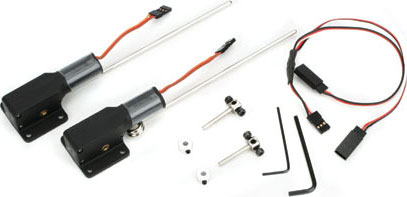

.15-.25 Electric Main Retracts 90-Deg
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Accessories, Retracts Mains
But only from... E-FLITE
All items from... E-FLITE
But only from... E-FLITE
All items from... E-FLITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Aircraft 15- to 25-size
Application:
1.25 sec @ 4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
Speed:
Main gear: 1.4 oz (39.5 g) each
Weight:
Electric brushed can
Motor Type:
JR, universal
Connector Type:
Metal
Gear Type:
5mA
Current Draw Idle:
200mA
Current Draw Stall:
4.8V-7.4V
Voltage:
FEATURES
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in overcurrent protection
- Strut Diameter: 0.137 in (3.5mm)
- Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)
Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.
