SPECIFICATIONS
69 mm
Rotor Diameter:
73.5 mm
Shroud Outer Tiameter:
72 mm
Shroud Length (including intake ring):
28.3 mm
Center Body Inside Diameter:
88 g
Overall Weight:
FEATURES
High-performance, efficient design with quick assembly time
Injection molded, high strength fiberglass-filled Polyphenylene Sulfide [PPS] plastic
Factory-balanced 69mm 5-blade rotor design and aluminum spinner
Includes center body fairing to reduce drag
Designed for 3S-4S Li-Po batteries
Can accept motors with 28mm diameter
Purpose-built for recommended E-flite BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF)

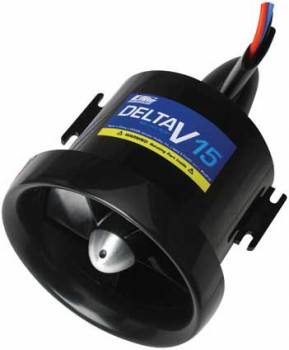

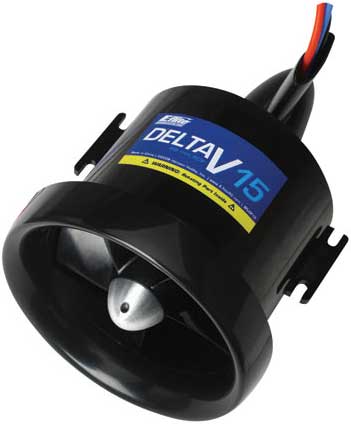

E-flite's Delta-V 15 69mm EDF (EFLDF15) electric ducted fan unit is an ideal choice for products such as E-flite’s BAe Hawk 15 DF and other similar sized ducted fan airplanes. The Delta-V 15 69mm EDF is also an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units. The BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF) is purpose-built for this Delta-V 15 69mm EDF and both products will provide great performance.
