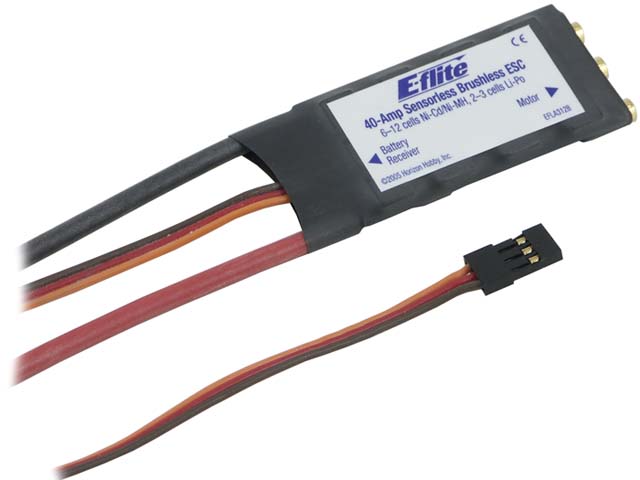

ESC Brushless 40A
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... E-FLITE
All items from... E-FLITE
But only from... E-FLITE
All items from... E-FLITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
6-12 Cells
NiCd/NiMH Cells:
2-3 Cells
Li-Po Cells:
40 A
Max Output:
Programmable
Brake:
Yes
BEC:
2 in
Length:
1 in
Width:
.4 in
Height:
FEATURES
- Up to 40-Amp continuous current with proper air flow
- Dual BEC regulators for use with up to 4* servos when using 3-cell Li-Po and 10-cell NiCd/NiMH packs
- programmable motor braking Automatically stes correct motor timing
- Safe power-on mode prevents accidental starts

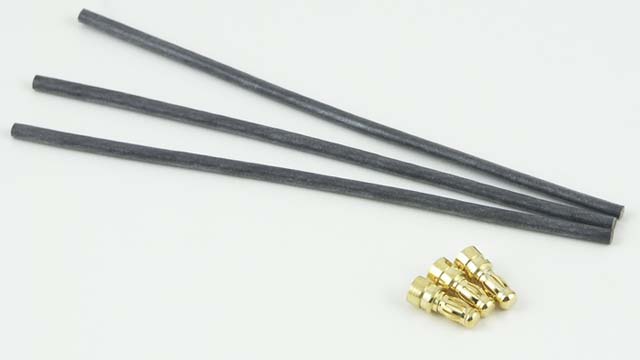

- Includes gold bullet connectors and extention wire leads for your motor
*BEC supports:
3 high torque to 4 sub-micro servos on 6-8 Ni-Cd/NiMH cells
2 high torque, 3 standard or 4 sub-micro servos on 9-10 NiCd/NiMH cells
2 sub-micro servos on 11-12 NiCd/NiMH.
3 high torque to 4 sub-micro servos on 2 Li-Po cells
2 high torque 3 standard, or 4 sub-micro servos on 3 Li-Po cells
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
