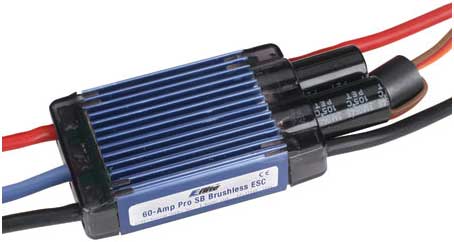

ESC Pro SB Brushless 60A
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... E-FLITE
All items from... E-FLITE
But only from... E-FLITE
All items from... E-FLITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Yes
Brake:
60 A
Continuous Current:
13 AWG with E-Flite EC3 Connector
Input Connector Types:
13 AWG with 3.5mm Femail Gold Bullet Connectors
Output Connector Types:
75 A
Momentary Peak Current (15 sec):
71 mm
Length:
33 mm
Width:
13 mm
Height:
54 g
Weight:
13 AWG
Wire Gauge:
3-6 Cells
Li-Po Cells:
9-18 Cells
NiCd/NiMH Cells:
FEATURES
- Up to 60A continuous current with proper air flow with 75A peak
- 2.5A continuous current with 4A max burst, 5V Switch-Mode BEC circuit
- Drives up to 7 analog or 5 digital standard sized servos, with the BEC, on any recommended input voltage
- 3-6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage
- Finned heat sinks
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cut-off with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V), or 70% of battery starting voltage
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing - 3 user selectable ranges for use with a larger variety of brushless motors
- Programmable throttle input range (1.1ms–1.9ms or 1.2m–1.8ms)
- Utilizes new smaller mosfets technology to minimize weight
- Optional serial port available for programming
- Pre-wired connectors - E-flite EC3 on battery input and 3.5mm female gold bullets on motor output leads
This is a high quality, efficient sensorless brushless ESC with an integrated switch-mode BEC . It can operate without the need for a separate receiver battery to power your servos and receivers, thereby allowing you to minimize flying weight. You can even drive up to 7 anolog or 5 digital standard sized servos with the BEC on any recommended input voltage. The ESC features an exposed, finned heat sink case with lightweight plastic endcaps. Additional features include safe power arming, along with advanced programming features such as low voltage cutoff, braking, timing, throttle input range, and soft cutoff. This truly is a 'pro series' speed control.
