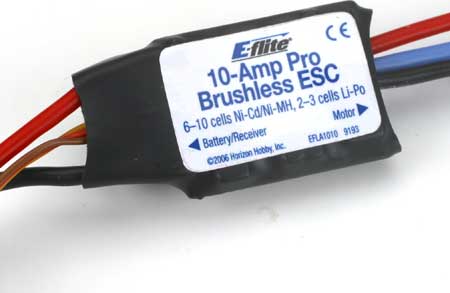

ESC Pro Brushless 10A
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... E-FLITE
All items from... E-FLITE
But only from... E-FLITE
All items from... E-FLITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Programmable
Brake:
10 A
Continuous Maximum Current:
20AWG with JST connector
Input Connector Type:
20 AWG with 2mm Female Gold Bullet Connectors
Output Connector Types:
12 A
Momentary Peak Current (15 sec):
30 mm
Length:
17.5 mm
Width:
10 mm
Height:
10 g
Weight:
2-3S
Li-Po Cells w/BEC:
6-10 Cells
Ni-MH/NiCd Cells w/BEC:
FEATURES
- Up to 10 amps continuous current with proper air flow
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cut-off with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or Auto Select)
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—2 user selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
- Soft start
This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2-3 cell Li-Po battery packs and up to four submicro servos. Standard features include advance BEC and safe power arming along with programmable features such as low voltage cutoff, braking, timing, and throttle input range.
