60A Brushed ESC FWD/REV Waterproof
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... DYNAMITE
All items from... DYNAMITE
But only from... DYNAMITE
All items from... DYNAMITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
60 A
Max Continuous Current FWD:
30 A
Max Continuous Current REV:
5 V
BEC Voltage:
.0008 mohms
On Resistance:
50 g
Weight:
37.5 mm
Length:
56.6 mm
Width:
18 mm
Height:
2-3 Cells
LiPo Cells:
5-9 Cells
NiMH/NiCd Cells:
EC3
Battery Connector:
3.5mm Tamiya style bullet
Motor Connector:
FEATURES
- Waterproof for all weather operation *
- LiPo and NiMH compatible
- Program functions changed with the use of jumper pins
- Up to an 8T motor limit
- Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles
- Crawler running mode
- Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation

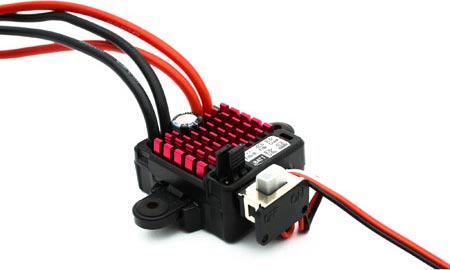

This waterproof, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.
* While waterproof, this component has not been designed to immerse in water for long periods of time and should NOT be treated like a submarine. Please be sure to read through the general precautions listed in the user’s manual.
