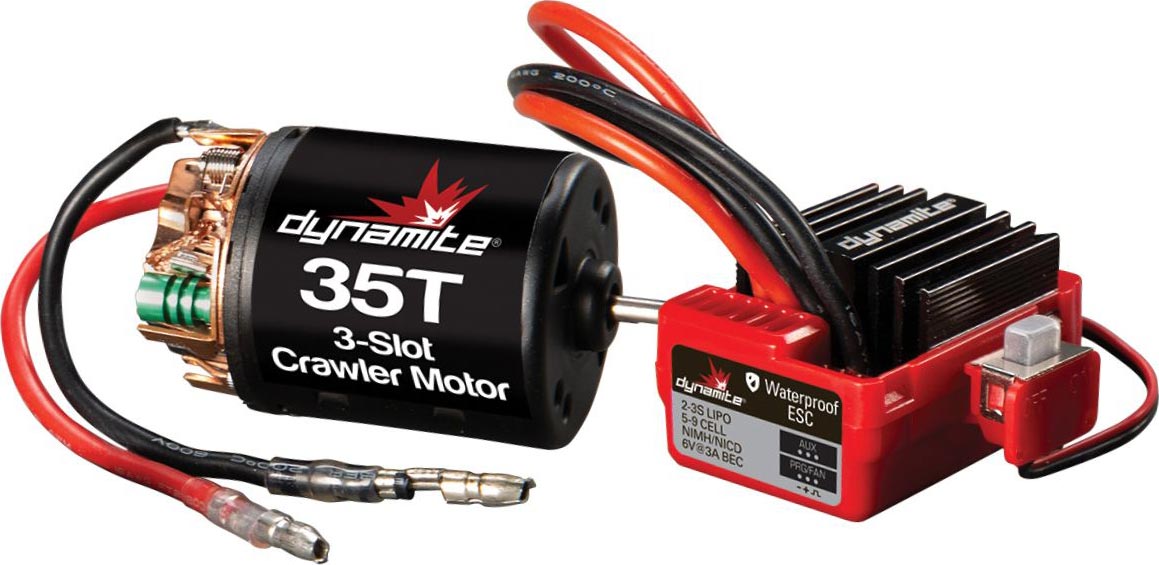

35T 3-Slot Brushed Crawler Motor/Waterproof ESC LiPo/NiMH Comb

 This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.

Component Specifications
Motor:

• Motor dimensions: 36mm dia x 53mm L
• Shaft dimensions: 1/8”/3.12mm x 12.5mm
• Input voltage limit: 2S-3S LiPo/6-9cell NiMH
• Bearings/Bushings: Ball bearings

ESC:

• Input Voltage: 2-3S LiPo, 6-9 Cells NiMH/NiCd
• Size: 46.5x34x28.5mm
• Weight: 68g
• Motor Limit: >12T 2S/ >18T 3S
• On-Resistance FET: .002
• Continuous current: 40A
• Rated/Peak Current: 180A
• Braking Current: 90A
• BEC Voltage: 6.0V 3.0A Peak
• Connector: IC3
• PWM Frequency: 1KHz
