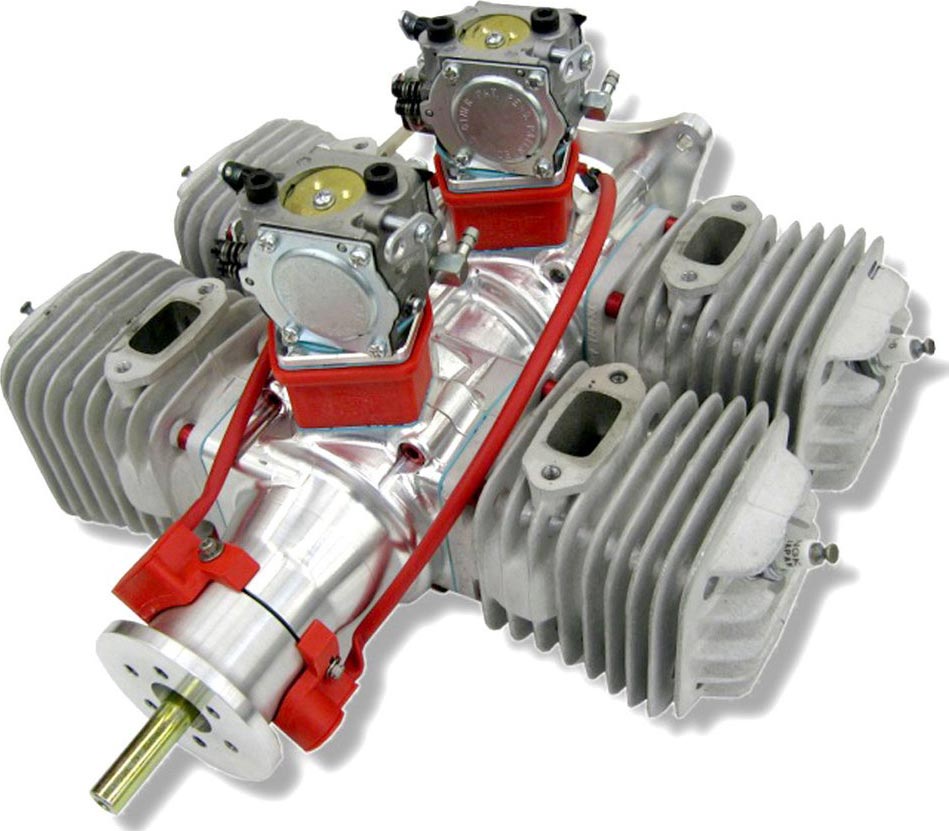

DA200 4-Cylinder Gasoline Engine w/IGN
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Gas Aircraft Motors
But only from... DESERT AIRCRAFT
All items from... DESERT AIRCRAFT
But only from... DESERT AIRCRAFT
All items from... DESERT AIRCRAFT
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|||||||||||||
SPECIFICATIONS
200 cc
Engine Displacement:
1.6771 in
Bore:
1.3779 in
Stroke:
900-6700 RPM
RPM Range:
10.95 lbs
Overall Weight:
19 HP
Claimed Power Output:
30x13, 31x12, 32x10, 32x11, 32x12
Prop Range (2 Blade):
29x12, 29x12n, 29x12evo, 29x13
Prop Range (3 Blade):
FEATURES
- Four petal reed valve, bottom induction.
- Desert Aircraft, auto advance, electronic ignition system.
- Walbro Carburators
- Crankshaft designed, manufactured, and assembled to aerospace standards at our Tucson Arizona factory.
- Exclusive Desert Aircraft designed cylinders and pistons.
- CNC milled, 7075 aluminum alloy crankcase.
- Low vibration.
- Long rod to stroke ratio.
- Aerobatic power curve.
- DA engines are designed using the latest tools and techniques, including 3D CAD and Stereo Lithography.
