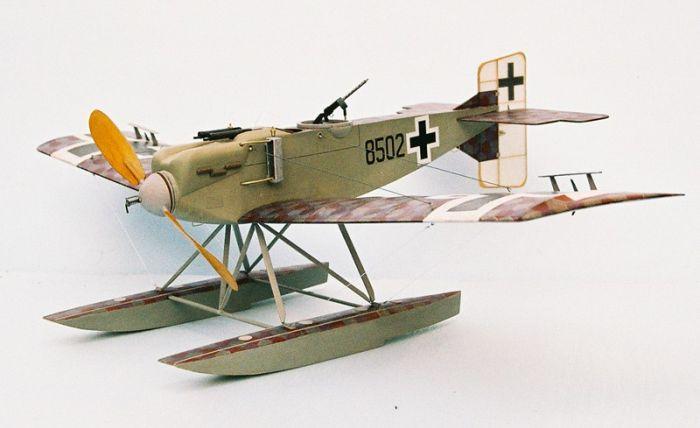

The CS-1 was designed by Dornier to be a replacement for the much-vaunted Hansa Brandenburg W-29. However, not withstanding, the incorporation of the highly successful structural innovations pioneered by the Zeppelin Works, this craft never made it into production. The CS-1’s design was a radical departure from conventional structural techniques of the day. This aircraft featured an all-metal structure along with a stressed skin fuselage.
Power:
Rubber: 3/16 & 1/4 FAI Super Sport a 8" two-blade prop
Electric: 3.5:1 geared motor with a 7” two-blade prop and a 5-cell, 50 mah battery pack
Wing Span: 27"
Plane Length: 18"
Wing Area: 130 sq. in.
Engine: Electric RC, or Rubber
The Dare model, designed by Mike Midkiff, is a fine performer and will be a welcome addition to your stable of models.
Wing loading: .7 grams/sq.in.
Weight (airframe): 90 grams
This kit features all Laser Cut Parts, Full Size Plans, Prop, Thrust Washer & Prop Shaft, Decals, Wire, Aluminum, Rigging Thread and Tissue Covering Power: Rubber: 3/16 & 1/4 FAI Super Sport & a 8" two-blade prop Electric: 3.5:1 geared motor with a 7” two-blade prop and a 5-cell, 50 mah battery pack
