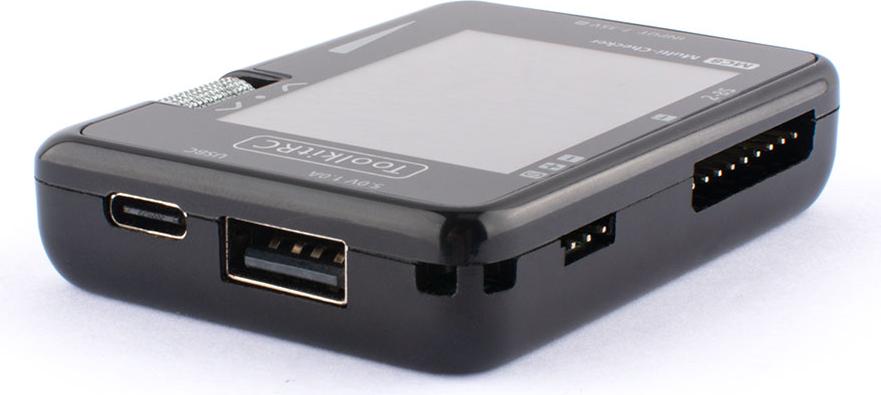

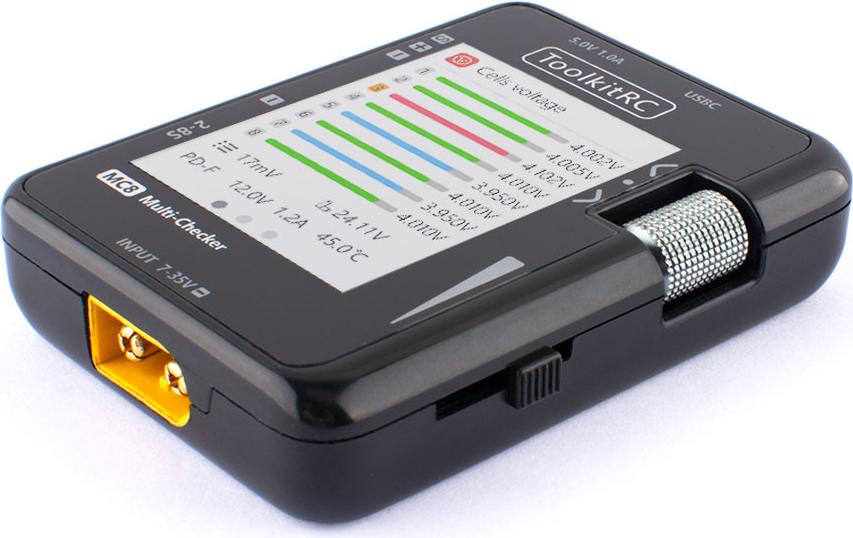

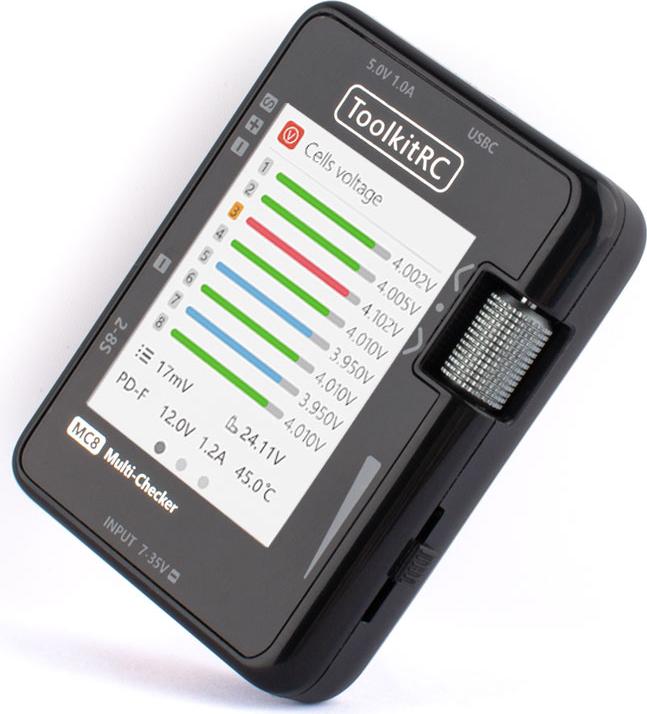

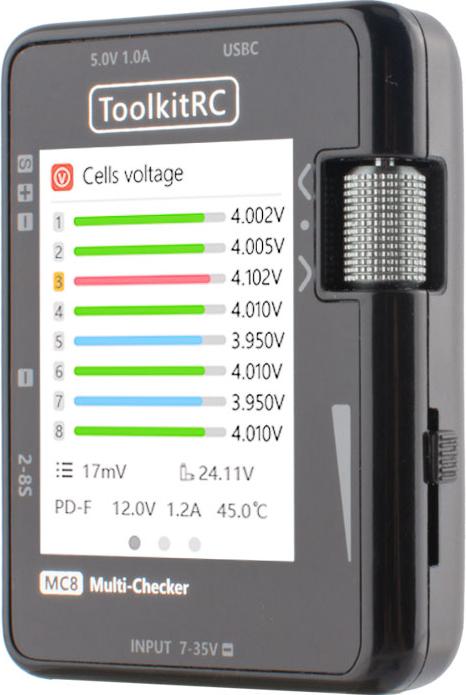

ToolkitRC MC8 Cell Checker/Balancer/Servo Tester
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
68 mm
Length:
50 mm
Width:
15 mm
Height:
50 g
Weight:
FEATURES
Specifications
Main input port XT60 7.0V-35.0V
Balance input 0.5V-5.0V Lixx 2-8S
Signal port input <6.0V
Balance current MAX 60mA @2-8S
Balance accuracy <0.005V @ 4.2V
USB-A output 5.0V@1.0A firmware upgrade
USB-C output 5.0V-12.0V @MAX 20W
USB-C protocol PD3.0 QC3.0 AFC SCP FCP
Measurement
PWM 500-2500us @20-400Hz
PPM 880-2200us*8CH @20-50Hz
SBUS 880-2200us *16CH @20-100Hz
Output
PWM 1000-2000us @20-1000Hz
PPM 880-2200us*8CH @50Hz
SBUS 880-2200us *16CH @74Hz
