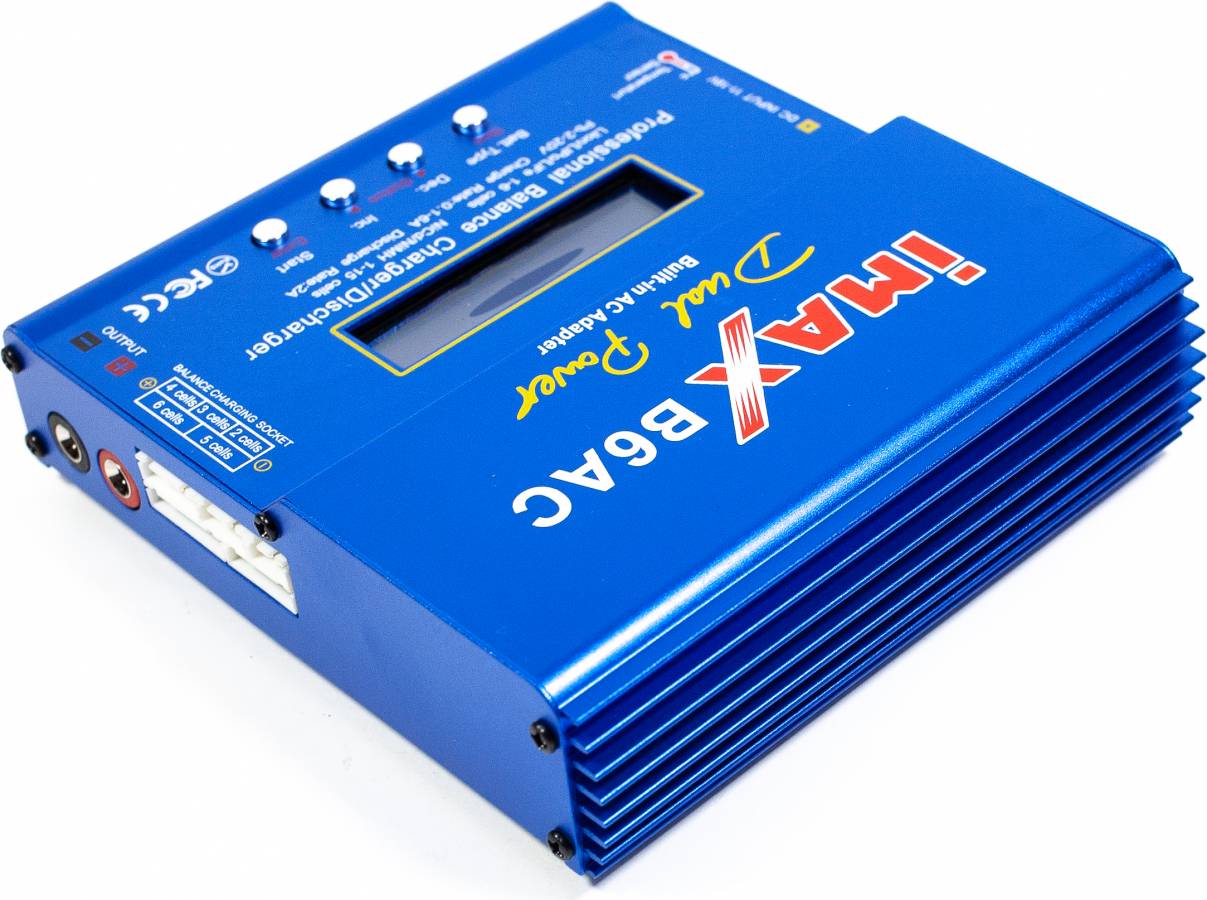

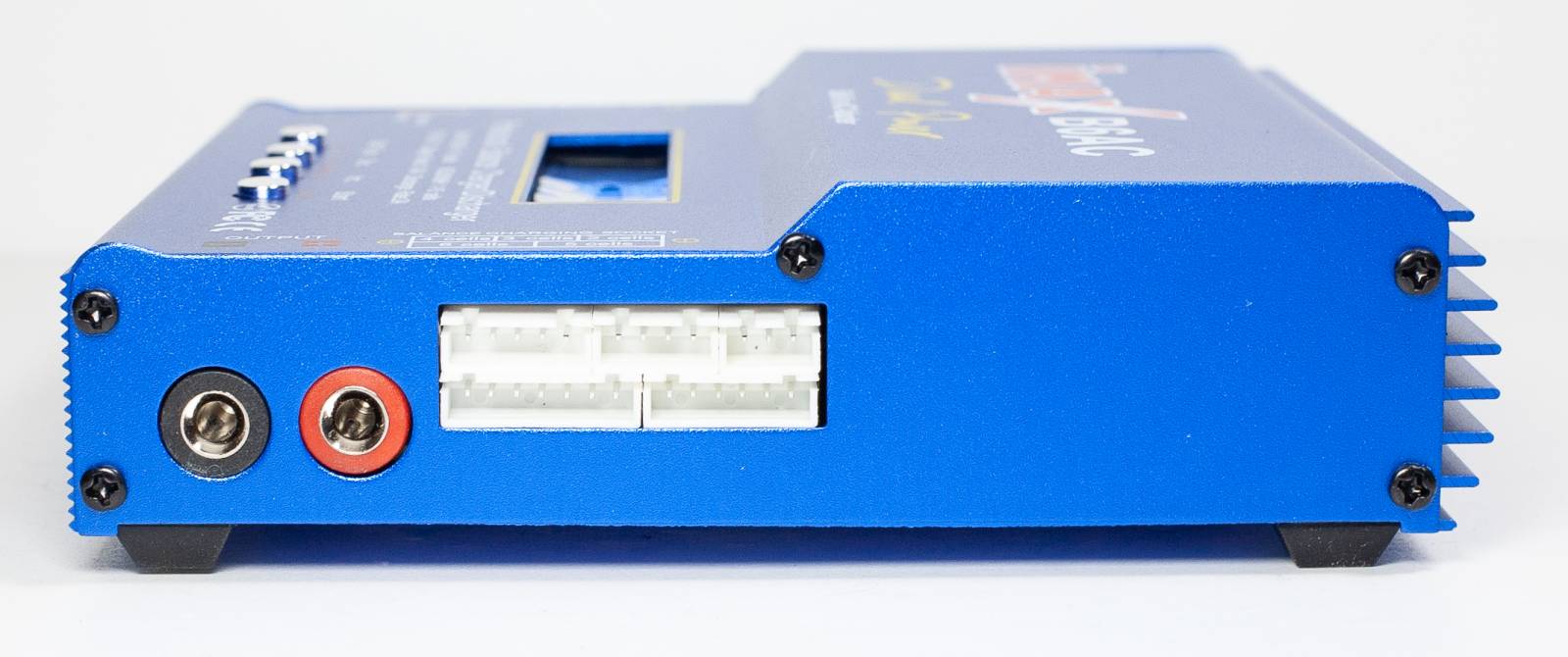

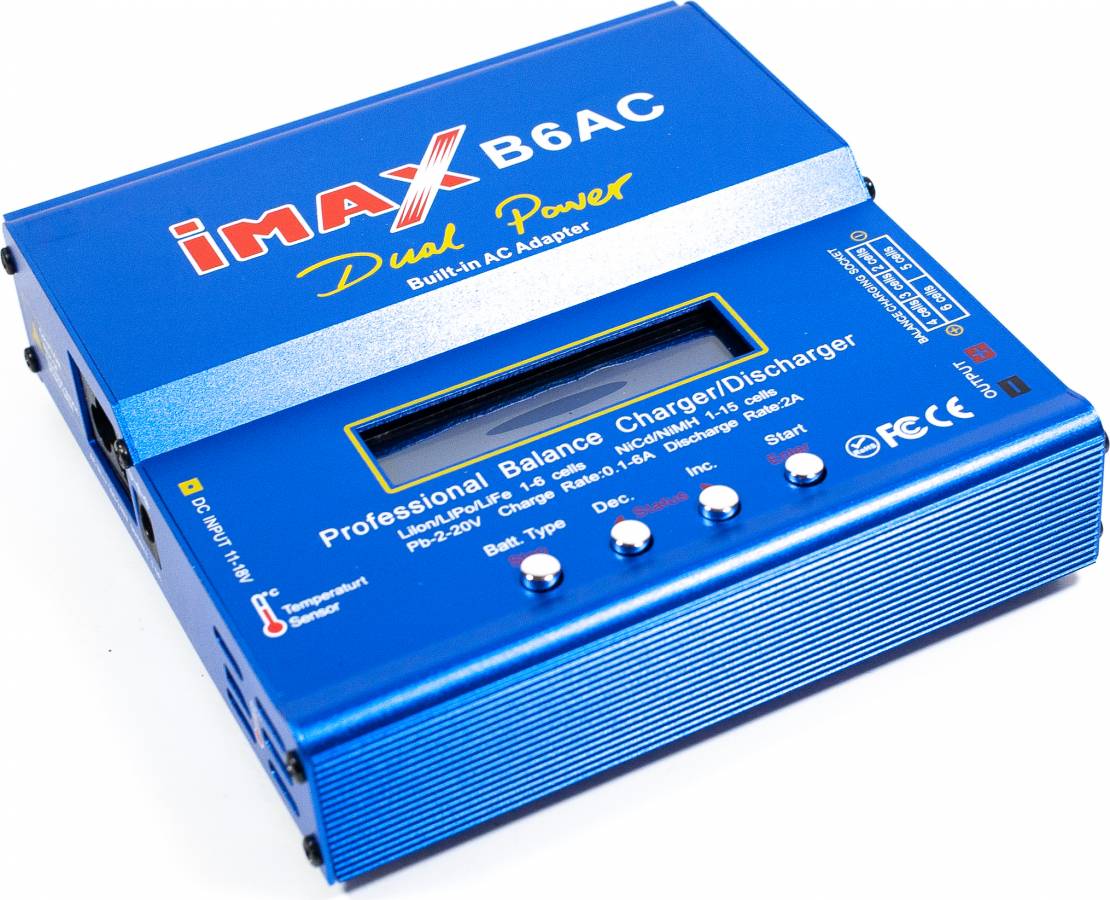

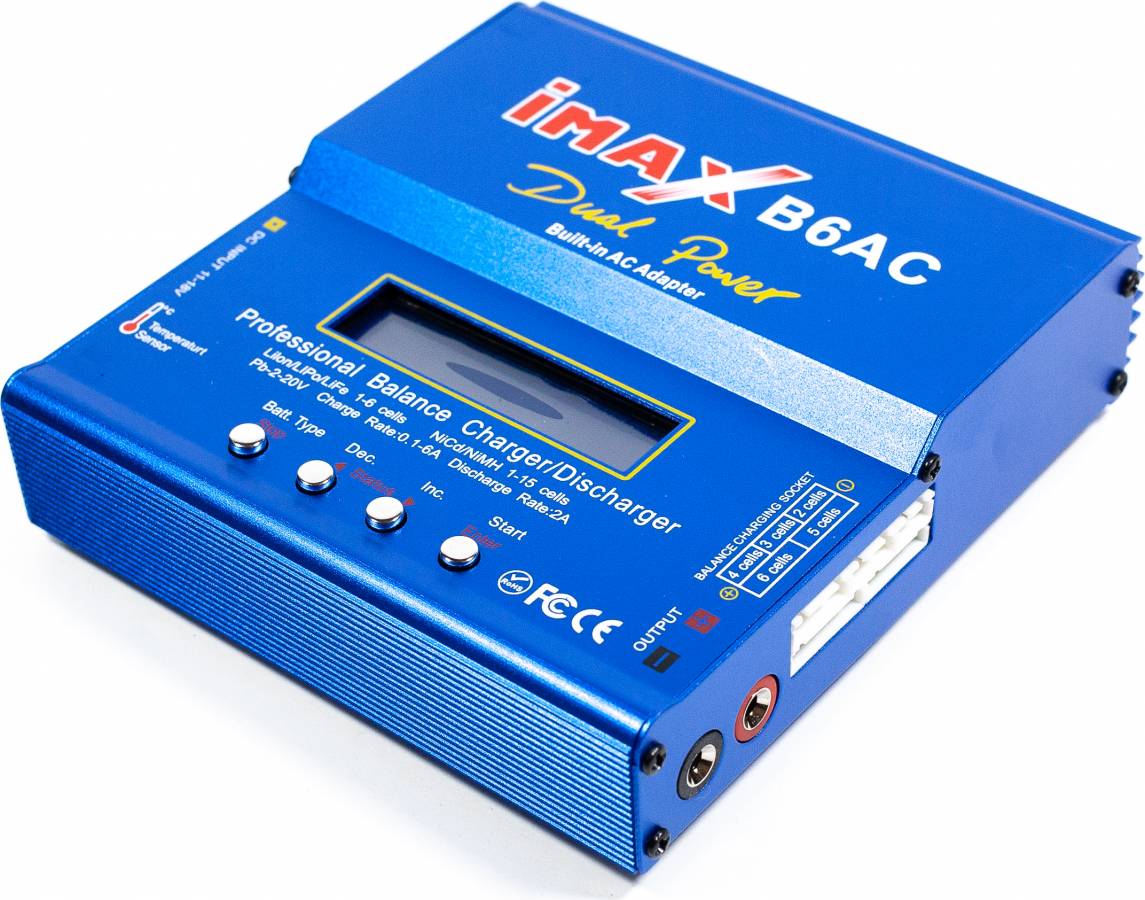

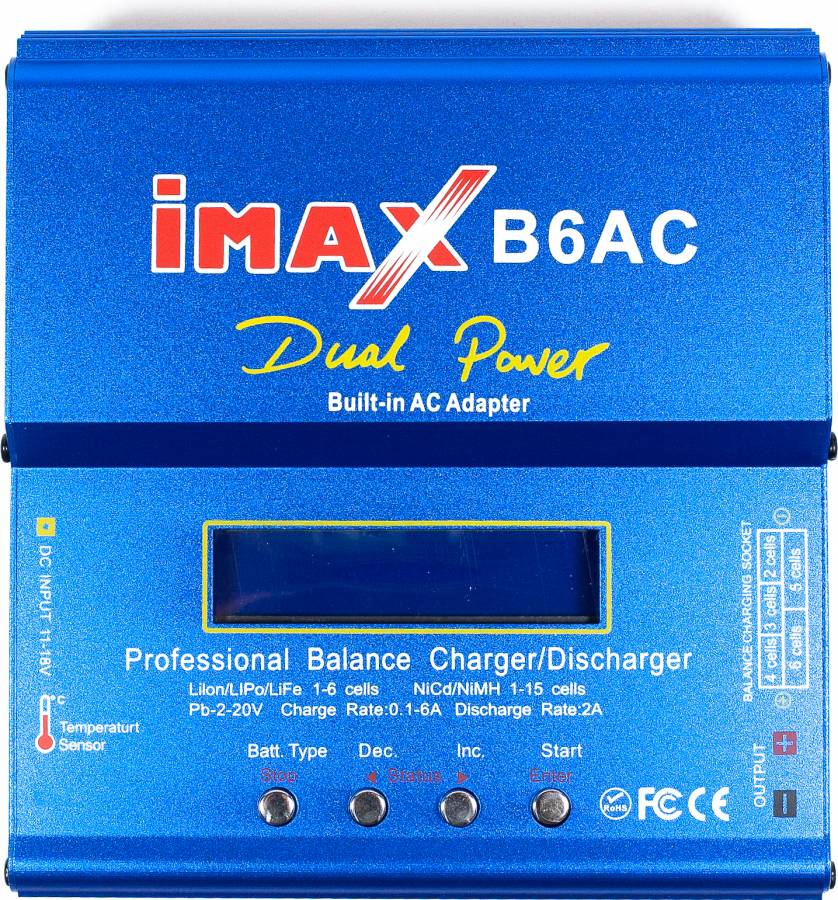

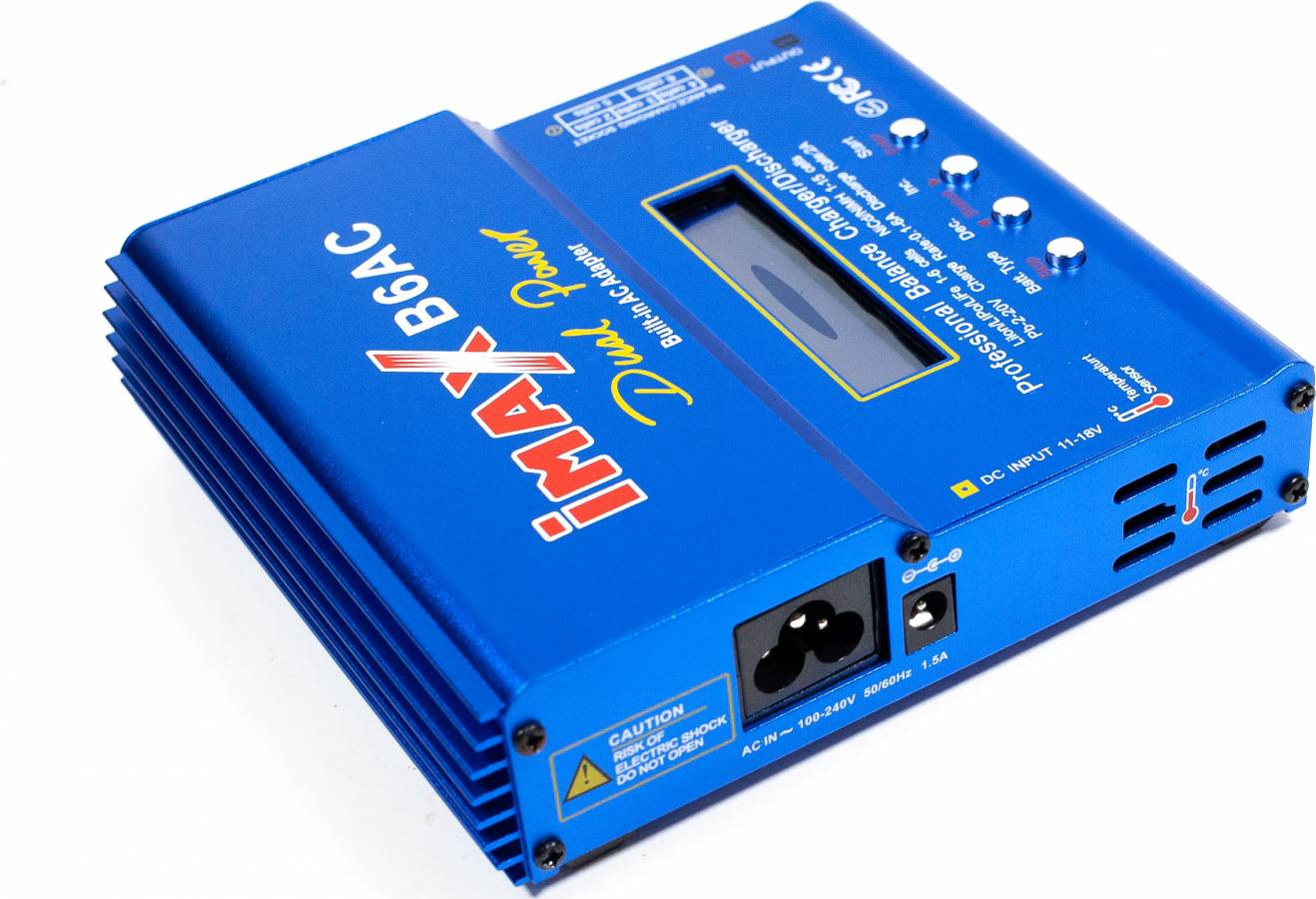

Imax B6 AC/DC 80W Charger
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Battery Chargers, Multi-Chemistry
But only from... CSC DIRECT
All items from... CSC DIRECT
But only from... CSC DIRECT
All items from... CSC DIRECT
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
Max. charge power: 80W
Max. discharge power: 8W
Pb battery voltage: 2V to 20V
Dimension: 136 x 141 x 34 mm
Charge current range : 0.1 to 5.0A
Discharge current range : 0.1 to 1.0A
Li-Ion / Polymer cell count: 1 to 6 series
NiCd / NiMH battery cell count : 1 to 15 cell
Current drain for balancing Li-Po : 300mAh/cell
Circuit power : AC to DC adapter (DC 11.0 to 18.0V / 5A)
Operation voltage range : DC 11.0 to18.0 V, AC 100V to 240V 50/60Hz

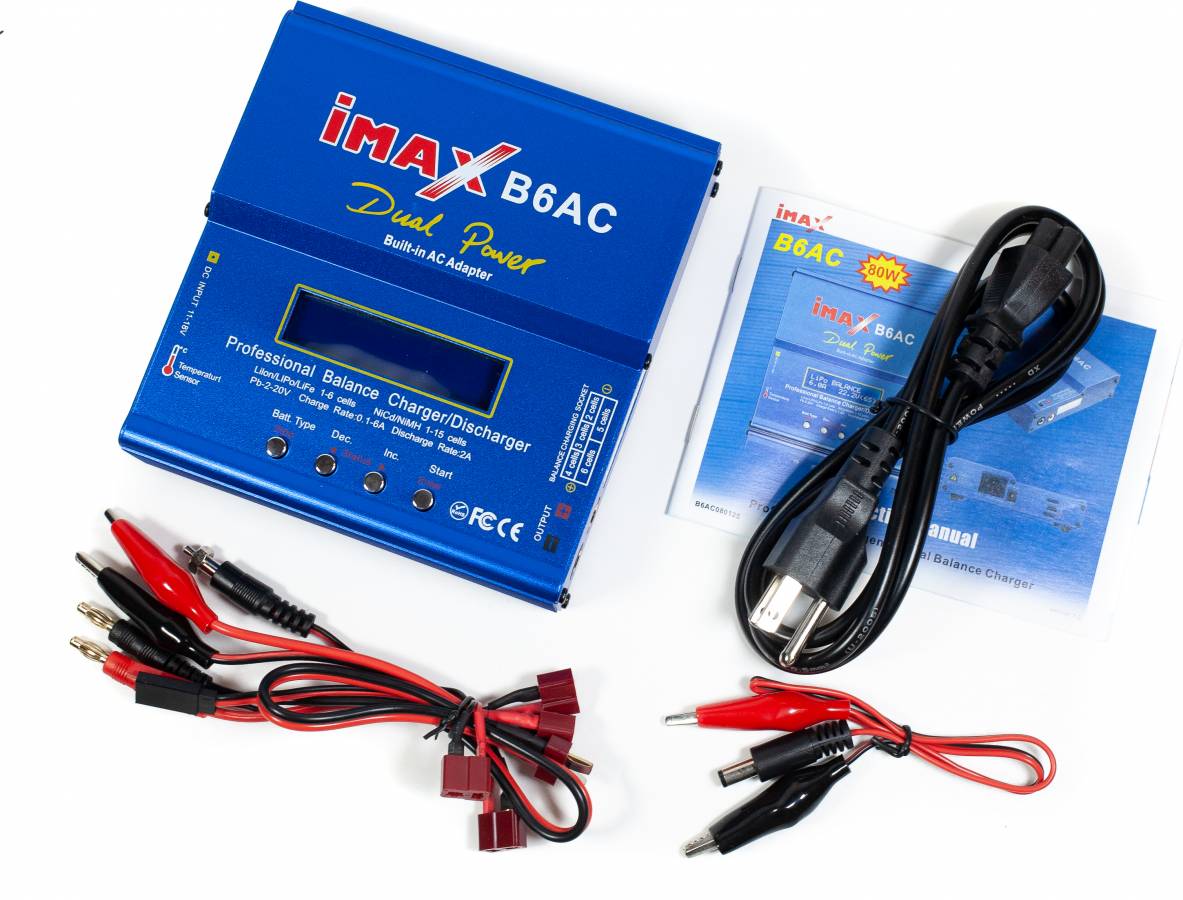

Package Includes:
1 x AC/DC Balance Charger

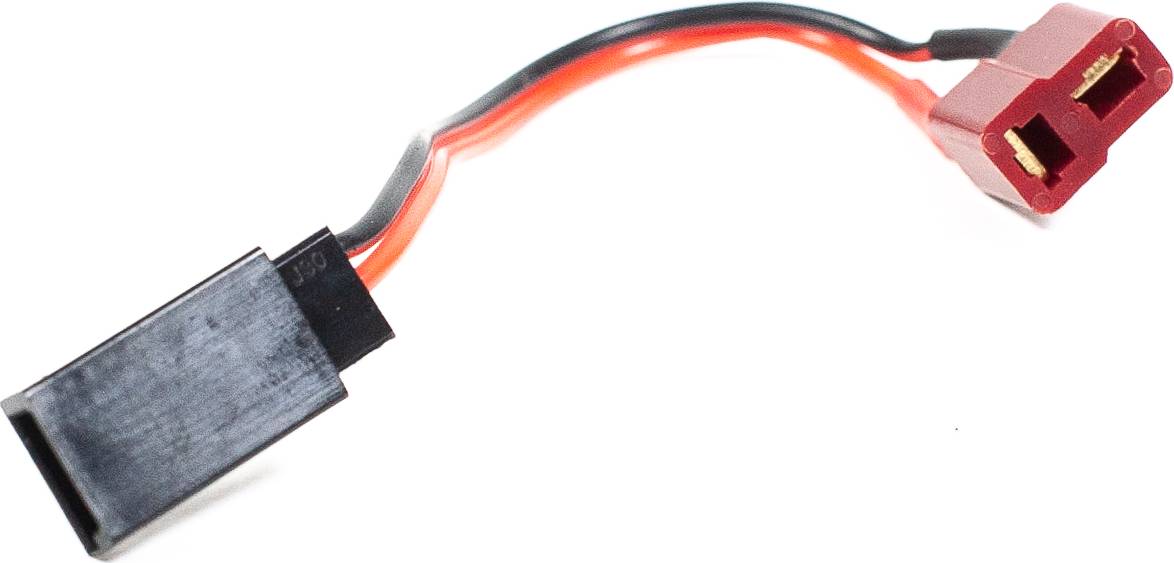

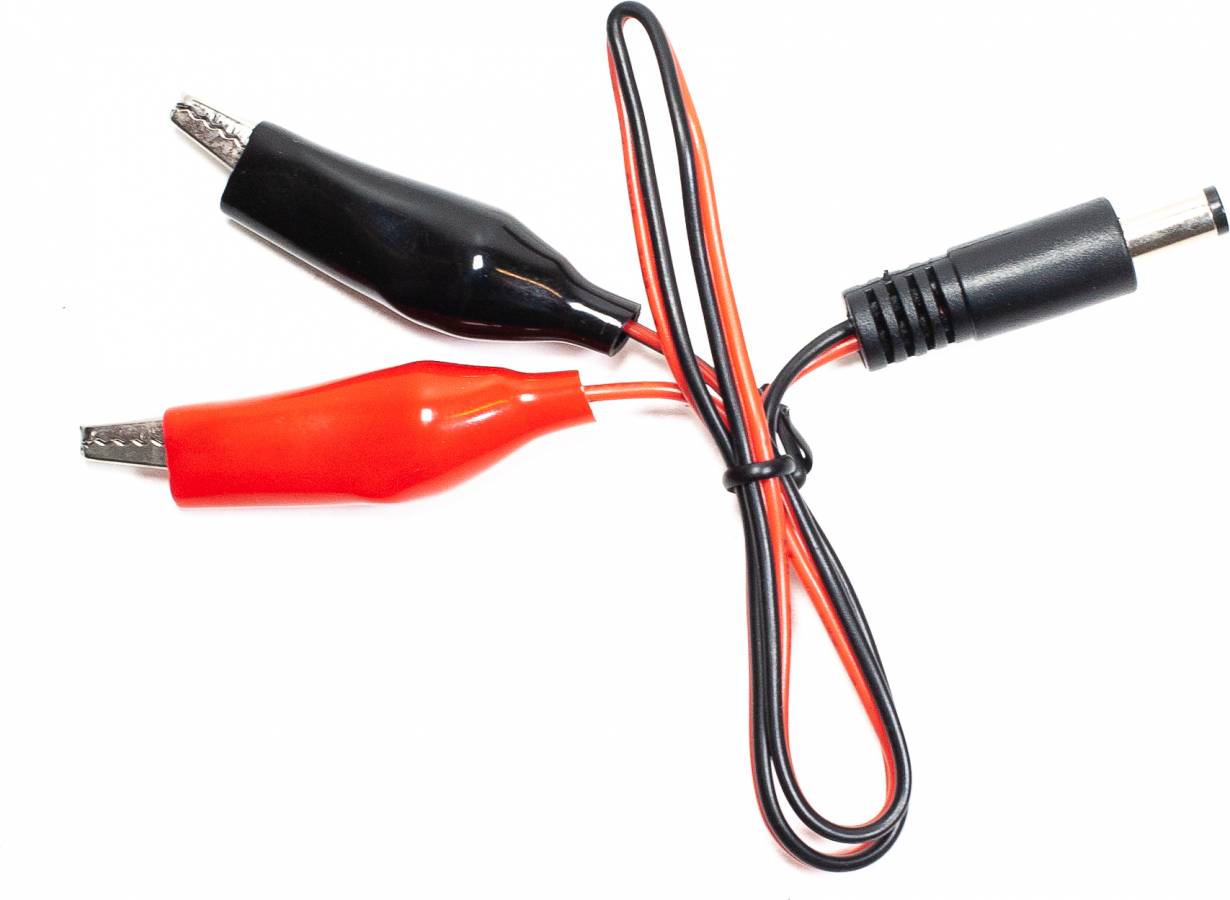

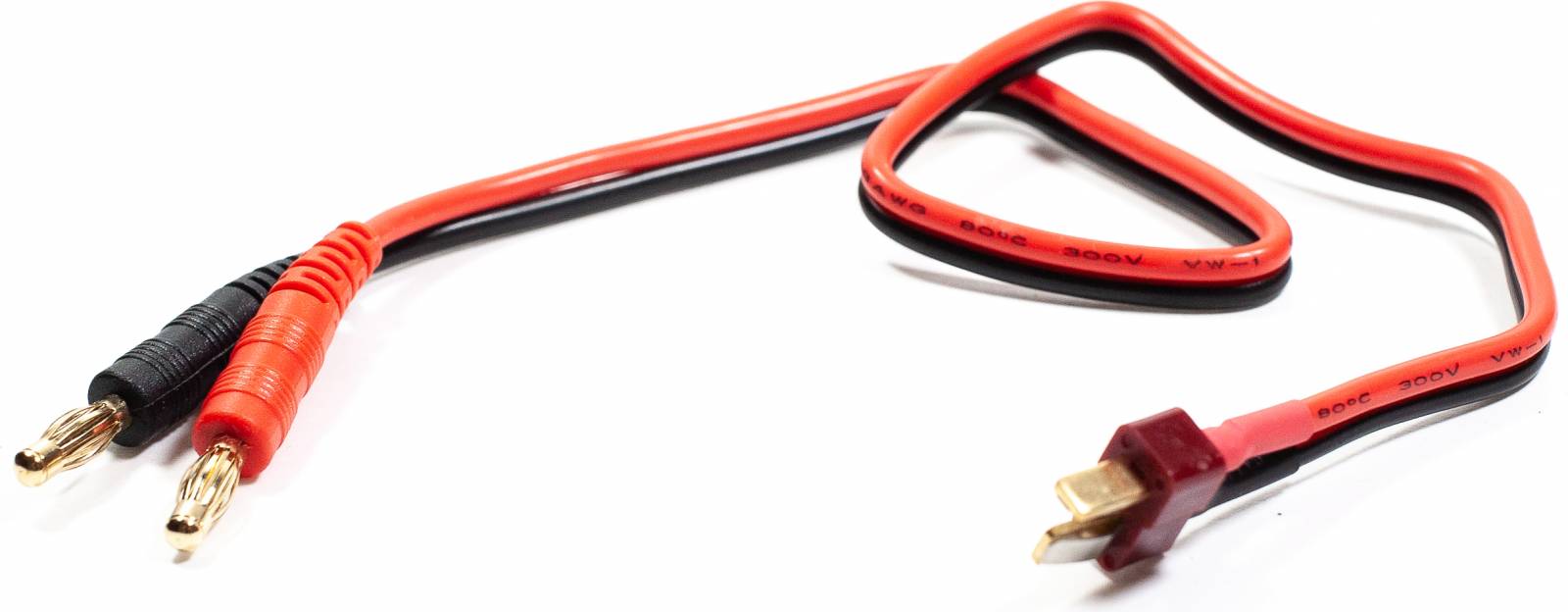

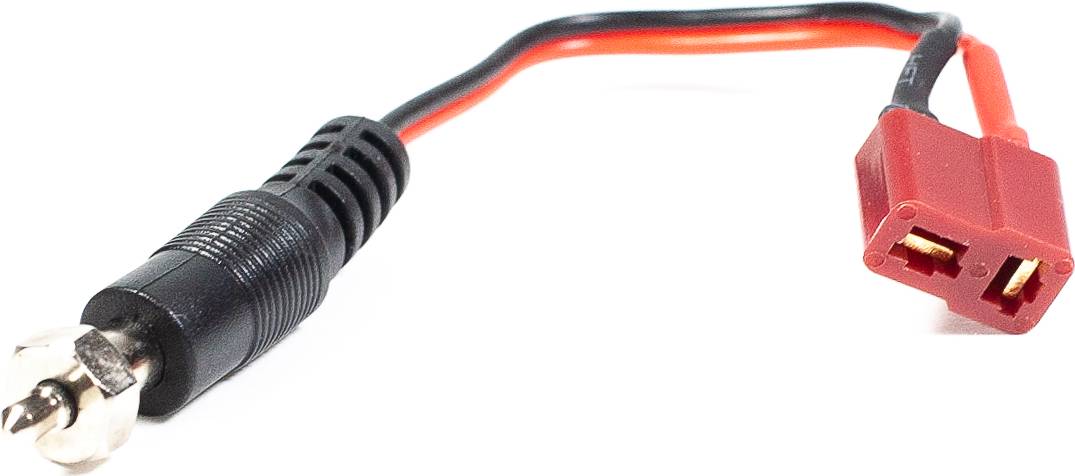

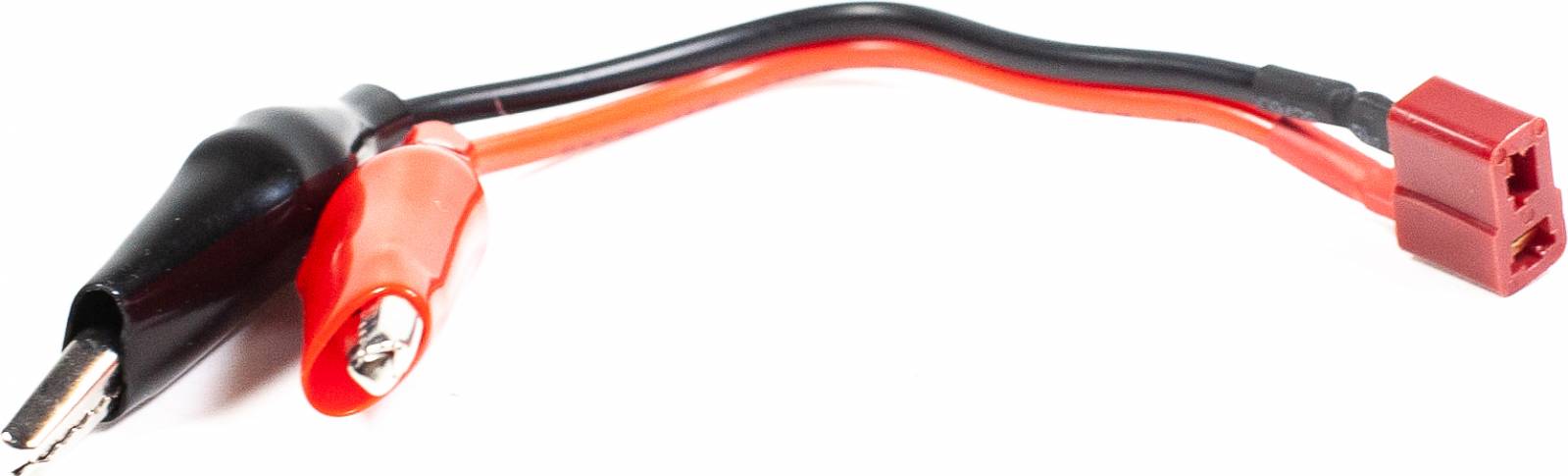

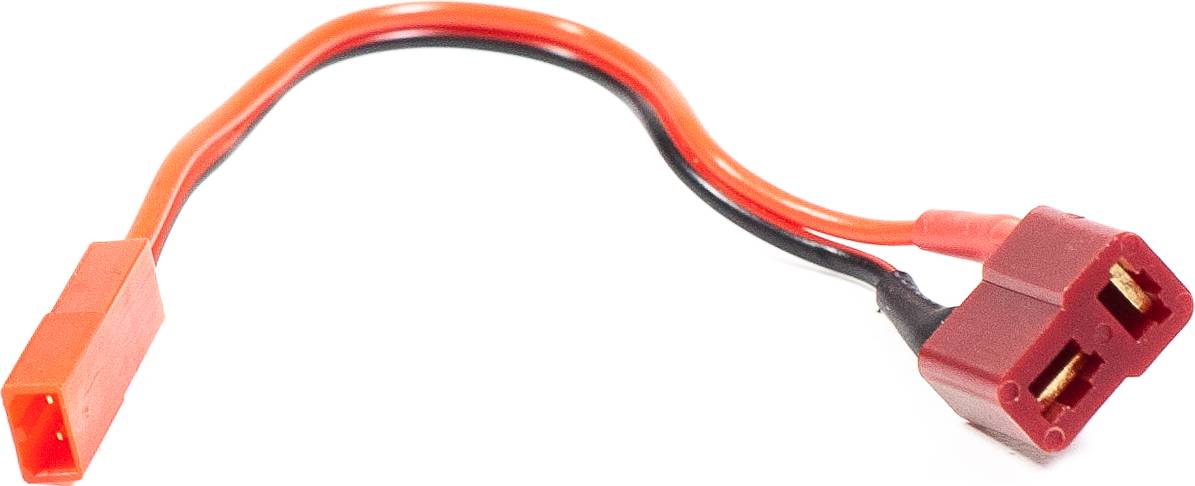

3 x Cable sets
1 x Power Cable
1 x Instruction Manual
