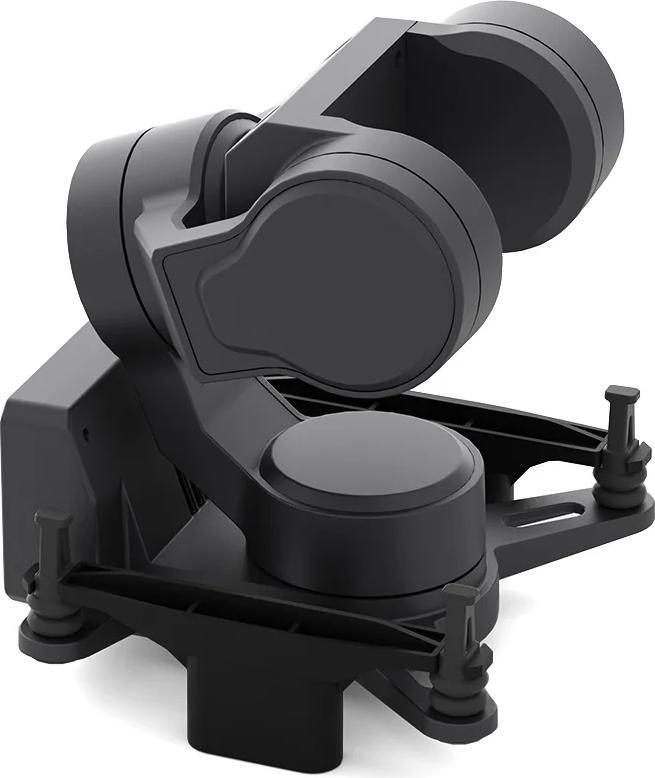

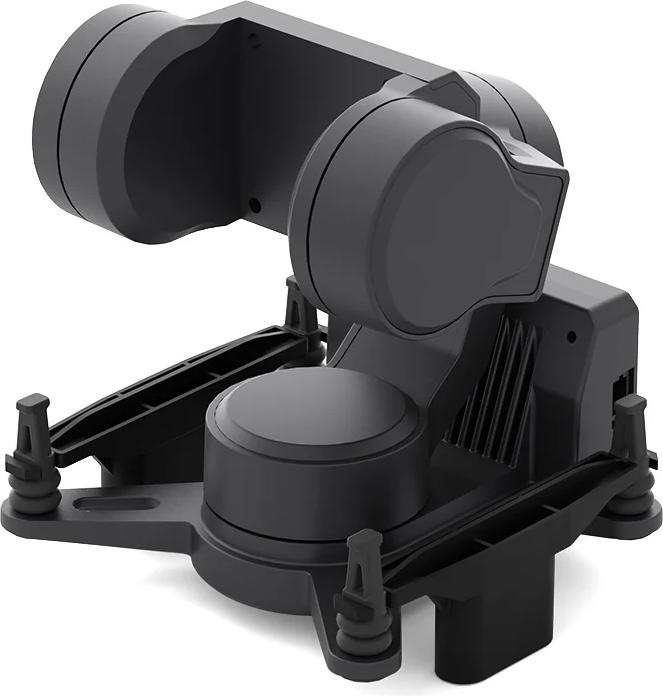

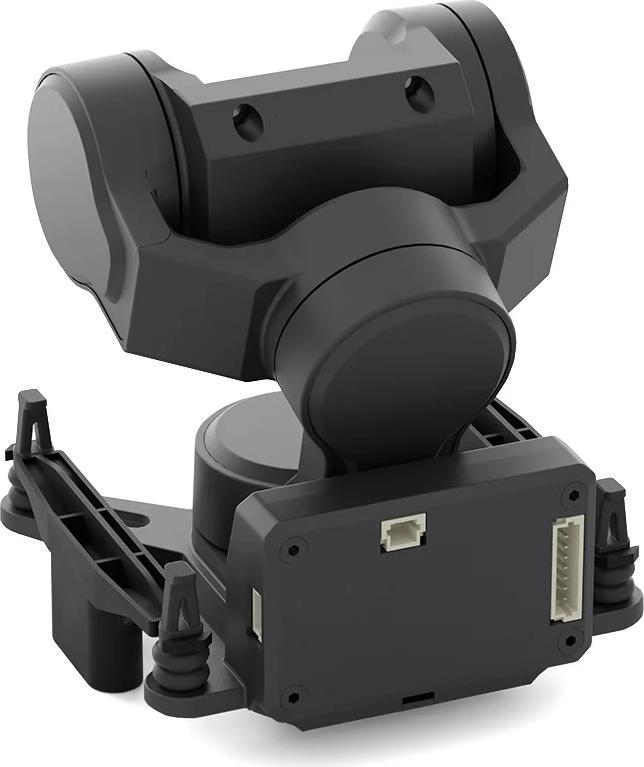

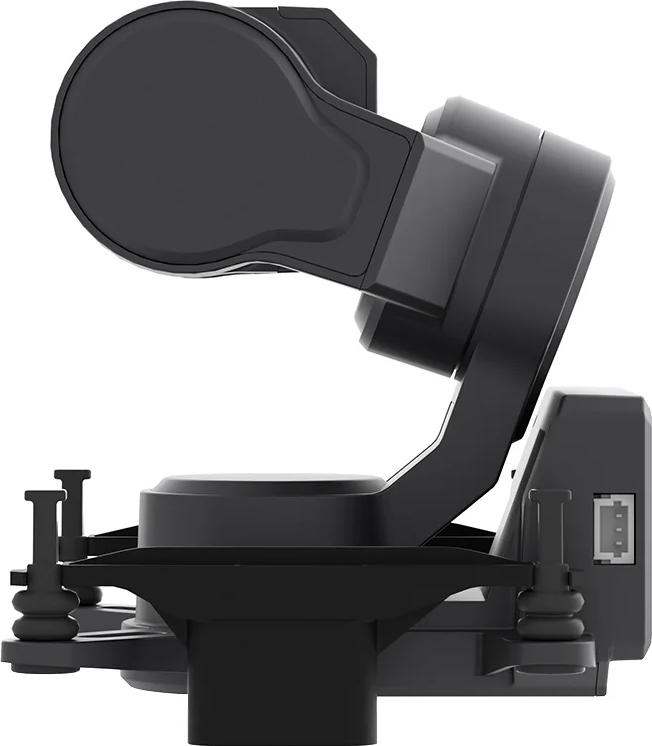

GM3 FPV Gimbal Only
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Helicopter Accessories, Camera Gimbal
But only from... Caddx
All items from... Caddx
But only from... Caddx
All items from... Caddx
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
19mm FPV Camera
Camera Compatibility:
±0.005º
Image Stabilization:
±1500º/s
Max Controllable Speed:
Pitch ±120º, Roll ±60º, Yaw ±160º
Max Controlled Rotational Range:
50 x 46.5 x 53 mm
Size:
46 g
Weight:
PWM /UART
Control Mode:
Supported
Head Tracking Control:
7~26 V
Voltage:
1.5 W
Static Power Dissipation:
FEATURES
Preface About GM1/GM2/GM3
Based on pilots feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axis, dual-axis, and tri-axis, catering to various user needs. The design of the gimbal is primarily aimed at enhancing the pilot's experience, providing them with stable, smooth images, allowing them to easily capture stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.
Features:
- Enhanced FPV Experience
- Head Tracking Functionality
- Exceptional Stability
- Quick Assembly
- Compatibility
- Flexibility
GM1/GM2/GM3 compatibility with walksnail VTX:
The gimbal can't be used with V1 VTX, Mini 1s, Nano V3 and GT VTX, but can only be used with V2 VTX, V2 VTX Dual and Moonlight VTX.
click image to enlarge

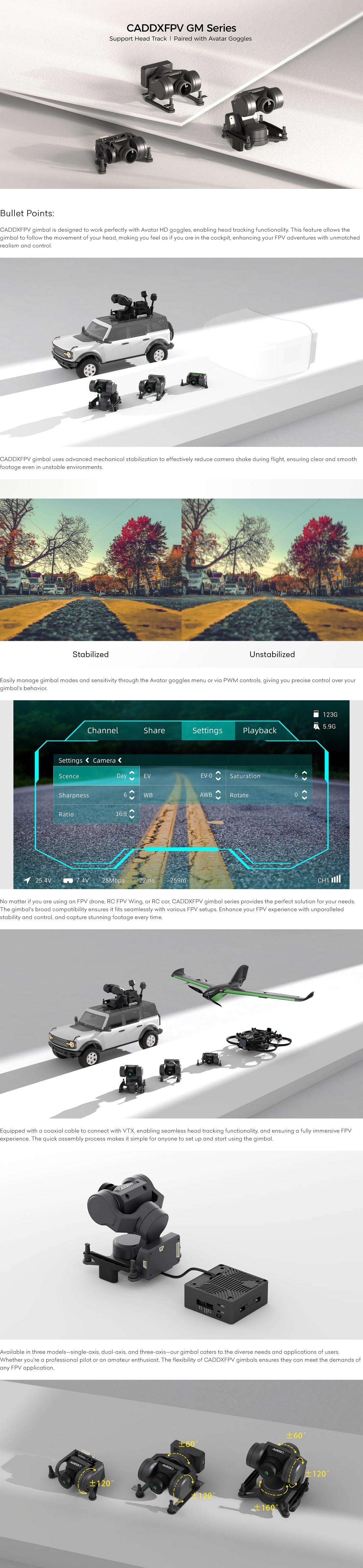

ADDITIONAL PHOTOS
|
|
|
|
C0CA-GM300
