FEATURES
Versatile PWM Channels: Equipped with 14 PWM channels, this receiver caters to various applications, enabling the control of up to 14 servos for intricate and precise maneuvering. It also supports external sensors like barometers and current sensors.
Dual RF Chains for Enhanced Reception: This true diversity receiver boasts two complete RF receiver chains, utilizing dual SX1280/SX1281 or dual SX1276, and runs on the latest ExpressLRS V3.3 firmware. The setup ensures reliable signal reception.
Precision with TCXO: Featuring a temperature-compensated crystal oscillator (TCXO), shared by two RF chips, this receiver provides a highly accurate clock source. Its resilience to extreme temperatures guarantees a consistent and precise frequency output for long-range flights.
Omnidirectional Signal Transmission: Employing two antennas, the receiver generates an omnidirectional signal for robust transmission. Placing the antennas separately and vertically is recommended for optimal signal strength.
Failsafe Function for Model Protection: With failsafe functionality, this receiver safeguards RC models by preventing them from going out of control, enhancing overall safety during operation.
Convenient Type-C USB Port: The inclusion of a Type-C USB port facilitates firmware flashing, offering convenience for pilots. The plug-and-play design ensures user-friendly and straightforward usage.
900MHz Advantages: The 900MHz radio system exhibits superior diffraction ability due to its lower frequency, making it resilient to obstacles like buildings, foliage, or moisture. In contrast, 2.4GHz systems can be more directional and susceptible to attenuation in certain conditions.

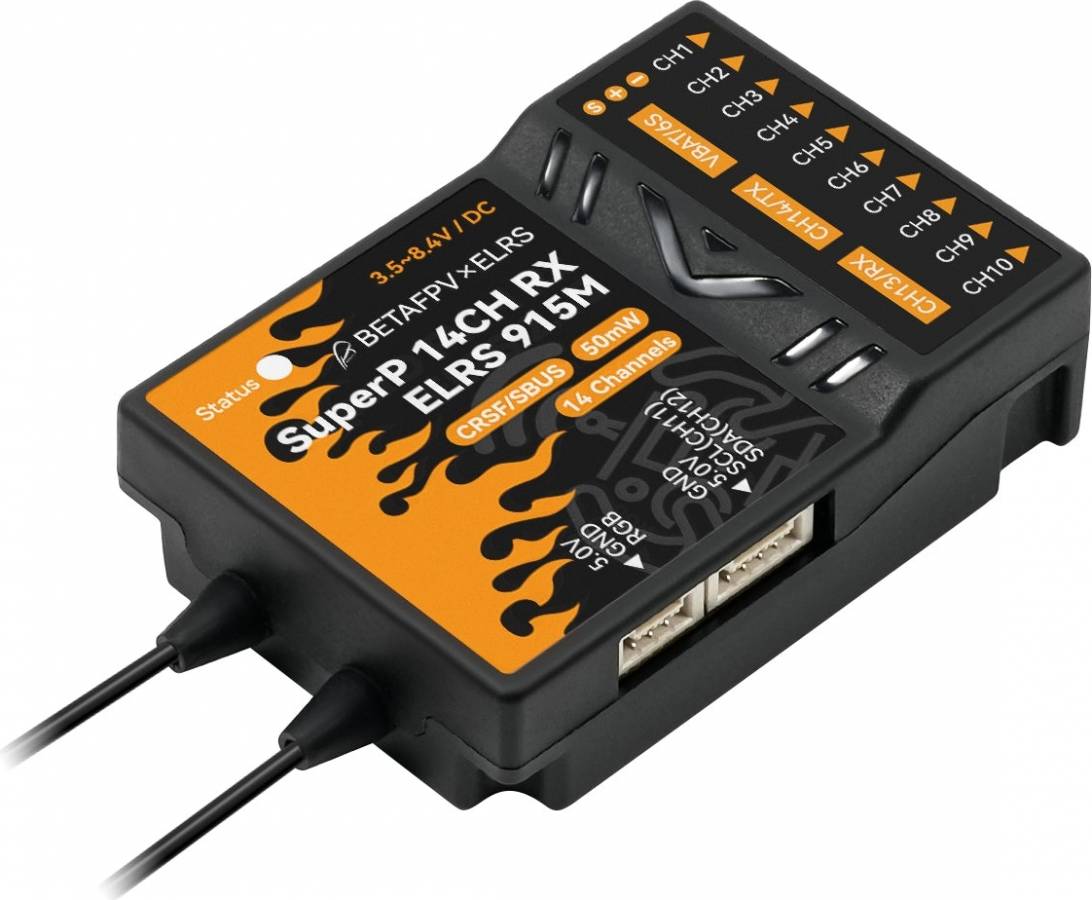

SuperP 14CH Diversity Receiver has been designed not only for long-range flying, aerial photography but also suitable for the application of fixed-wing, helicopters, RC cars, boats and etc. It has TCXO oscillator, two antennas, dual receiver chains, and Plug-N-Play ports, and adds more features, which support 14 channels for the external barometer, RGB light strip, and other external sensors that are currently under development. It offers 2.4GHz, 915MHz and 868MHz versions, and greatly fulfills the requirements of reliability for long-range flying, aerial photography, or FPV freestyle tricks. With this receiver, users are able to get a more stable and reliable experience on RC models.
Package
1 SuperP 14CH Diversity Receiver (2.4GHz/915MHz/868MHz)
2 150mm Monopole Antenna (2.4GHz)
2 150mm Dipole T Antenna (915MHz/868MHz)
1 GH2.0 3-Pin Cable
1 GH2.0 4-Pin Cable
1 Y Splitter Cable for Servo
1 Voltage Test Cable
1 User Manual
