Nano Tx Module ELRS 915MHz
|
click to enlarge
|
But only from... BETAFPV
All items from... BETAFPV
BETAFPV Nano RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speed, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
Specification
Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz)
25Hz/50Hz/150Hz/250Hz/500Hz (2.4GHz)
RF output power: 100mW/250mW/500mW
RF output power: 0.3mW/Mhz 20mW MAX (Japan MIC version)
Frequency bands (Nano RF Module 2.4G version): 2.4GHz ISM
Frequency bands (Nano RF Module 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V~12V
USB port: Type-C
Package

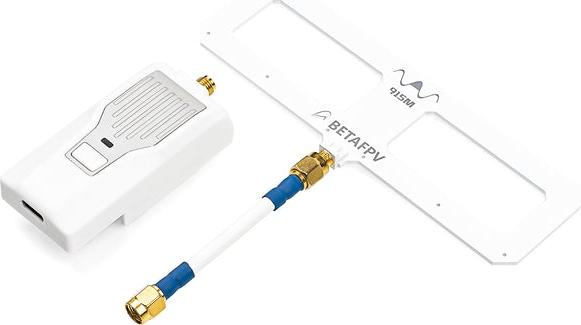

1 BETAFPV ELRS Nano TX module
1 BETAFPV Moxon antenna
1 Nano TX module user manual
|
|
|
|
