BTA010500121

LAVA 1506-4200kV Brushless Motors (1)

Product Info
BETAFPV

BTA010500121

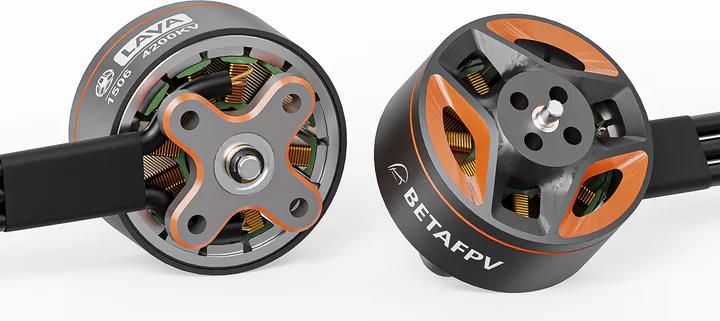

LAVA 1506-4200kV Brushless Motors (1)
By BETAFPV
$20.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Mutlirotor Motors
But only from... BETAFPV
All items from... BETAFPV


 Inventory Status Legend
StockStock availability for on-line ordering
0
$20.99
Warehouse ?
StockStock availability for pick up
0
$20.99
Warehouse ?
0
$20.99
Store - Stratford ?
0
$20.99
Store - Edmonton ?
0
$20.99
Store - Mississauga ?
0
$20.99
Store - Ottawa ?
0
$20.99
Store - Oshawa ?
0
$20.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
4200 KV RPM/Volt
Motor Kv:
20 mm
Can Diameter:
15 mm
Can Length:
1.5 mm
Shaft Diameter:
4 mm
Shaft Length:
13.6 g
Weight:
19.6 A
Max Current:
313.44 W
Watts:

FEATURES

The LAVA Series 1506 Brushless Motors are made for 4S 2.5'' drones, providing smoother torque for better performance. When paired with the GF D63 3-Blade Propellers (1.5mm shaft) and the F722 35A AIO V2 Flight Controller, it allows pilots to freestyle with ease. This setup can handle tough drone competitions and professional film-making needs, offering an excellent flying experience and high-quality footage. It's designed to make 4S 2.5'' drones more energy-efficient and effective during flight.

Designed for Power and Performance:
Specifically engineered for 4S 2.5" quads, the LAVA Series 1506 Brushless Motors provide a significant increase in power, enabling the Pavo25 V2 to perform at its peak potential. These motors are built to handle intense maneuvers and maintain top-tier performance during freestyle flights.

Efficient Power System with GF D63 Propellers:
The GF D63 3-Blade Propellers (1.5mm shaft) are an ideal match for the LAVA Series motors, creating a highly efficient power system that balances power output with reduced noise levels. This combination ensures smooth, controlled, and quieter flights, making it perfect for both racing and cinematic flying.

Thrilling Flight with F722 35A AIO V2 Flight Controller:
Pairing the LAVA Series 1506 motors with the F722 35A AIO V2 Flight Controller gives pilots a powerful and immersive flight experience. The advanced flight controller allows for precise maneuverability and responsiveness, enhancing the overall performance of the quadcopter.

Boosted Thrust and Energy Efficiency:
Compared to the 1505 4600KV Brushless Motor, the LAVA Series 1506 offers a 15g increase in maximum thrust, ensuring better acceleration and stability. The enhanced thrust provides smoother power delivery and improved energy efficiency, leading to longer flight times and a more refined flying experience.
The increased thrust and efficiency enable pilots to push their quadcopters to new heights, performing more aggressive maneuvers with greater confidence and control.

In conclusion, the LAVA Series 1506 Brushless Motors, when combined with the GF D63 Propellers and the F722 35A AIO V2 Flight Controller, deliver a powerful, energy-efficient system that significantly enhances the performance of the Pavo25 V2 Brushless Whoop Quadcopter. This setup ensures smoother, more controlled flights with improved thrust, making it an excellent choice for freestyle and racing enthusiasts alike.

Package

1 * LAVA Series 1506 4200KV Brushless Motors
4 * M2 * 5 Hex Flat Head Screw
4 * M2 * 7 Hex Flat Head Screw
