SPECIFICATIONS
26 mm
Length:
26 mm
Width:

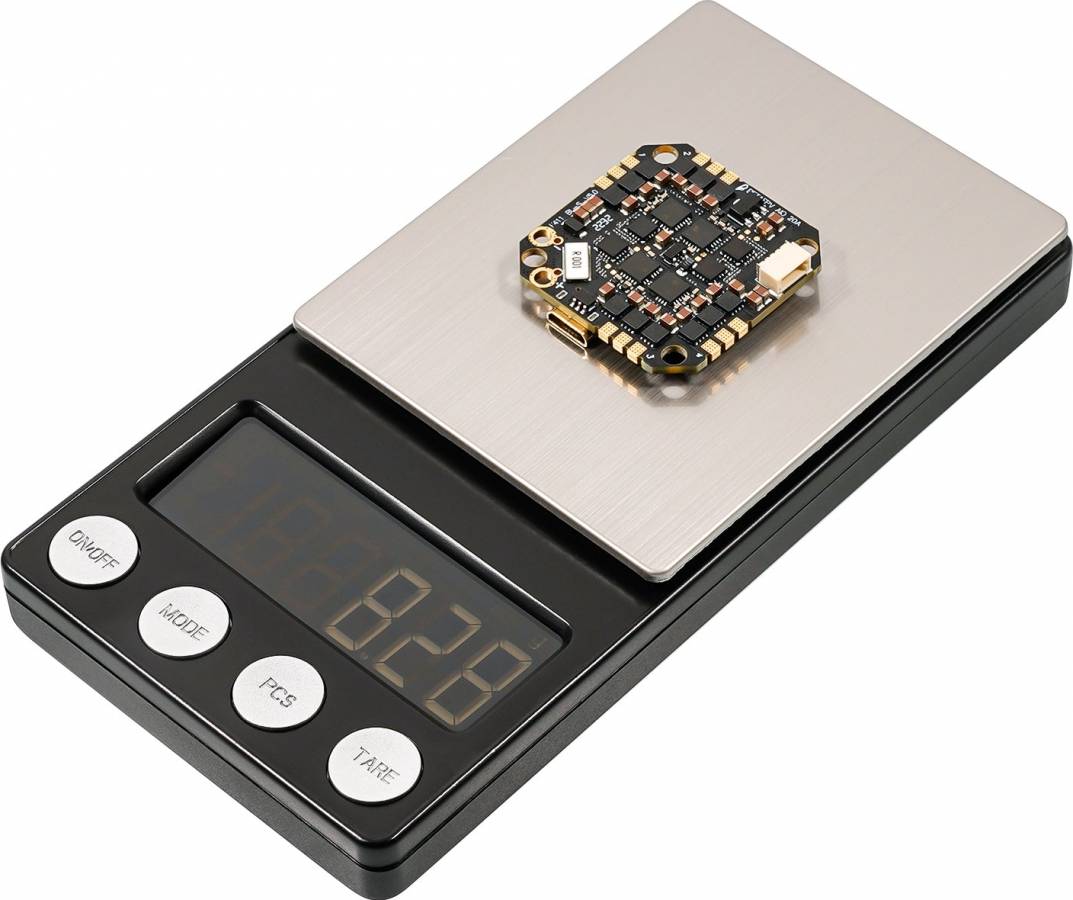

8.15 g
Weight:
FEATURES

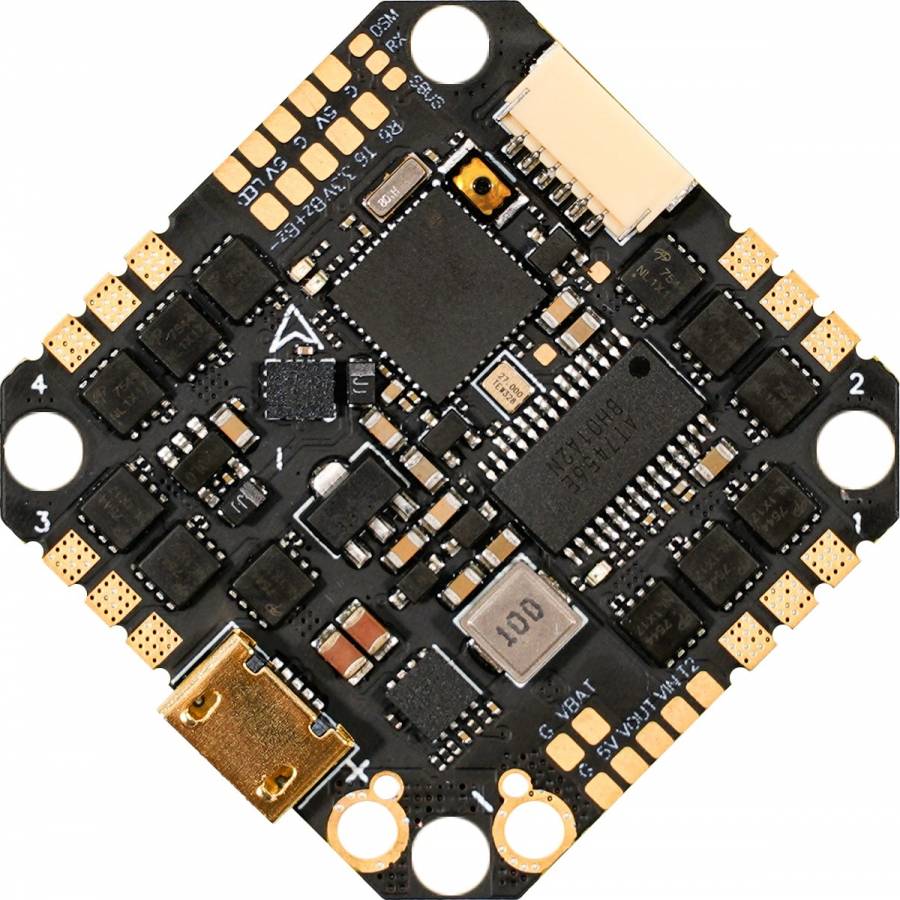

Convenient Soldering: The V5 board provides a large pad for easy soldering of external electronics. Additionally, it features plug-and-play ports for the receiver and HD digital VTX, minimizing solder work and ensuring a hassle-free installation.
Robust Power Handling: Equipped with high-quality MOSFETs, the F411 4S 20A FC V5 can handle a continuous current of 20A and reach a peak current of 25A, ensuring reliable and efficient power management.

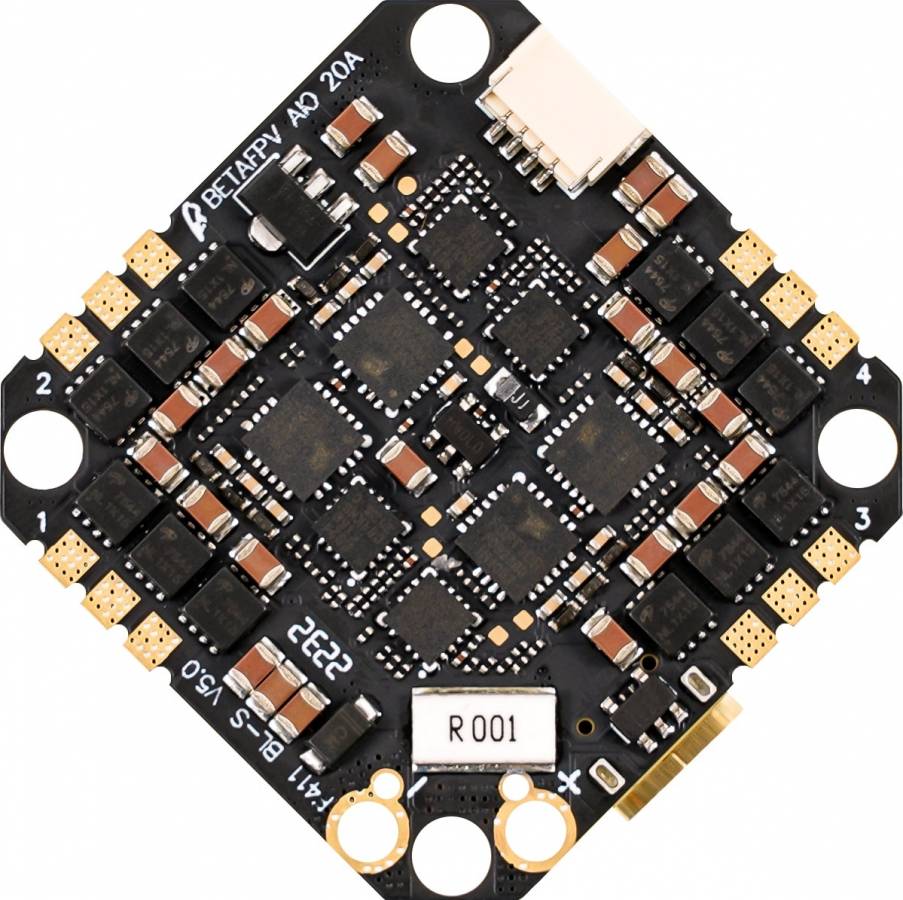

Enhanced Motor Solder Pads: The motor solder pads on the V5 board are reinforced with thick copper and edge plating technology, reducing resistance and allowing for higher current on motors.
Convenient UART Ports Layout: The F411 4S 20A FC V5 reserves UART ports for easy connectivity – UART1 for RX, UART2 for DJI OSD or Analog VTX, and UART6 for spare usage, providing convenience for pilots during soldering.

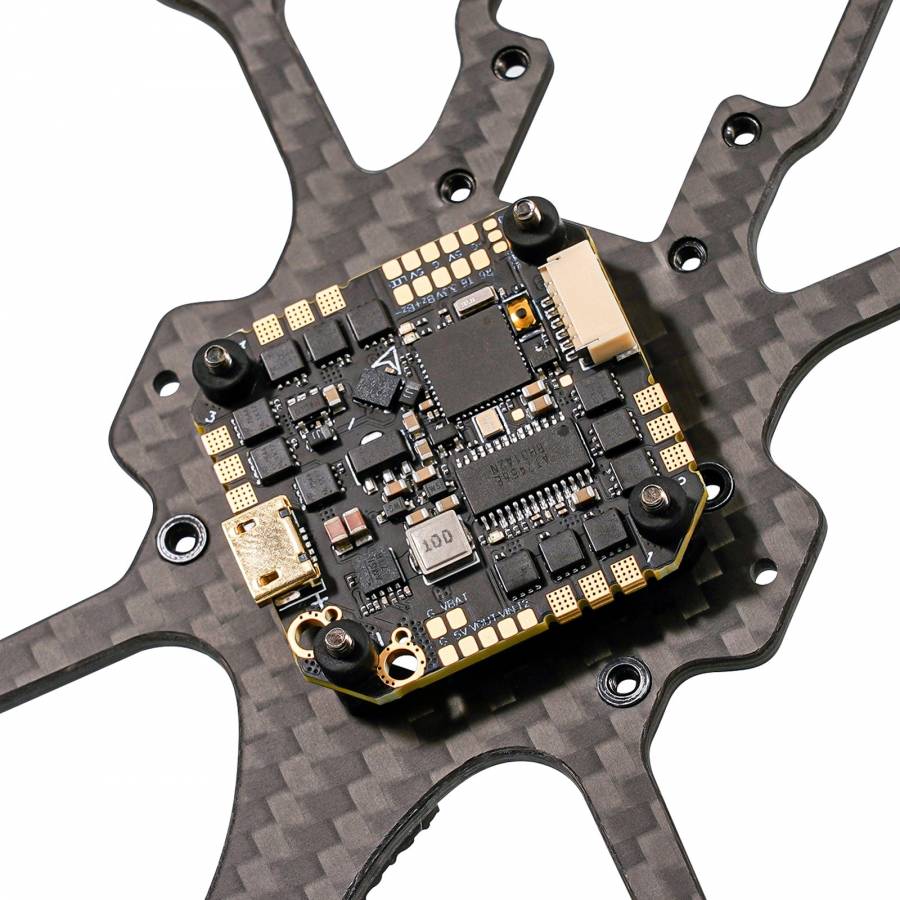

Versatile Mounting Compatibility: With a 25.5*25.5mm whoop mounting pattern, this board is suitable for both toothpick drones and cinematic whoop quadcopter frames like the Pavo25 and X-knight 35.
Building on the foundation of the F411 chip, the V5 FC board represents an upgrade from the F4 20A V3 FC board. The F411 4S 20A Toothpick Brushless Flight Controller V5 introduces the BMI270 gyro, replacing the MPU6000 found on the V3 board. Featuring two integrated plug-and-play ports for the receiver and HD digital VTX, this board offers easy installation with reduced soldering requirements. Additionally, its high-quality PCB material and enhanced production process ensure durability, making it a solid investment for long-lasting use.
