Lite 1-2S Brushless Flight Controller (Silverware Firmware) Fr

Product Info | Optional Items
BETAFPV

BTA003138522
Lite 1-2S Brushless Flight Controller (Silverware Firmware) Fr
By BETAFPV
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Helicopters, Flight Control Systems
But only from... BETAFPV
All items from... BETAFPV


 Inventory Status Legend
StockStock availability for on-line ordering
0
$44.99
Warehouse ?
StockStock availability for pick up
0
$44.99
Warehouse ?
0
$44.99
Store - Stratford ?
0
$44.99
Store - Edmonton ?
0
$44.99
Store - Mississauga ?
0
$44.99
Store - Ottawa ?
0
$44.99
Store - Oshawa ?
0
$44.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Frsky D8/Futaba SPI Receiver for Brushless Drones
$12.99

FEATURES

For fans of Silverware firmware, now you could try the new updated Lite 1-2S Brushless Flight Controller. Come with the LiteSilver firmware and integrated 25mW VTX, this lite 1-2S FC is used on FPV whoop racing advanced kit 2, and it is a great choice for pilots to get into the whoop FPV racing hobby.

Features

  • Come with the LiteSilver firmware, this lite 1-2S FC totally supports a 1-2S brushless motor, which is the most simple and affordable method to try the whoop FPV racing hobby.
  • Integrates with the 25mW VTX, this board is ultralight only 3.81g, perfectly suitable for weight-sensitive drones such as FPV whoop racing advanced kit 2.
  • Supports Acro mode, Levelmode, Racemode_Angle, Racemode_Horizon, Horizonmode, and Turtle mode. Also, it has the ability to change settings for custom builds or to adapt the personal preferences by OSD menu.
  • Support Smartaudio and USB firmware updating, it is more convenient for pilots to use.
  • Build-in OSD, allows you to select viewing options, such as the voltage of the battery, flight time, flight mode, and setting menu. Includes OSD menu, supports PID tuning, motor rotation changing, and channel mapping of AETR/TAER switching via OSD menu.


Specification of Lite 1-2S FC

    Item: Lite 1-2S brushless flight controller

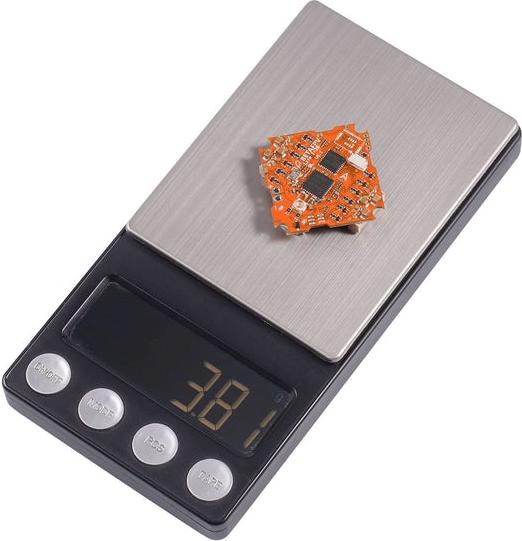

    Weight: 3.81g  (without antenna and BT2.0 connector)
    VTX Power: Integrated 25mW VTX
    CPU: MM32F103KBU6
    Six-Axis: MPU6000
    Firmware version: LiteSilver

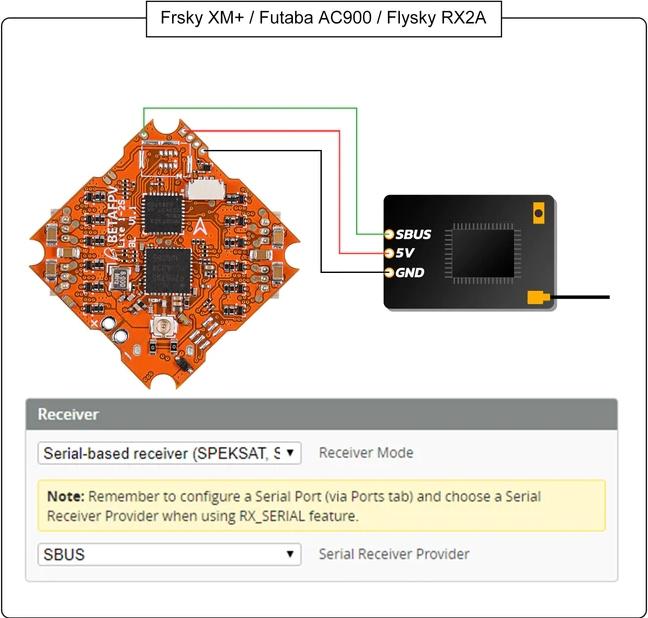

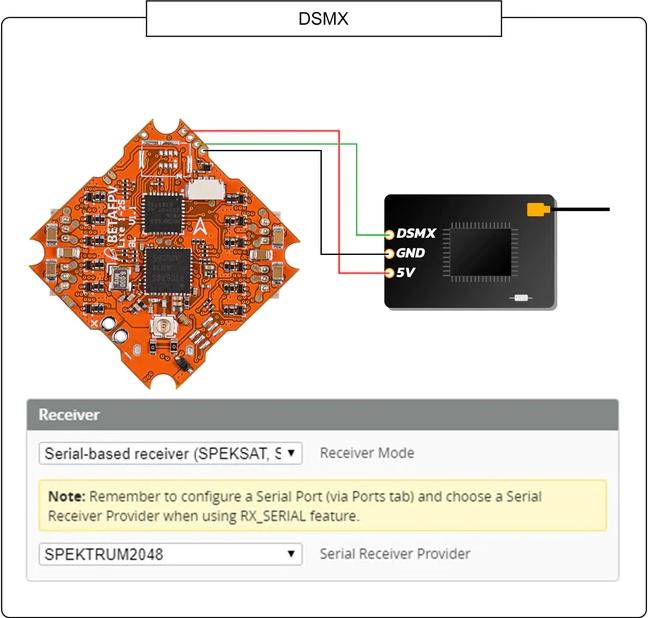

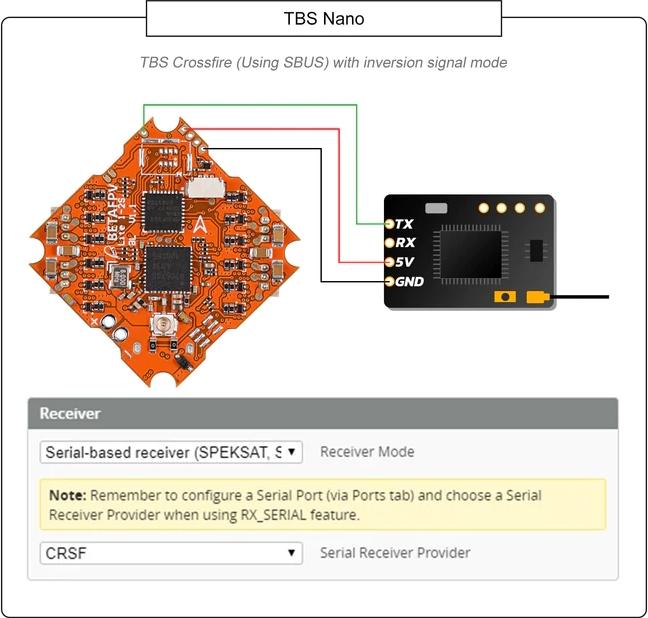

    Receiver: Support external SBUS/DSMX protocol receiver or SPI CC2500 receiver module (compatible with Frsky_D/Frsky_X_FCC/Frsky_X_LBT)
    Motor Pin Connecter: 1.25mm Header Pins
    Mounting hole size: 26mm x 26mm, whoop mounting pattern

Specification of ESC

    Built-in ESC with 5A continuous and peak 6A current
    Input voltage: 1-2S Lipo
    ESC firmware: BLHELI_S S_H_50_REV16_7.HEX
    OSD: BETAFPV LiteOSD
    Signal support: D-shot150, D-shot300, D-shot600(Default), Oneshot125
    Recommend motor: 1102 18000KV motor


Recommended Parts of Lite 1-2S FC (Not Included)

    Battery: BT2.0 300mAh 1S Battery / BT2.0 450mAh 1S Battery / BT2.0 260mAh 1S Battery/ BT2.0 300mah 2S Battery
    Frame: Meteor75 Frame
    Props: 31mm 4-Blades props / 40mm 4-blades props
    Motors: 1102 18000KV motor
    Camera: C01 Camera / C01 Pro Camera
