FEATURES
Specification

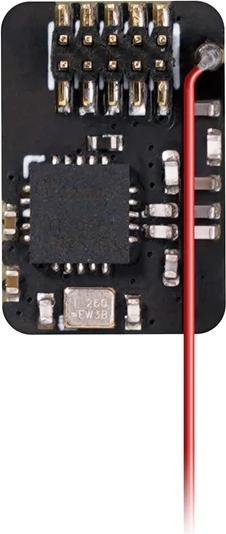

Item: SPI Frsky Receiver
Chip: CC2500
Weight: 0.43g
Connection Way: Pin-Connector
Support Protocol: Frsky D8, Futaba
Dimensions: 13.5mm*9mm
Recommended FC: F4 1S AIO FC, Lite 1-2S Brushless FC

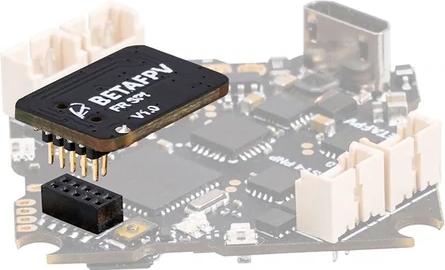

This SPI receiver comes with Plug & Play port, and is specially designed for the F4 1S AIO FC(No Rx) and lite 1-2S Brushless FC(NO Rx), no soldering work needed, super easy to install.
Notice: The default protocol is Frsky D8 (Frsky D16 protocol is not supported). If pilots need to switch the protocol to FUTABA, please kindly click the tutorial to check details.
