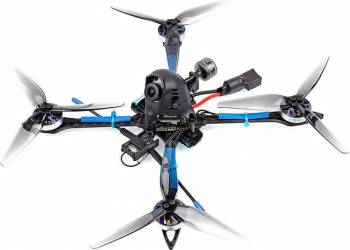

The X-Knight 5'' Toothpick Quad (HD Digital VTX) is BETAFPV's pioneering ultralight 6S toothpick drone with HD digital VTX. The vista kit ensures a long transmission range with stable and clear HD video. Equipped with an F4 35A AIO FC, new 2004 motor, and HQ 5025 props, this toothpick drone delivers insane flight power, supporting a variety of FPV freestyle tricks for an enjoyable flying experience.
Highly recommended using the 550mAh 6S battery, it will give your drone more power and speed. X-Knight 5'' HD Digital VTX can get 11 min smooth flight or 4min flight of FPV freestyle tricks with this battery.
Item: X-Knight 5'' Quad(HD Digital VTX)
Weight: 176.8g (without battery)
Power system: 6S
FC&ESC: F4 35A AIO Brushless FC
Motors: 2004 1700KV Brushless Motors
Props: HQ 5025 3-Blade Props
HD Digital Camera & VTX: Caddx Vista
Battery: 550mAh 6S 75C Battery (Not included)
Frame: X-Knight Carbon Fiber 5'' V2 Frame Kit?T800?
Canopy: Canopy for Mini Camera V3
Receiver Option: Frsky FCC
Flight time: 11min smooth flight or 4min flight of FPV freestyle tricks with 550mAh 6S battery
Flight Controller
Toothpick F4 35A AIO Brushless FC - The board is the first BLHeli_32 ESC 35A All-in-one toothpick FC on the current market. It can handle 35A continuous current(40A burst) and provide with massive levels of performance capability, but it still maintains ultralight only 7g. In addition, this board supports a 2-6S Lipo battery, perfectly suitable for the 4''-5'' toothpick drone.
Caddx Vista
The Caddx Vista HD digital video transmitter can work with DJI FPV camera, goggles, and remote controller. The total weight (with camera and antenna) is 35g only, about 20g lighter than the DJI FPV unit. Besides, it is smaller and designed to suit for whoop drones. With this vista kit, the max range is up to 4 kilometers. BETAFPV mini canopy V3 is suitable for the Caddx Vista greatly. With injection molded process and PE material. The canopy will perfectly protect the Caddx Vista camera.
Motors
2004 1700KV Brushless Motors is a lightweight 6S motor. It only weights 16.4g / 1pc. Best matched with the HQ 5025 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with Toothpick 35A AIO Brushless FC, it will provide you enough output power.
X-Knight Carbon Fiber 5'' Frame V2 Kit
X-Knight Carbon Fiber 5'' V2 Frame Kit - Our first assembled 5'' frame kit, which adopts T800 carbon material becomes ultimate durability while maintaining minimal weight 26.44g. It consists of arms, bottom plate, and top plate, which allows you to replace the damaged part. Meanwhile, the top plate comes with press nuts to make the installation process easier.
Includes
1 * X-Knight 5'' Quad (HD Digital VTX)
1 * HQ 5025 3-Blade Props(2CW+2CCW)
1 * Set of M2*7 Screws
There are no batteries included in the package. High recommend at least 550mAh 6S 75C Battery.
