The X-Knight 3'' Digital VTX features a compact 140mm wheelbase, enhancing obstacle avoidance and optimizing flight performance. Weighing just 126.7g (without the battery), it maintains powerful performance for various FPV freestyle tricks. Equipped with the Caddx Vista kit, this drone ensures a long transmission range and delivers stable, clear HD video. For those seeking a drone that seamlessly combines HD video recording with optimal FPV flight, the X-Knight 3'' HD Digital VTX Toothpick Quad is the ideal choice.
Item: X-Knight 3'' Digital VTX

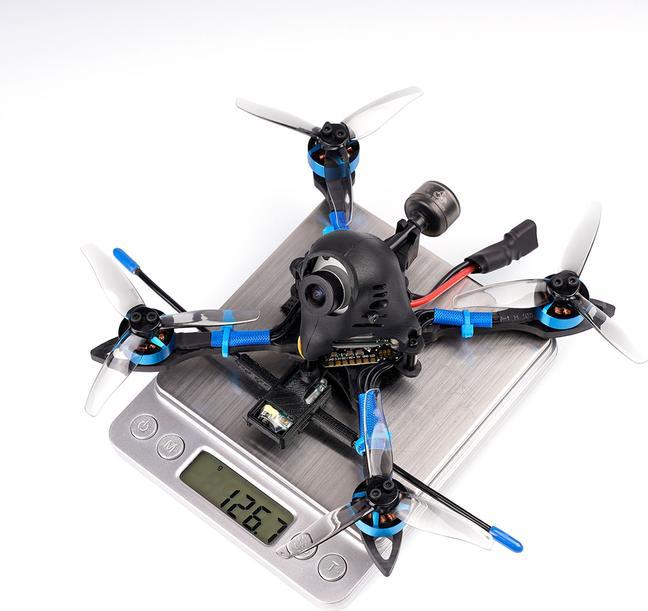

Weight: 126.7g (without battery)
Power system: 4S
FC&ESC: F4 AIO 12A Toothpick Brushless FC
Motors: 1404 3800KV Brushless Motors
Props: Gemfan 3016 3-Blade Props
HD Digital Camera & VTX: Caddx Vista
Battery: 4S 450mAh Battery (Not included)
Frame: X-Knight Carbon Fiber 3'' Frame Kit
Canopy: Canopy for Mini Camera V3
Receiver Option: Frsky FCC
Flight time: 6min smooth flight or 3min flight of FPV freestyle tricks with 450mAh 4S battery

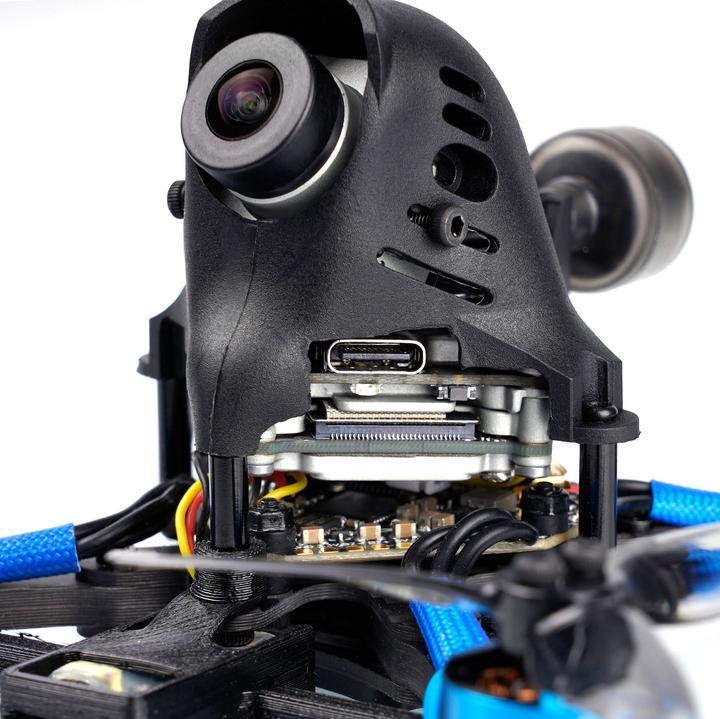

Caddx Vista
The Caddx Vista HD digital video transmitter can work with DJI FPV camera, goggles, and remote controller. The total weight (with camera and antenna) is 35g only, about 20g lighter than the DJI FPV unit. Besides, it is smaller and designed to suit for whoop drones. With this vista kit, the max range is up to 4 kilometers. BETAFPV mini canopy V3 is suitable for the Caddx Vista greatly. With injection molded process and PE material. The canopy will perfectly protect the Caddx Vista camera.
Flight Controller
F4 AIO 12A Toothpick Brushless FC- Integrated with a Betaflight MATEKF411RX processor FC, Betaflight OSD and 2-4S 12A ESC, support 4S battery for the fast-flying experience.

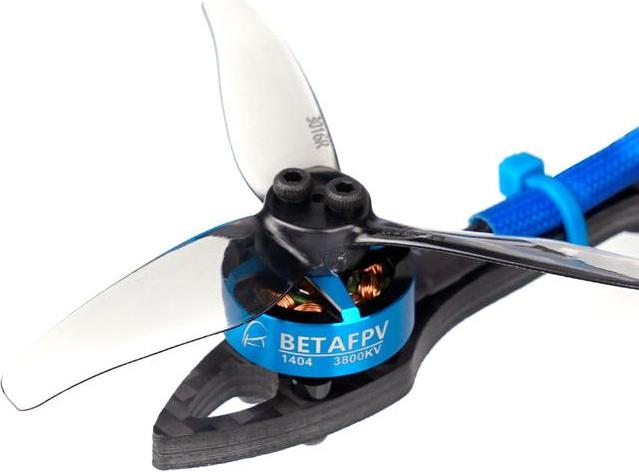

Motors & Props
1404 3800KV Brushless Motors is a lightweight motor that is suitable for a 3-4inch drone. It only weighs 9.66g/pc. Perfectly matched with the Gemfan 3016 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with Toothpick 12A AIO Brushless FC, it will provide you enough output power.

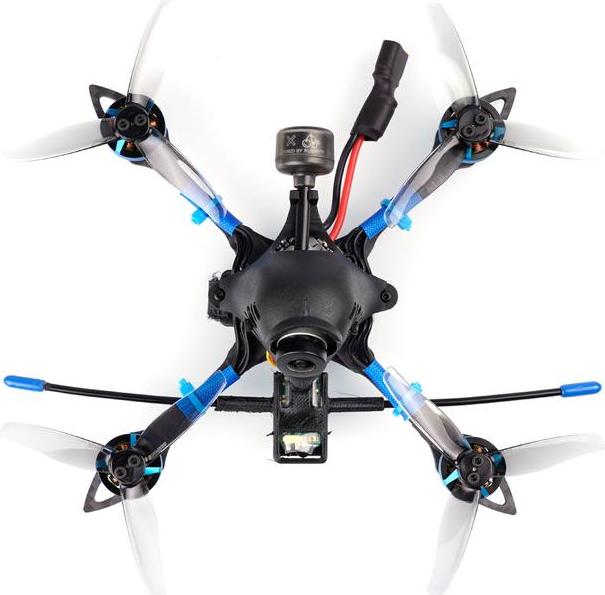

X-Knight Carbon Fiber 3'' Frame Kit
X-Knight Carbon Fiber 3'' Frame Kit which adopts T800 carbon material becomes ultimate durability while maintaining minimal weight 22.79g. It consists of arms, bottom plate and top plate, which allows you to replace the damaged part. Meanwhile, the top plate comes with press nuts to make the installation process easier.
Includes
- 1 * X-Knight 3inch Quad(HD Digital VTX)
- 1 * Gemfan 3016 3-Blade Props(2CW+2CCW)
- 1 * Pack of M2 Screws
