F4 AIO 1S Brushless Flight Controller (FrSky)

Product Info | Optional Items | Fits What?
BETAFPV

BTA003137851
F4 AIO 1S Brushless Flight Controller (FrSky)
By BETAFPV
$84.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
No Picture Available

More like this... Multirotor Helicopters, Flight Control Systems
But only from... BETAFPV
All items from... BETAFPV


 Inventory Status Legend
StockStock availability for on-line ordering
1
$84.99
Warehouse ?
StockStock availability for pick up
1
$84.99
Warehouse ?
0
$84.99
Store - Stratford ?
0
$84.99
Store - Edmonton ?
0
$84.99
Store - Mississauga ?
0
$84.99
Store - Ottawa ?
0
$84.99
Store - Oshawa ?
0
$84.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
C02 Micro FPV Camera 1/4" CMOS 1200TVL
$23.99

FEATURES
  • Ultralight and Integrated VTX: This AIO board (SPI Frsky) is exceptionally lightweight at only 3.92g and features an integrated 25mW VTX. Ideal for 1S weight-sensitive drones like Meteor65 HD and HX100 SE, it significantly reduces overall build weight.
  • Versatile Power System Support: The F4 1S AIO FC (No Rx) not only incorporates a 25mW VTX but also supports a 1-2S power system. Perfect for weight-sensitive drones such as Meteor75 and Beta85 Pro2, offering flexibility in power configurations.

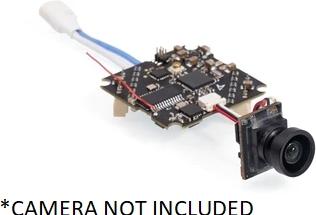

  • Easy Camera Integration: The AIO board includes a Plug & Play port for the C01 Camera, C01 Pro Camera, and BETAFPV Nano HD Camera, eliminating the need for soldering and ensuring a super convenient installation process.
  • Enhanced Night Flying Experience: Featuring 2 RGB LED indicators, this board adds an incredible light effect to the drone for an enhanced visual experience during night flights.
  • Robust Power Handling: Capable of handling 5A continuous current (6A burst) and supporting 1S lipo batteries, this board enhances the drone's flight performance, providing increased strength during operation.
  • Efficient Power Delivery with BT2.0 Connector: Equipped with a BT2.0 connector, the board addresses voltage sag concerns, ensuring more efficient discharge and better overall performance in terms of power and responsiveness.

F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

Specification of F4 1S AIO FC (SPI Rx)

    Item: F4 1S AIO FC (Frsky Rx)
    Weight: 3.92g (without antenna and BT2.0 connector)
    VTX Power: 25mW
    CPU: STM32F411CEU6 (100MHZ )
    Six-Axis: MPU6000 (SPI connection)
    Firmware version: betaflight_4.2.0_STM32F411
    Receiver: Support Frsky
    Motor Pin Connecter: 1.25mm Header Pins
    Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame

Specification of ESC


    Built-in ESC with 5A continuous and peak 6A current
    Input voltage: 1S Lipo
    ESC firmware: O_H_5_REV16_8.HEX
    OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
    Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
    4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)

Tech Note:  this product uses a built in SPI type receiver and will NOT bind to newer FrSky ACCESS transmitters or those running the latest ACCST 2.0 firmware.  It can ONLY bind to FrSky branded transmitters running ACCST 1.0 firmware.  It will also bind to Jumper/Radiomaster transmitters capable of transmitting in D16/D8 modes.
