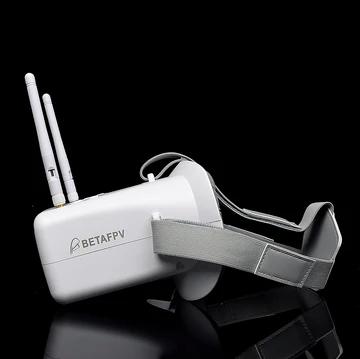

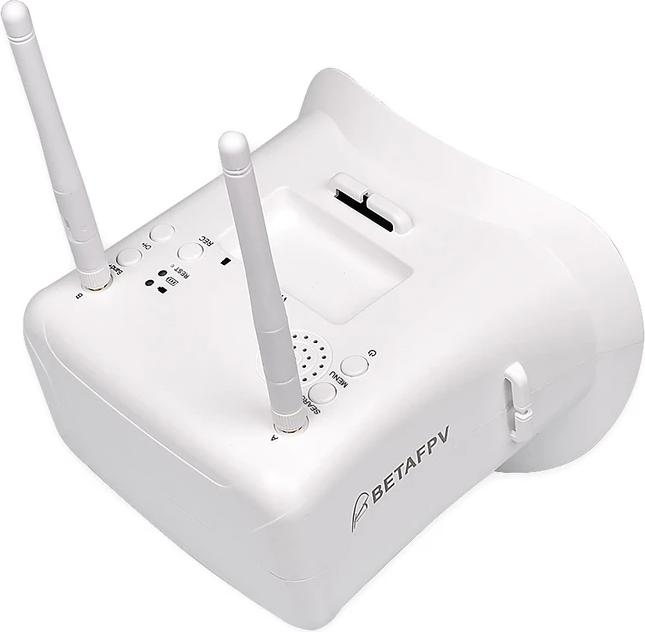

BETAFPV VR01 FPV Goggles - a First-Person-View Goggle with 4.3 inches 800*480px high brightness LCD which will allow you to experience a bright world without warped and blurred images. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, comfortable like cotton and suitable for all age ranges.
- BETAFPV VR01 FPV Goggles is with 4.3 inches 800*480px high brightness LCD, which is specially tuned for FPV racing or Model airplanes.

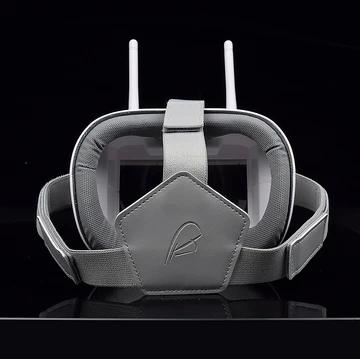

- Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
- Come with an advanced auto-searching function and show you the working frequency on screen.
- 92% transparent lens adopted, no distort, no blur on the adage of the screen.
- Lightweight only 375g, it also comes with a 2hr 2000mAh battery, bringing great endurance. RTF for any scale, racing, Model airplane game.
Specification
BODY
Dimension: 155x144x113mm
Weight: 375g with 2hr 2000mAh battery
Belt: three-Ways adjustable belt
SCREEN
screen size: 4.3 inch
Screen resolution: 800*480 (No blur after enlarge by the lens)
Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 12 O’CLOCK
LENS
2.8x boost of the video to acquire intense feel-in-there video
92% transparent rate no distort of light
JACK
Input CVBS
Headphone sound output
TF Card(C10) Max32G
USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment
BATTERY
Built-in 3.7V/2000mAh high-capacity polymer battery, LED stays red while charging. When charging is completed, the LED will turn to bright green.
Each full charge revive is around 2 hours working time

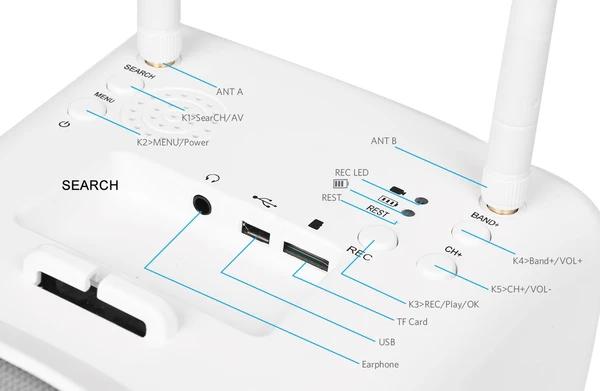

Operation Instructions

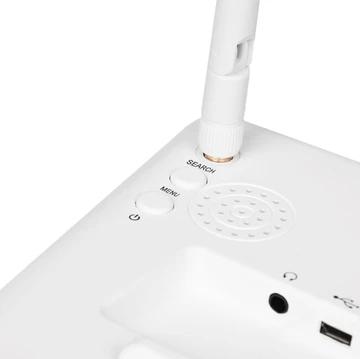

Key1>SearCH/AV
Default mode, Short press for automatically search signals to certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume to adjust OSD.
Key2>MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is used as the Return.
Key3>REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is used as the confirmed.<
Keyt4>Band+/VOL+

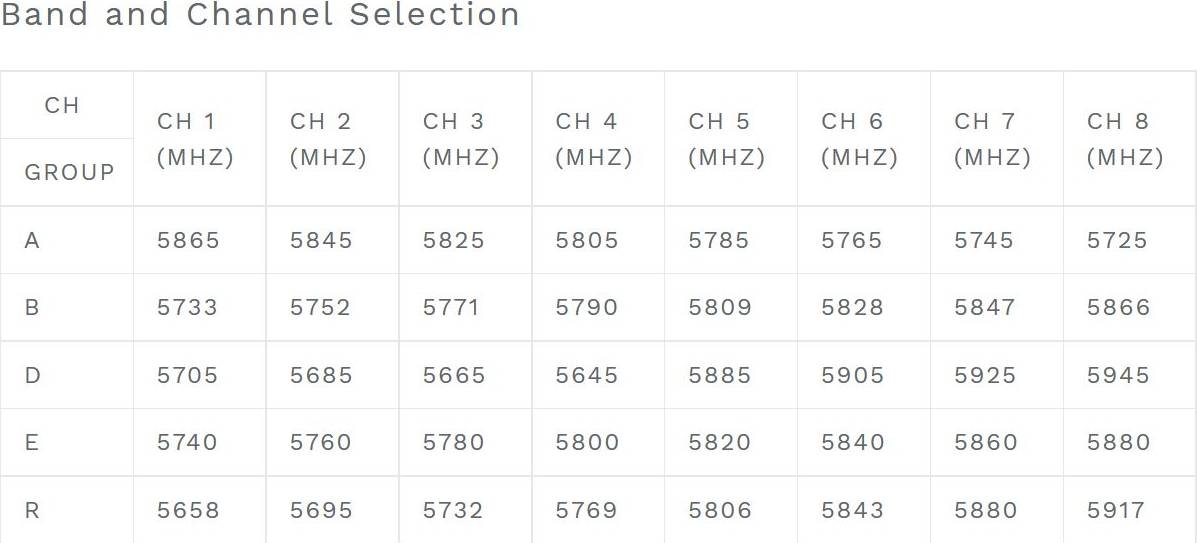

Default mode, Short press for Band+ option A, B, D, E, F, R cycle selection; Long press for Volume control -; MENU pressed, this button is used as the UP.
Key5>CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is used as the DOWN.
