SPECIFICATIONS
4 in
Length:
2 in
Width:
1 in
Height:
4 oz
Capacity:
FEATURES

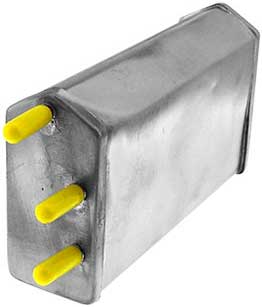

Front tube in wedge is the fuel pickup
Inside top tube is overflow when filling and must be capped for operation
Center tube is the uniflow vent for filling and must remain open and toward air-stream during operation
Brodak Metal Fuel Tanks are individually constructed using high-quality tin-plated steel and brass fill, vent and feed tubes.
Thanks to a specially developed soldering process, these tanks are soldered using precise temperatures so that there are very clean solder lines, creating tanks with much better seals and lighter weight.
Because Brodak does not use excessive heat in the process, there is virtually no distortion of the metal, adding to the tank's durability.
