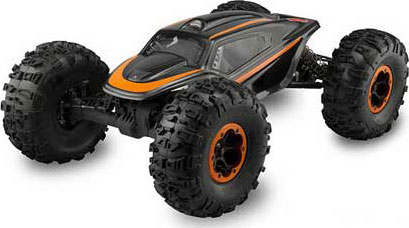

XR10 1/10 4WD Rock Crawler Comp Kit
RESOURCES
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
12.8 in
Length:
5.25 in
Width:
5.25-6.72 in
Height:
1.75 - 3.40 in
Ground Clearance:
12.15 in
Wheelbase (max):
2 - 4 channels
Radio Requirements:
Single or dual motor
ESC Requirements:
Dual 540 size motors
Motors:
FEATURES
- Low profile design for extra ground clearance
- Front steering axle with the ability to clock the motor up/down
- Rear axle is 16mm narrower to squeeze through the obstacles
- Enclosed steering slide with adjustable tie rods to adjust toe in/out
- 8 degree kingpin angle to increase steering response
- Double sheer knuckles with replaceable aluminum steering arm
- Adjustable C’s with splined design to provide caster adjustment in 15 degree increments
- Oversized 12.5mm universals with 4mm and 2.5mm cross-pins
- 45 degrees of steering out of the box
- With the use of dual motors you can easily adjust your front and rear gear ratios independently for fine tuning
- Aluminum chassis plates with tapered molded nylon skid plate
- Chassis provides multiple upper link adjustment holes for suspension tuning
- Adjustable shock mounts for fine tuning ride height and driving style
- Removable electronics tray for easy maintenance and installation
- Waterproof receiver box with wire routing guides
- Multiple ESC mounting plates and configurations
- Low profile battery mount places the weight of the battery low and up front
- Oversized rod ends with large 7mm aluminum links sleeved in replaceable nylon
- Nylon upper links to remove unnecessary weight from the top of the suspension
- Full Ball bearings (Oversize differential bearings)
- Differentials: Locked style (spool)
- 72-103mm shocks: Includes aluminum bodies and 10mm machined piston
- Competition inspired Axial Hardline Body
- Optional Cutting Brakes for XR10 rear axle: Rear axle upgrade kit that will allow for individual drive of the right and left tire on the rear axle
- Axial 2.2 Competition Beadlocks Wheels
