SPECIFICATIONS
19.25 in
Length:
9.5 in
Width:
9.6 in
Height:
4.5 lbs
Weight:
3 in
Ground Clearance:
12.3 in
Wheelbase:
4WD Shaft Driven
Drivetrain:
Spektrum STX200
Radio Included:
Spektrum S605 metal gear waterproof
Servo Included:
35T 540 size
Brushed Motor Included:
147 x 44 x 32 mm
Battery Tray:
FEATURES

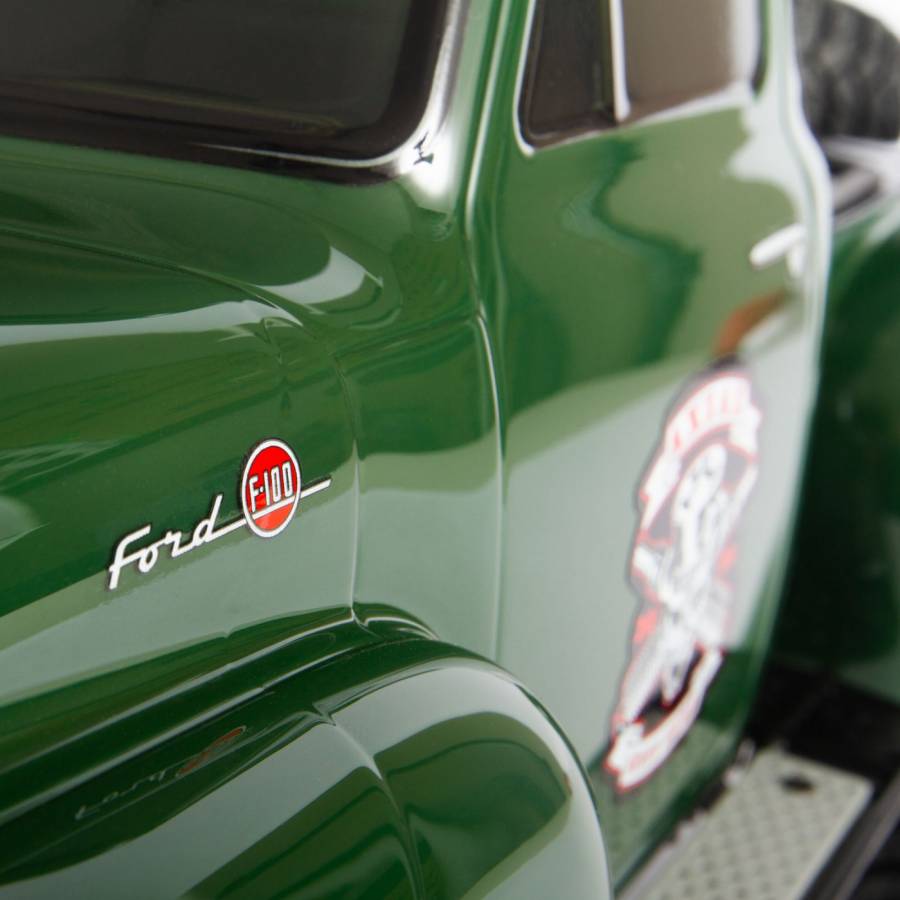

Licensed 1955 Ford F-100 body is mounted on the proven SCX10 II chassis
Licensed METHOD Hole Wheels provide durability and clean looks.
Licensed Maxxis Trepador tires are molded in R30 compound for a superior grip.
AR44 front and rear axles feature a single-piece design with molded truss for extreme durability.
High pinion design adds ground clearance, improves driveshaft angles and increases gear surface contact for greater durability.
Universal joint axles allow up to 45 degrees of steering and provide smoother action for an efficient, high-performance drivetrain.
Optimized gear ratio of 3.75 reduces the torque twist typically seen with other small pumpkin axle designs.

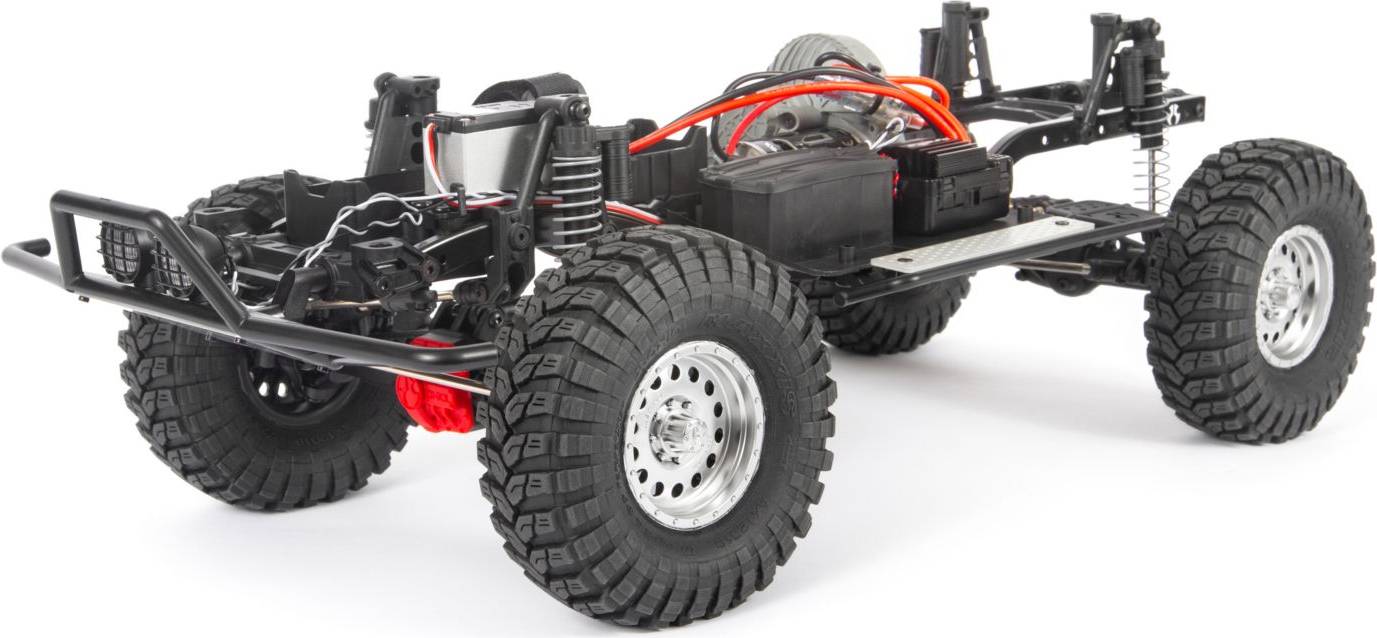

Realistic, high-strength C-channel chassis frame is made of durable steel with cross braces for reinforcement and rigidity.
Realistic shock hoops with multiple shock mounting positions let you adjust your suspension for maximum performance.
Adjustable battery tray accommodates batteries up to 32 x 44 x 147mm
Mounted to the steering servo is a metal servo horn for durability and sharper steering feel.
Suspension and steering have strong steel links with large M4 rod ends for durability.
Chassis mounted servo with adjustable servo mounting system improves scale looks.
Front suspension design nearly eliminates bump steer
Oil-filled, coilover shocks with threaded shock bodies allow you to tune the dampening rate.
AX10 transmission gearing ratio can be adjusted using different pinion and spur gear choices, allowing super high speed or competition-level crawling speed.
Dual slipper design uses a pad on each side of the spur gear for increased surface area, allowing more precise tuning and holding power.
3-piece WB8 HD Wildboar front and rear driveshafts feature a strengthened slider-floater tube which reduces flex and fatigue.
Waterproof receiver box located on the side plates allows easy access and low center of gravity.
Dynamite AW-5L ESC is 3S LiPo capable, yet easily switched “in the field” between LiPo and NiMH batteries.

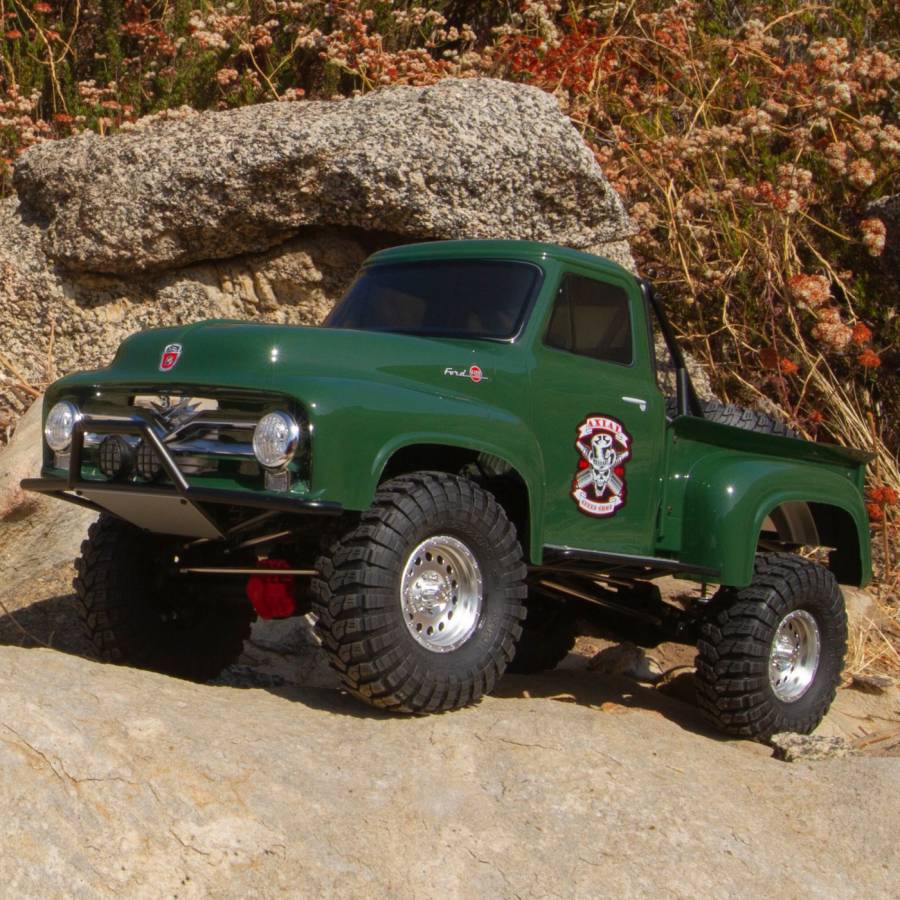

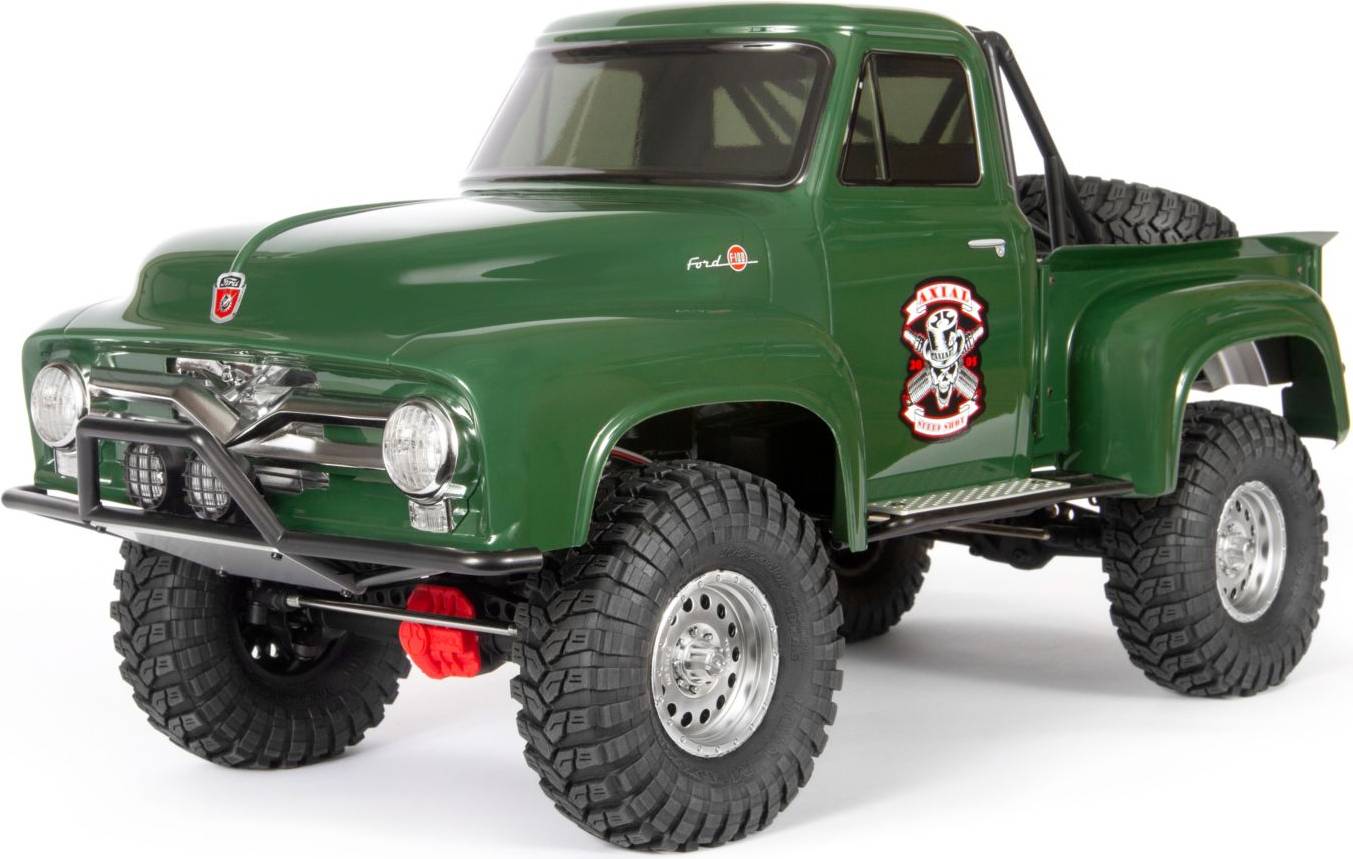

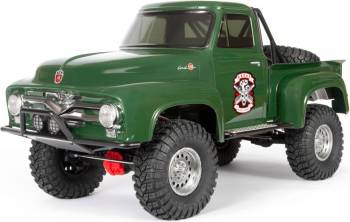

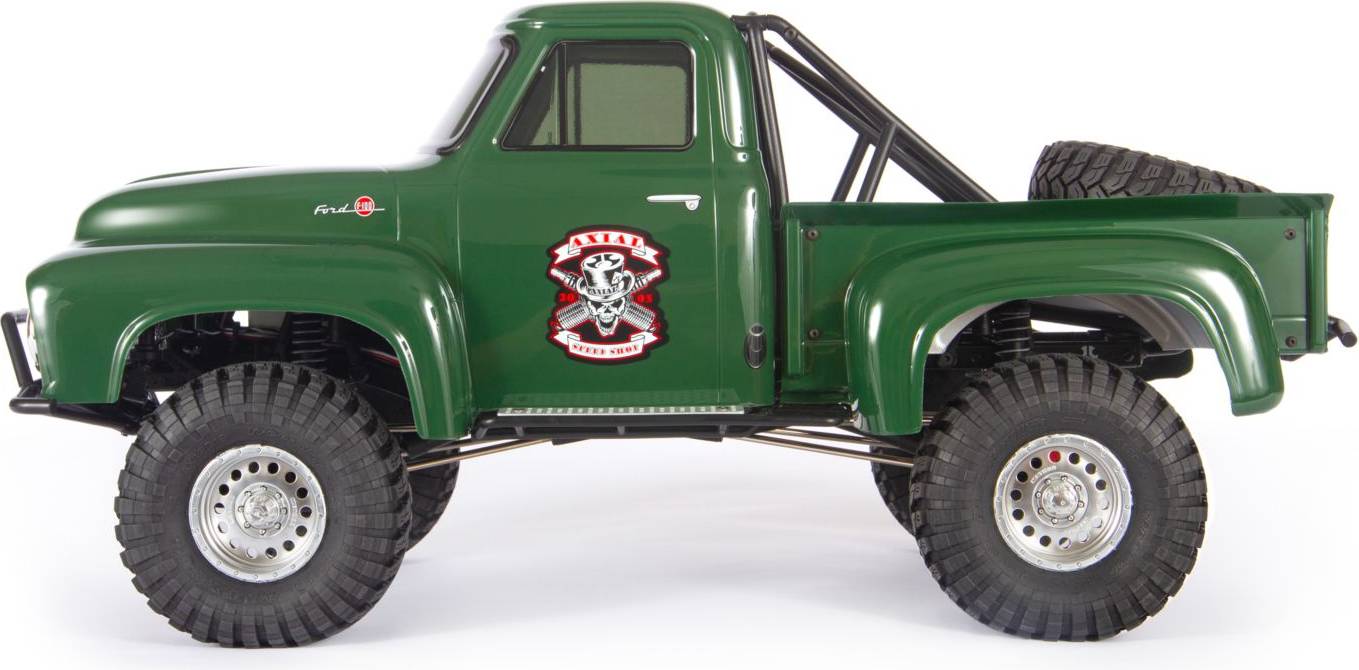

Axial unveils its first scale Ford body — an officially licensed, detailed 1955 Ford F-100 — as the topper for its latest trail performer featuring the SCX10 II 4X4 chassis.

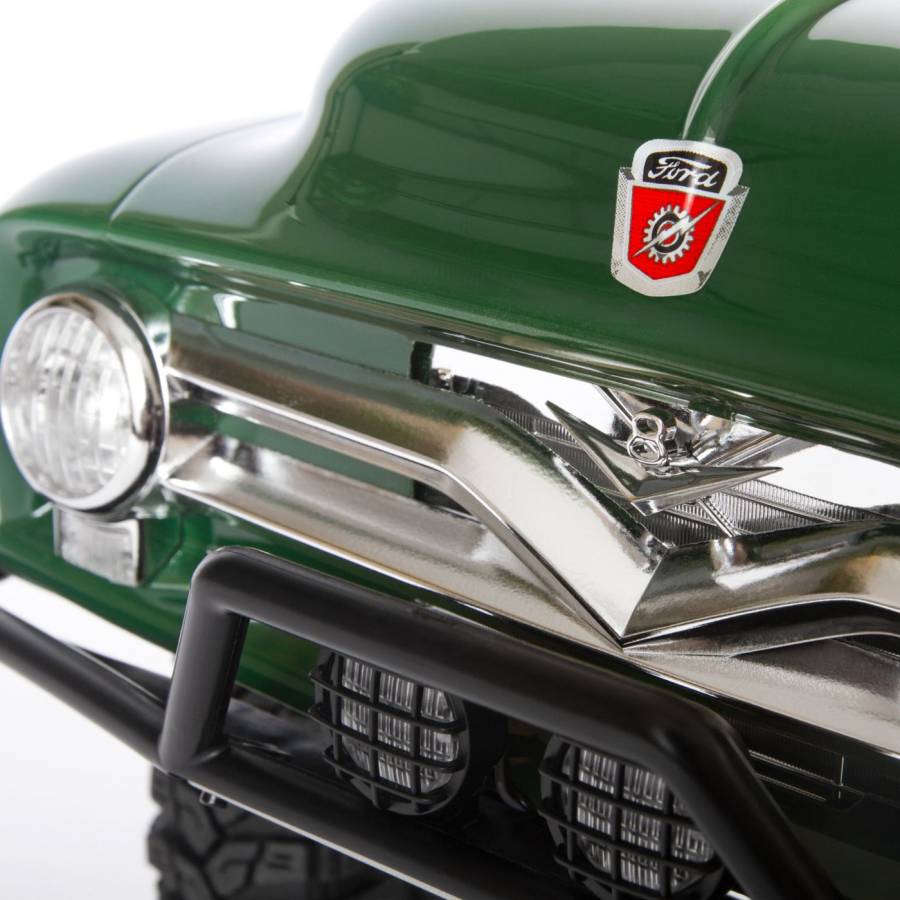

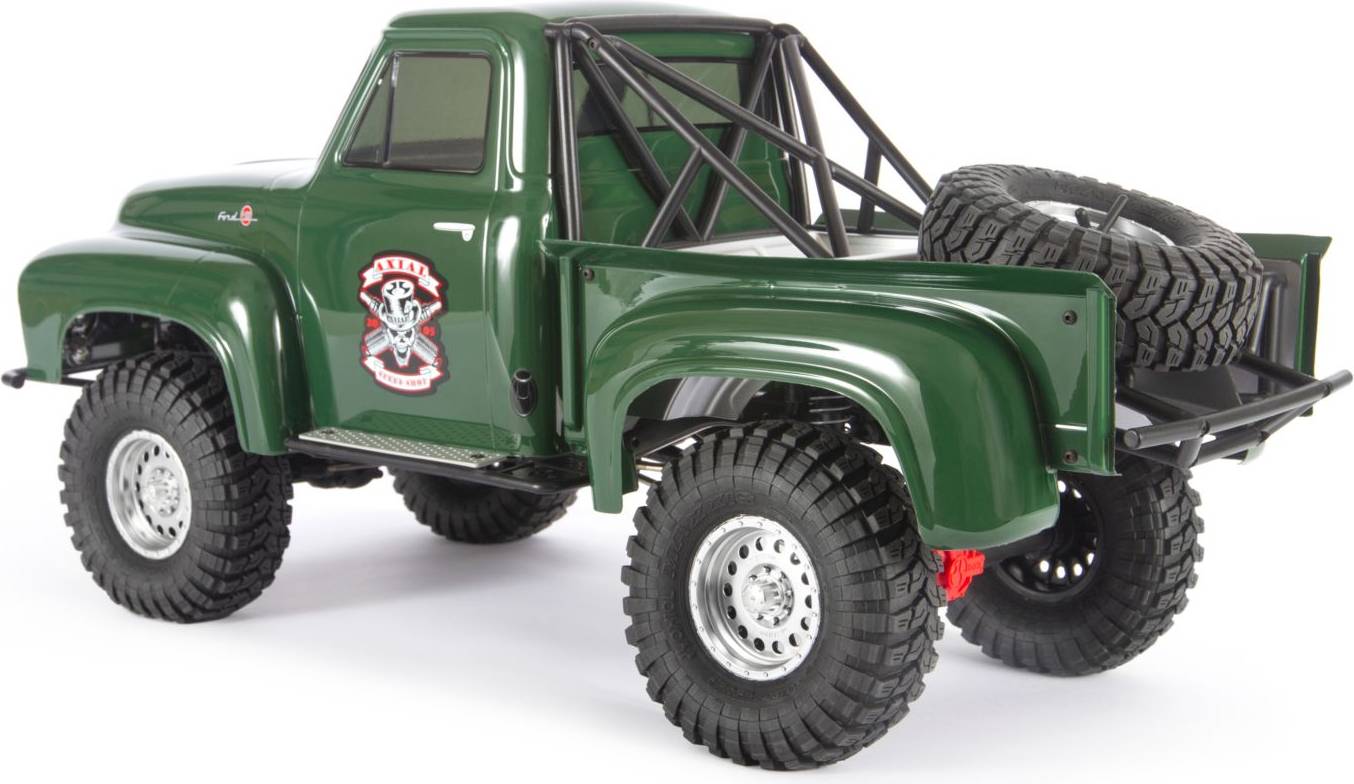

The SCX10 II Ford F-100 delivers class-leading performance in a convenient, ready-to-run package. Only batteries and a charger are required. Authentic body details include a front grille with chrome-coated plastic radiator and front-mounted driving lights with LEDs installed. Mounting positions are built-in to add optional LEDs for headlights and turn signal markers. Officially licensed METHOD Hole wheels and Maxxis Trepador tires — plus a working spare — take the realism down to the road.

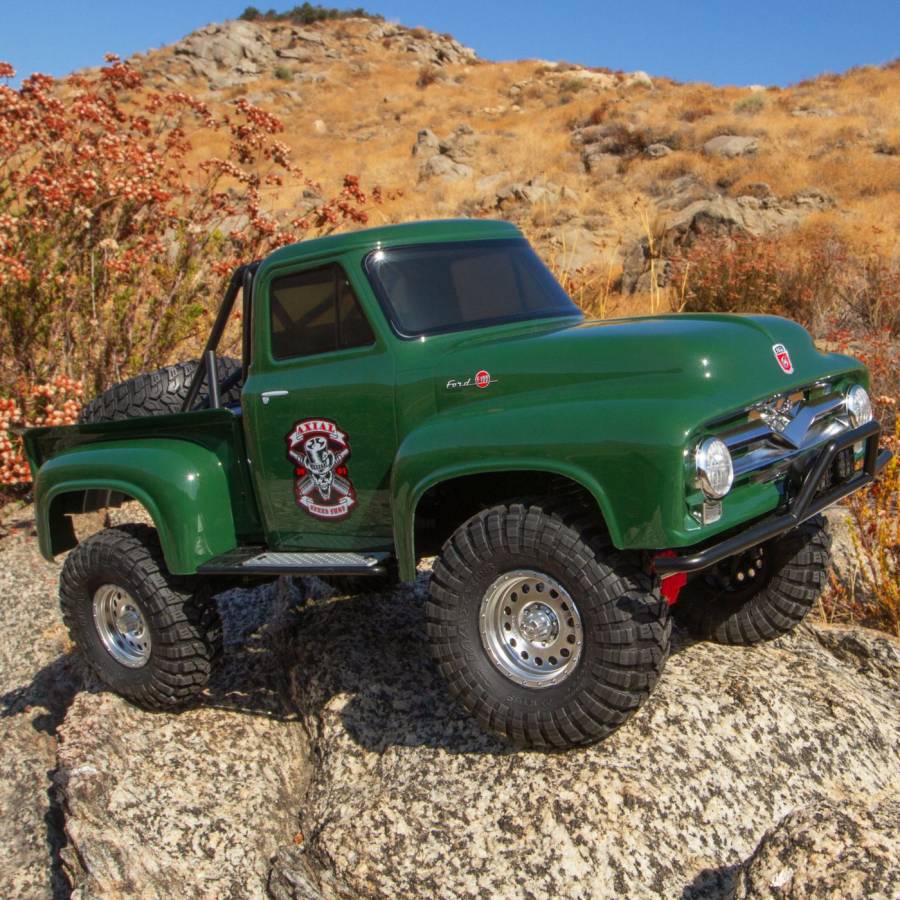

Performance on the trail lives up to the model’s full-scale inspiration. Waterproof electronics keep the action alive over snow, mud, and more. With its all-metal twin C-channel frame rails, metal-gear transmission, rugged AR44 axles, full ball bearings, and more, the SCX10 II Ford F-100 keeps going when the going gets tough!
