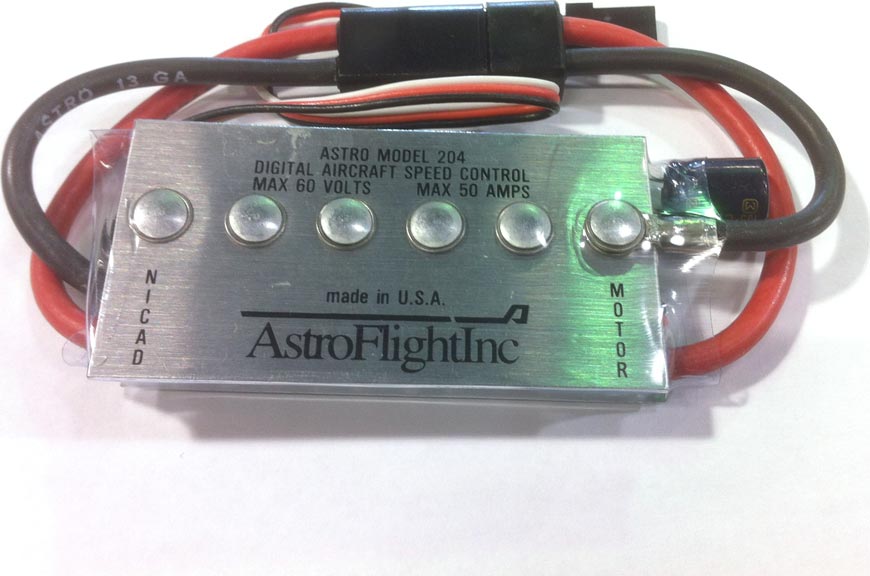

ESC Digital Air 50A 6-36C
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... ASTRO FLIGHT
All items from... ASTRO FLIGHT
But only from... ASTRO FLIGHT
All items from... ASTRO FLIGHT
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
7-60 v
Voltage Range:
7 v
Turn on voltage:
6-40 Cells
NiCd/NiMH Cells:
60 A
Continuous Current Rating:
3 KC
PWM Rate:
No BEC
BEC:
Yes
Opto Coupling:
2 in
Length:
1 in
Width:
.25 in
Height:
40 g
Weight:
13 AWG
Power Cables:
Astro
Power connectors:
FEATURES
The 204D is a 60A speed control for brushed motors. Operating range is from 7 to 60 volts of input (6 to 40-cell NiCd or NiMH operation, 2 to 12-cell Lithium Polymer). Weight without wires is 35g ad with wires 40g. Comes with AstroFlight Zero Loss power connector and a universal radio connector. It does not have brakes or current limiting.
