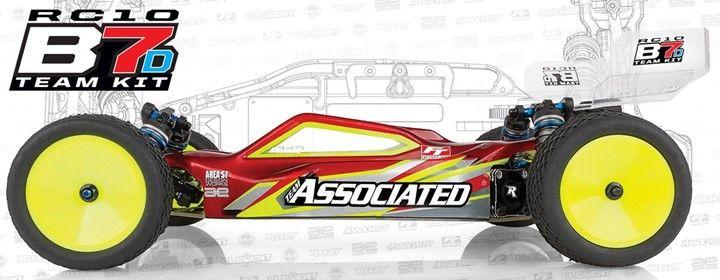

RC10B7D 1/10 2WD Buggy Team Kit
 |
|
|
|
click to enlarge
|
But only from... ASSOCIATED
All items from... ASSOCIATED
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||

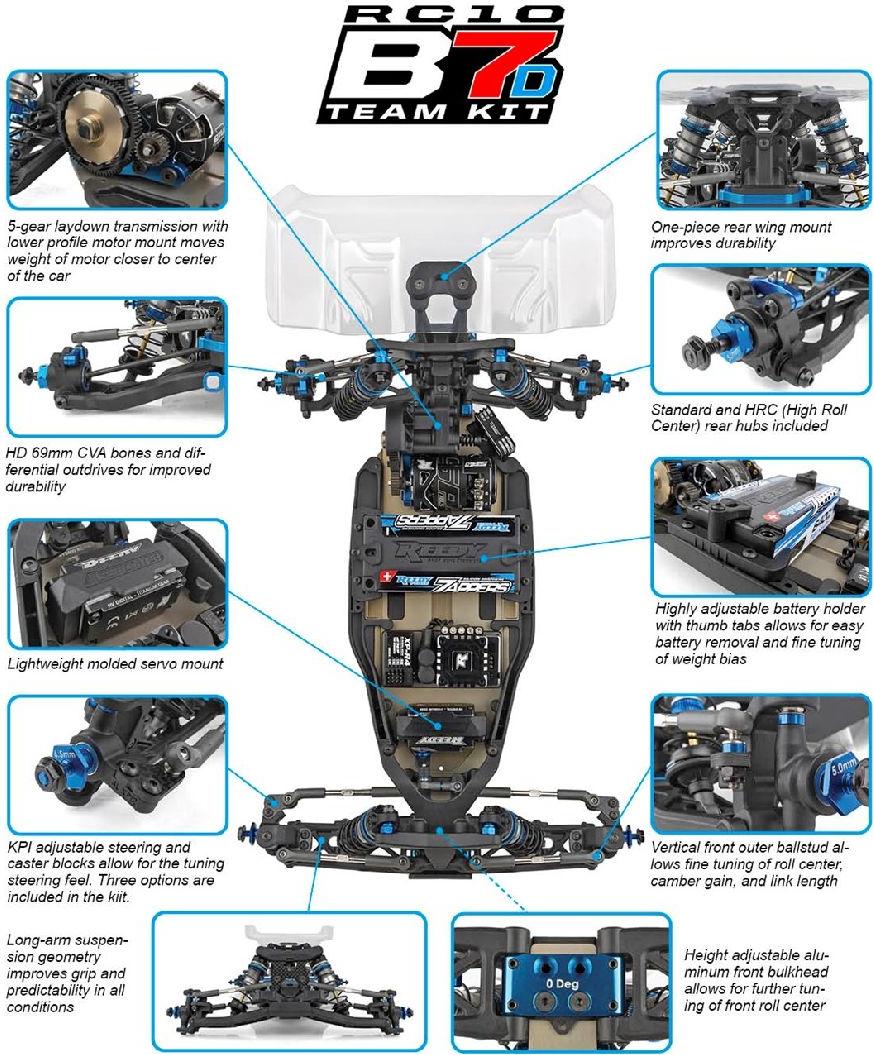

- Optimized Weight Distribution: The 5-gear laydown transmission, coupled with a low-profile motor mount, strategically shifts the motor's weight closer to the car's center for enhanced balance.
- Enhanced Suspension Design: Long-arm suspension geometry contributes to improved grip and predictability in diverse driving conditions.
- Customizable Steering: KPI adjustable steering and caster blocks offer three options in the kit, allowing for precise fine-tuning of steering feel.
- Fine-Tuning Flexibility: A vertical front outer ballstud enables precise adjustments for roll center, camber gain, and link length, while the height-adjustable aluminum front bulkhead further refines front roll center.
- Variable Rear Hubs: The kit includes both standard and HRC (High Roll Center) rear hubs, providing adaptability to different driving preferences.
- Convenient Battery Holder: The highly adjustable battery holder, equipped with thumb tabs, facilitates easy battery removal and allows fine-tuning of weight bias.
- Durable Chassis Construction: The 7075-T6 aluminum chassis, featuring an increased departure angle and optional weight plate pockets, ensures durability and adaptability.
- Improved Drivetrain Durability: HD 69mm CVA bones and differential outdrives enhance overall durability.
- Efficient Servo Mount: The lightweight molded servo mount contributes to an efficient and reliable design.
- Enhanced Wing Mount: The one-piece rear wing mount improves durability, complemented by the inclusion of a new 7-inch rear wing and 2.5-inch front wing.
- Sleek Aesthetics: The low-profile body, shock tower covers for both front and rear, and the use of 3.5mm turnbuckles and ballcups add to the overall sleek and high-quality design.
Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation to the world--the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.
The RC10B7D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurfR tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons. As with previous generations, the RC10B7D and RC10B7 feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.
Required to Complete
1:10 scale 540-size electric RC car motor
1:10 scale radio control electronic speed control
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
Battery charger (for chosen battery mentioned above)
Lexan specific spray paint for body
1:10 scale off-road wheels and tires
4 AA batteries for radio-controlled car radio
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer (#1499) or Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler.
2-channel surface transmitter, 2-channel receiver, and steering servo
|
|
|
|
|
||||||||||||||||||||||
