Home » Product Info »
ASC90040PC

Limited Edition Reflex DB10 RTR Combo w/Paddle Tires

ASSOCIATED

ASC90040PC
Limited Edition Reflex DB10 RTR Combo w/Paddle Tires
By ASSOCIATED
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Desert Racer
But only from... ASSOCIATED
All items from... ASSOCIATED


 Inventory Status Legend
StockStock availability for on-line ordering
0
$469.99
Warehouse ?
StockStock availability for pick up
0
$469.99
Warehouse ?
0
$469.99
Store - Stratford ?
0
$469.99
Store - Edmonton ?
0
$469.99
Store - Mississauga ?
0
$469.99
Store - Ottawa ?
0
$469.99
Store - Oshawa ?
0
$469.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Factory Team Turnbuckle Wrench 4mm 4x4
$7.99

Green Slime Shock Lube
$7.99

FT Silicone Diff Fluid 200 000CST
$19.99

Flat Sensor Wire 150mm
$14.99
FT Silicone Diff Fluid 15 000CST
$13.99

Slipper Pads V2
$14.99

Precision Camber Gauge
$14.99

Kimbrough Spur Gear 81T
$8.99
SPECIFICATIONS
18.94 in
Length:
11.1 in
Width:
4.09 lbs
Weight:
12.68 in
Wheelbase:
2WD
Drivetrain:

FEATURES
  • Includes a Reedy Compact Balance Charger and Reedy 7.4V LiPo Battery with T-plug
  • Based on the 9-time R.O.A.R. National Champion short-course race truck platform, with rear motor design
  • 2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver featuring built-in adjustable gyro
  • High-torque, metal-gear Reedy servo with spring-style servo saver
  • Powerful Reedy 3300kV brushless motor
  • Water-resistant high-power Reedy brushless speed control with T-plug connector and LiPo low voltage cutoff
  • Factory-finished off road desert buggy body
  • Realistic Method Wheels with 12mm front and rear hex-drive nuts
  • Four integrated LED's included, 2 front, 2 rear
  • Water-resistant enclosed receiver box
  • Aluminum 12mm big bore coil-over shock absorbers
  • 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch
  • Durable and lightweight aluminum top shaft
  • Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both NiMH and 2/3s LiPo battery packs
  • Metric hardware throughout
  • 14 precision rubber-sealed ball bearings
  • Durable front and rear body mounts
  • Rugged steel turnbuckles for adjustable camber and front toe-in
  • Fully adjustable suspension geometry
  • Vertical ball ends for roll center adjustments, front and rear
  • Rear CVA drive shafts for more reliability
  • Many Factory Team options already available!

Team Associated's Reflex DB10 is a Ready-To-Run RC electric desert buggy based on the 9-time R.O.A.R. Short Course National Championship-winning truck. The Reflex DB10 is both all show and all go! It features some major upgrades not normally found in RTRs: a water-resistant high-power Reedy brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system as well as our ALL NEW DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro which allows vehicle stability to be adjusted to flow with the terrain. A Reedy metal-gear digital high-torque servo and LED lights front and rear round out the Reflex DB10!

The suspension also received an upgrade with the addition of adjustable blue anodized aluminum V2 12mm big bore coil-over shocks. The gearbox now comes with a heavy-duty sealed-gear differential and externally adjustable V2 slipper clutch. 86mm CVA driveshafts increase traction and chassis support. Hex-drive, realistic off road wheels and tires, to keep the desert buggy gripping the ground, come standard on the Reflex DB10.

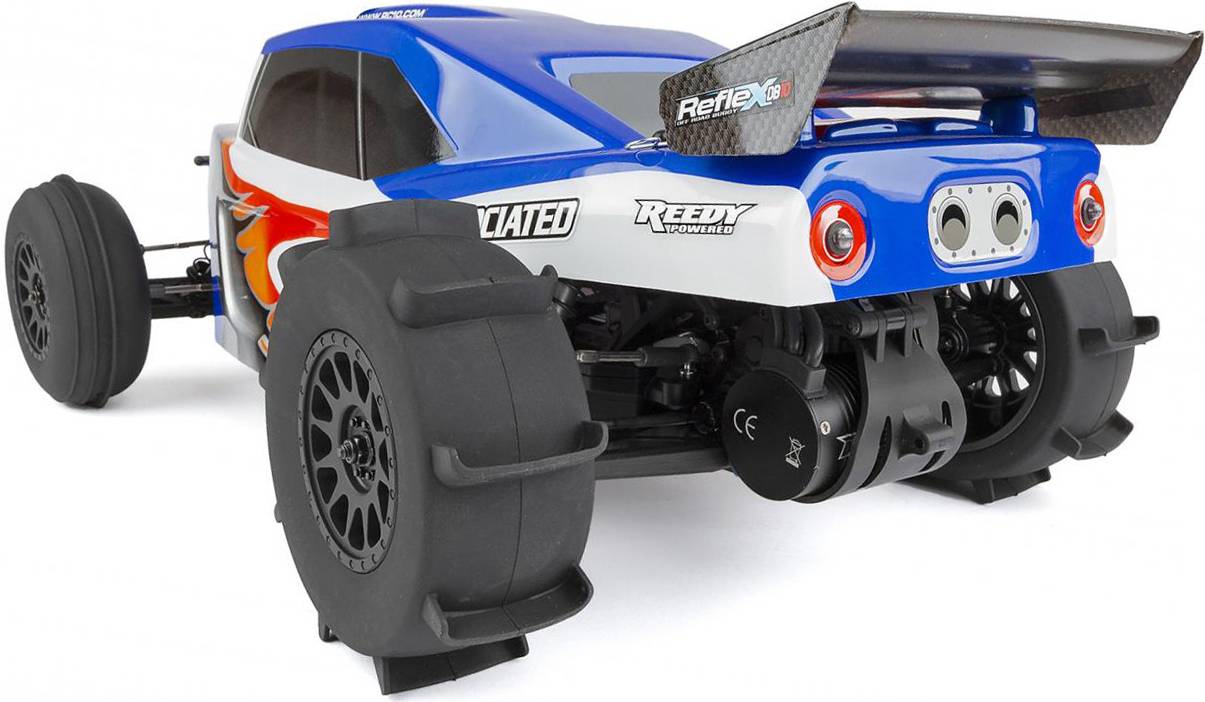

Made for sand or snow, the Reflex DB10 Paddle Edition RTR comes equipped with rear paddle and front ribbed tires right out of the box. Available in both standard RTR and RTR Combo with LiPo battery and charger, this version is ready to have a blast in the sand and snow!





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
784695985322 0784695985322
ASC90040PC
