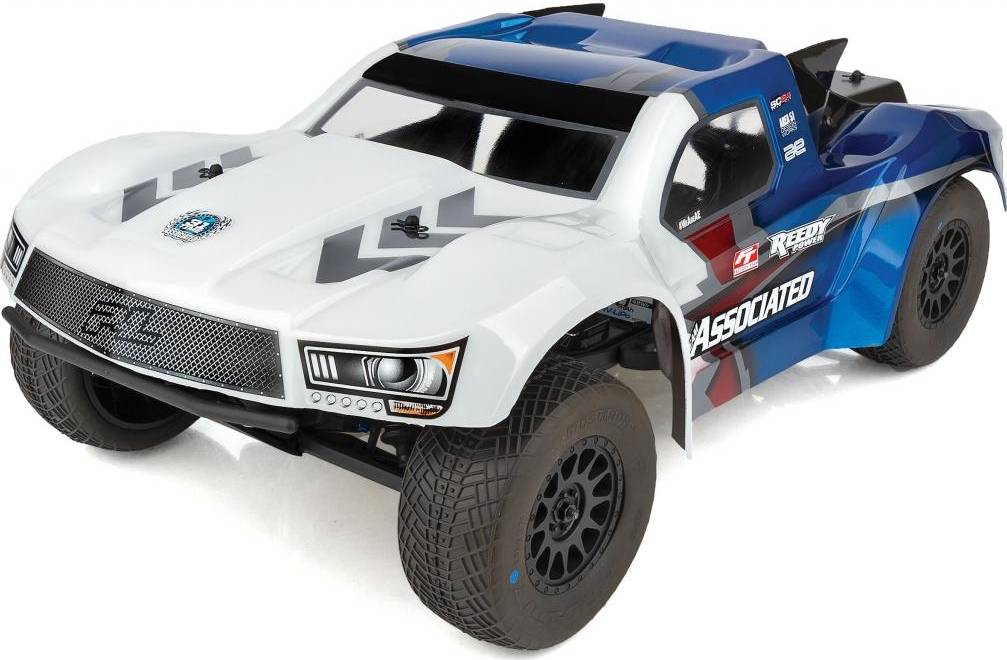

The RC10SC6.4 shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large-volume 13mm big bore shocks with new truck springs. The new chassis design is a short course truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 93.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.
New Features of RC10SC6.4

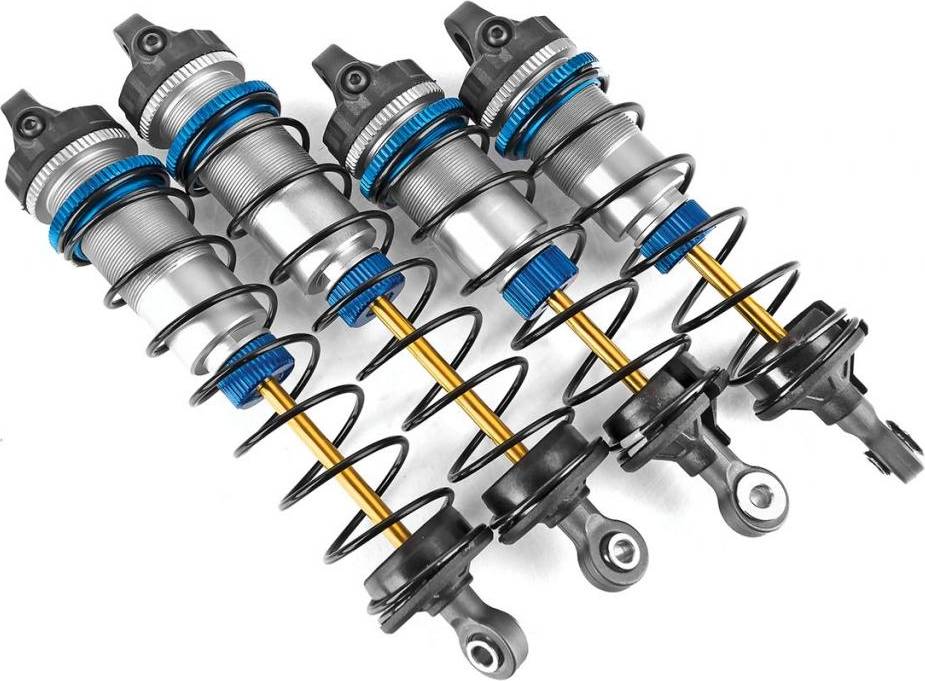

New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear
New front ballstud mount and top plate with angled steering system for improved steering consistency
New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
Updated rear suspension with wider C and D mounts from the RC10B6.4 series
New longer 92.5mm CVA driveshafts for more rear grip
7.0mm blue aluminum rear clamping hexes with laser etching

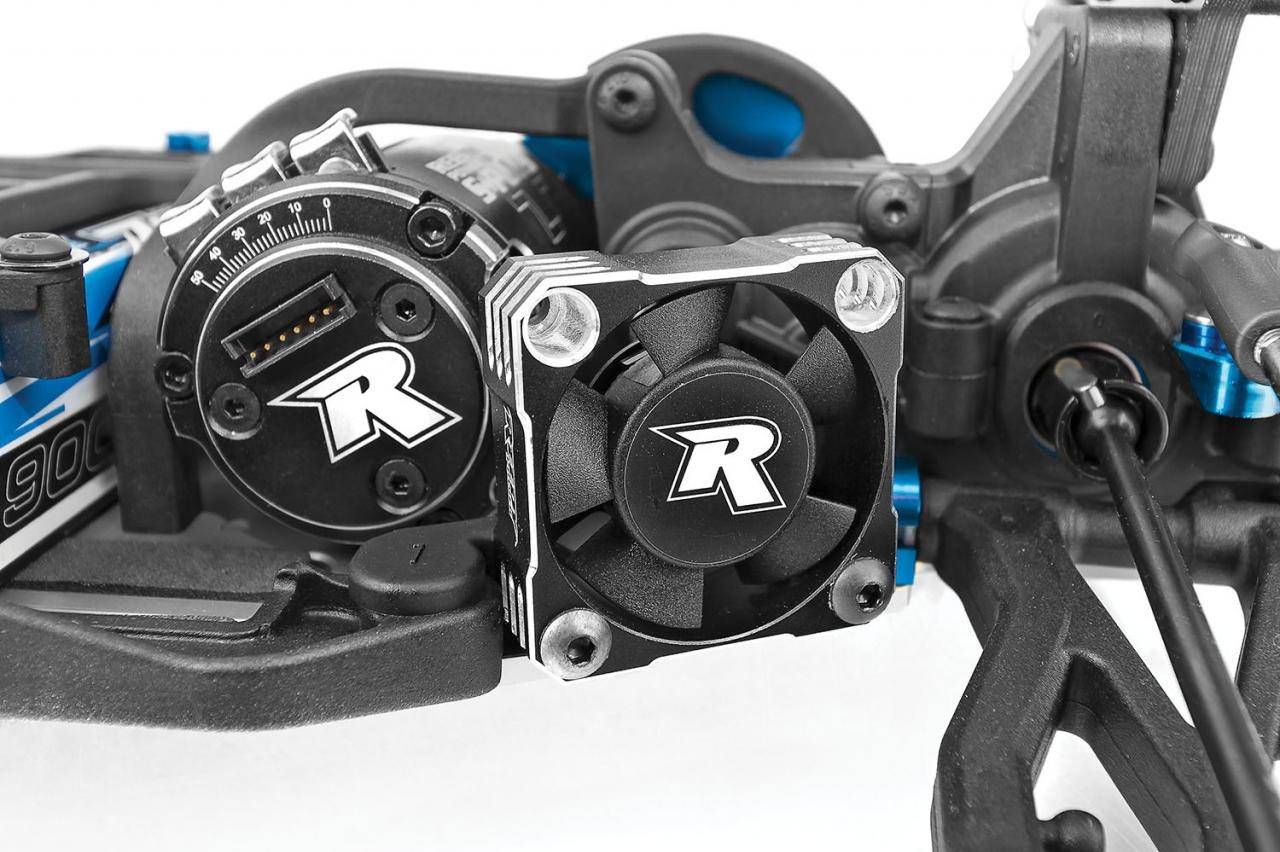

New chassis side rails with the RC10B6.4 fan mount system

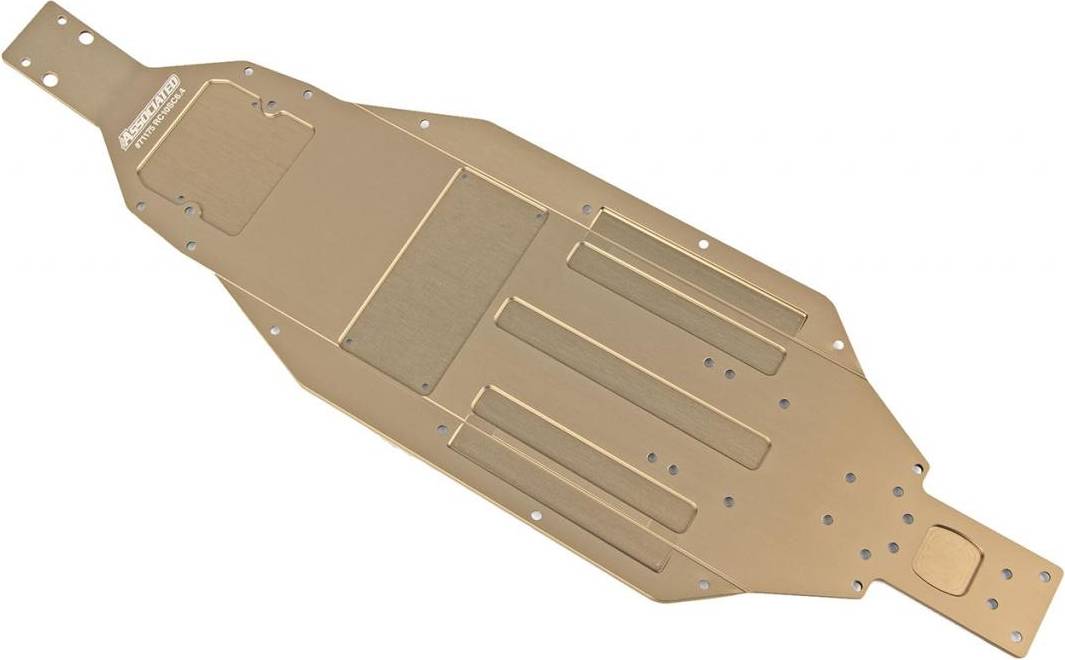

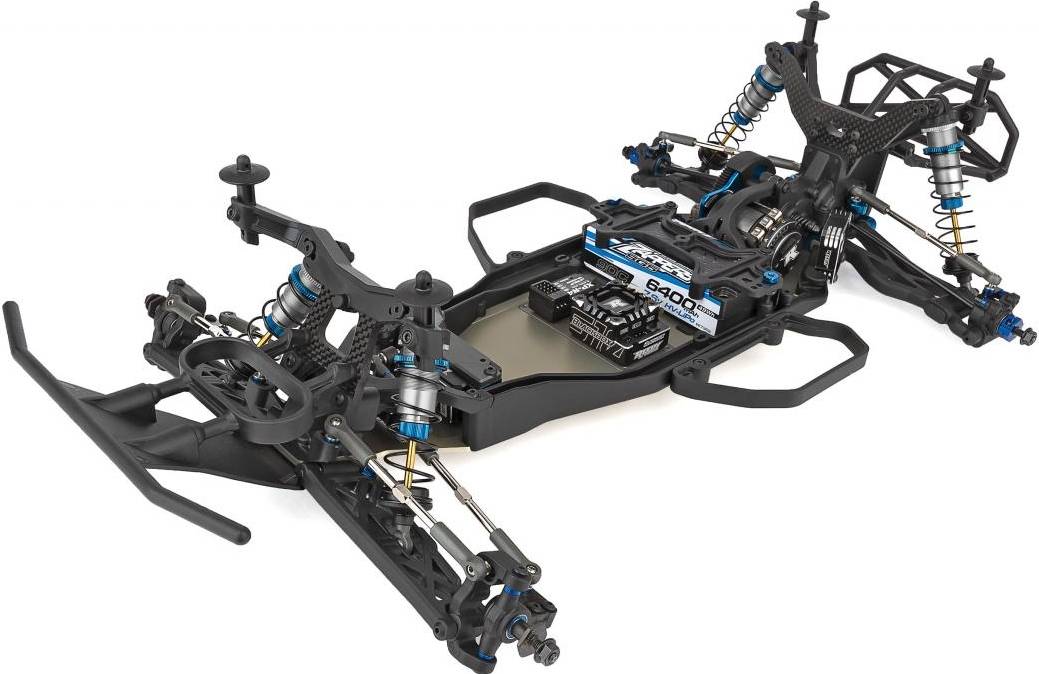

New short course truck length aluminum chassis with 22.5 deg. kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface

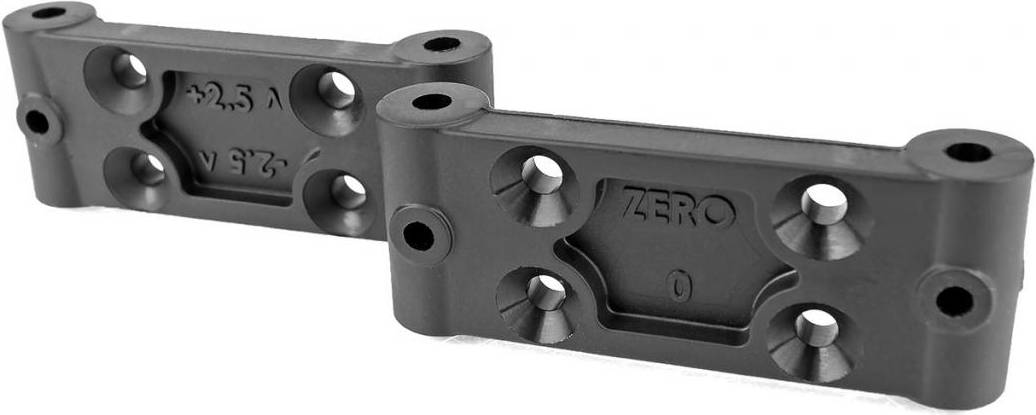

20 deg., 22.5 deg., and 25 deg. molded bulkheads included for a complete range of caster and kickup options
B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles

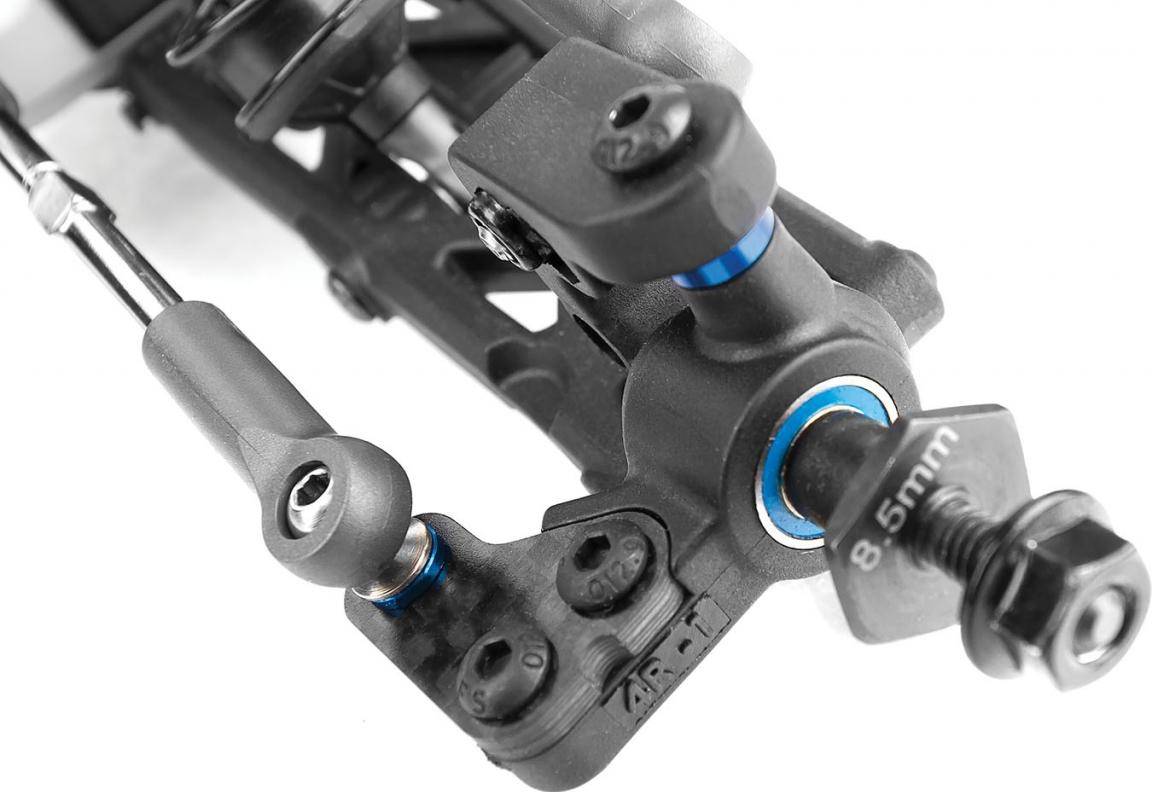

B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward
Factory Team RC10B6.4 11g aluminum ESC tray
Legacy Features from RC10SC6.2
Flat front and rear arms and shock towers for improved high traction handling
B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments
1.3mm front anti-roll bar and hardware included for added high-speed stability
Laydown StealthR transmission included
+1 carbon fiber steering block arms

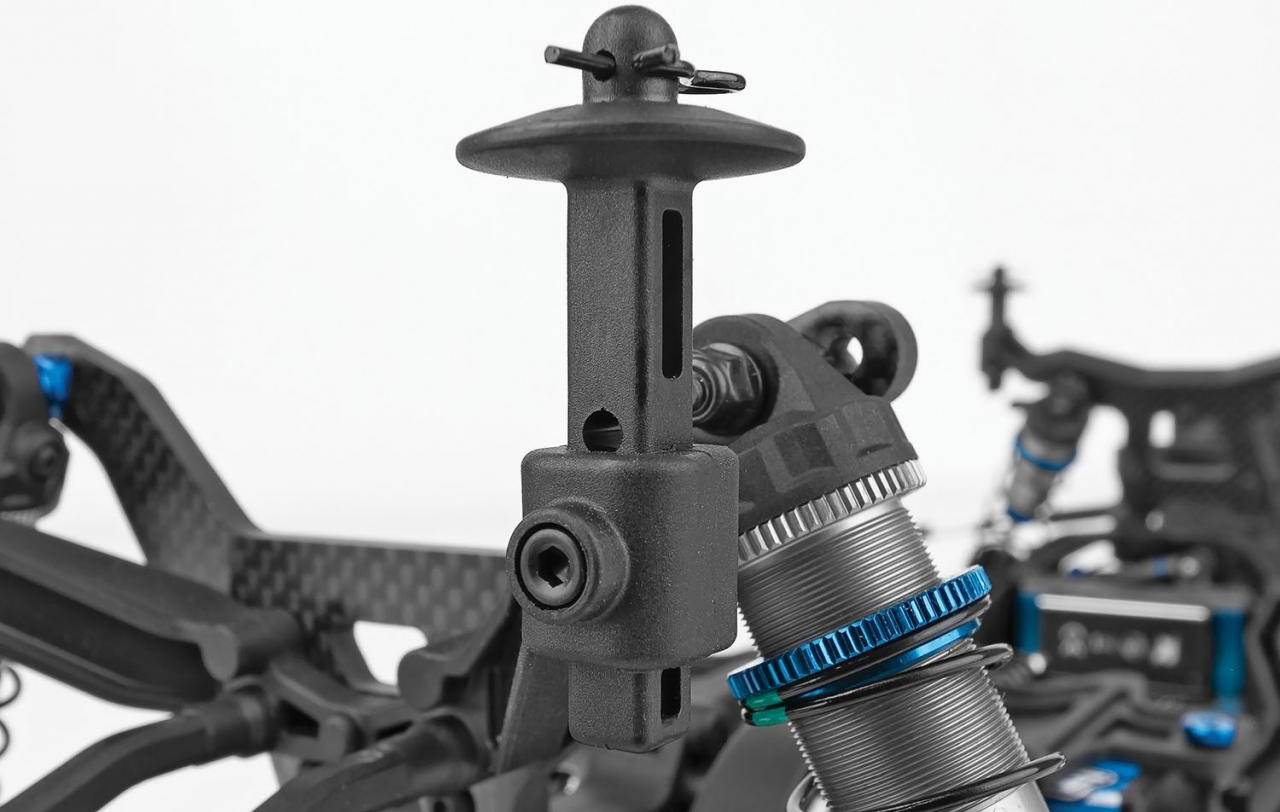

Updated front body mount is more rigid to protect body from cracking
Lightweight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types
Differential height adjustment with included 0, 1, 2, and 3mm inserts
Easy access to differential

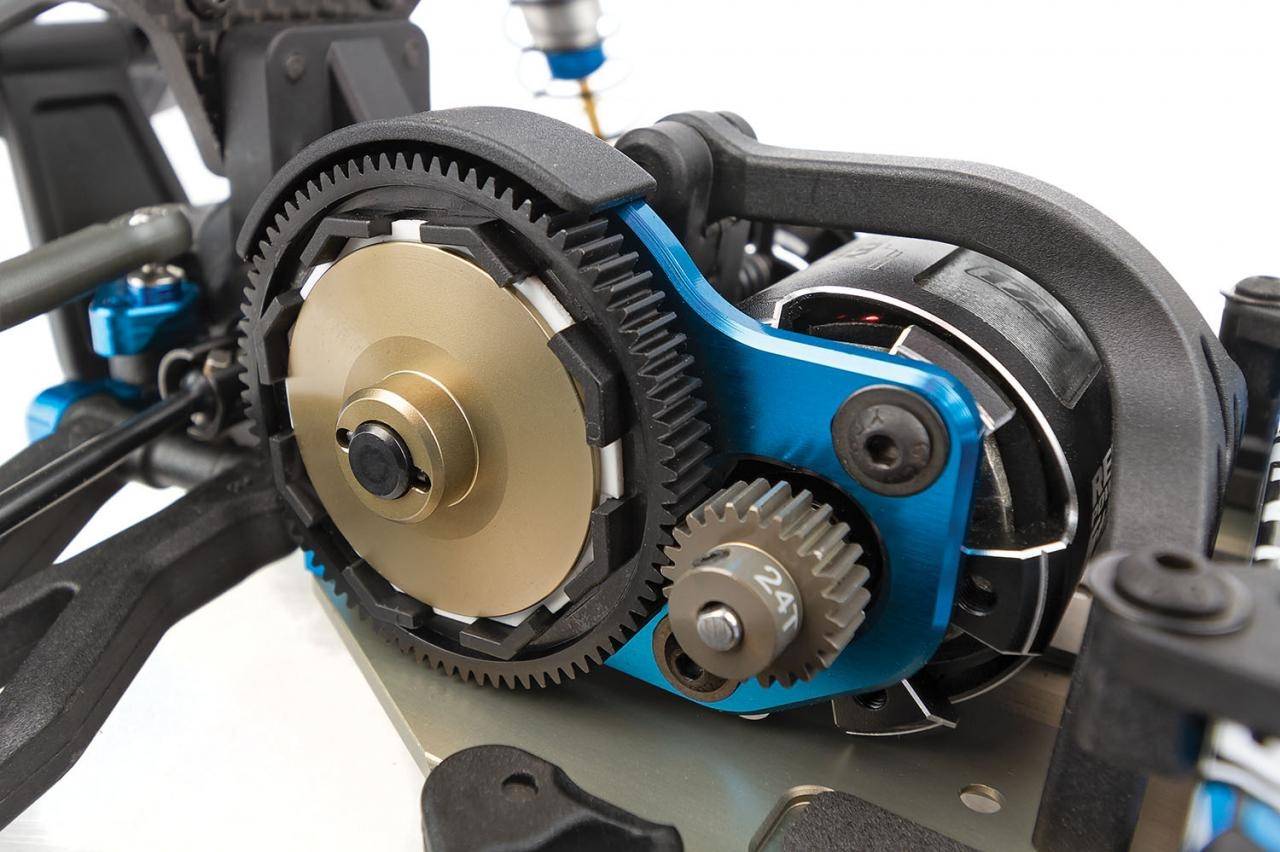

Split slipper assembly for better weight balance and shock clearance
Heavy-duty routed 4.0mm carbon fiber shock towers
Aluminum shocks with 3mm shafts and X-rings for improved smoothness
Machined pistons included for better fit and smoother operation
Reverse bellcrank steering allows more room for mounting electronics
Bolt-on steering block arms for easy Ackermann adjustments
Aluminum rear ballstud mount for added strength
One-piece shock bushings to make assembly easier
Lightweight aluminum top shaft
Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments
Factory Team upgraded ball bearing kit included
In The Box
(1) RC10SC6.4 Team Kit
(1) RC10SC6.4 Team Kit Manual
Needed to Complete
(1) 2+ Channel Radio System
(1) Standard-Size Servo
(1) Electronic Speed Control
(1) 540-Size Motor
(1) 7.2V - 11.1V Battery
(1) Battery Charger
(1) Pinion Gear
(4) Wheels and Tires
(1) 1/10 Short Course Body
