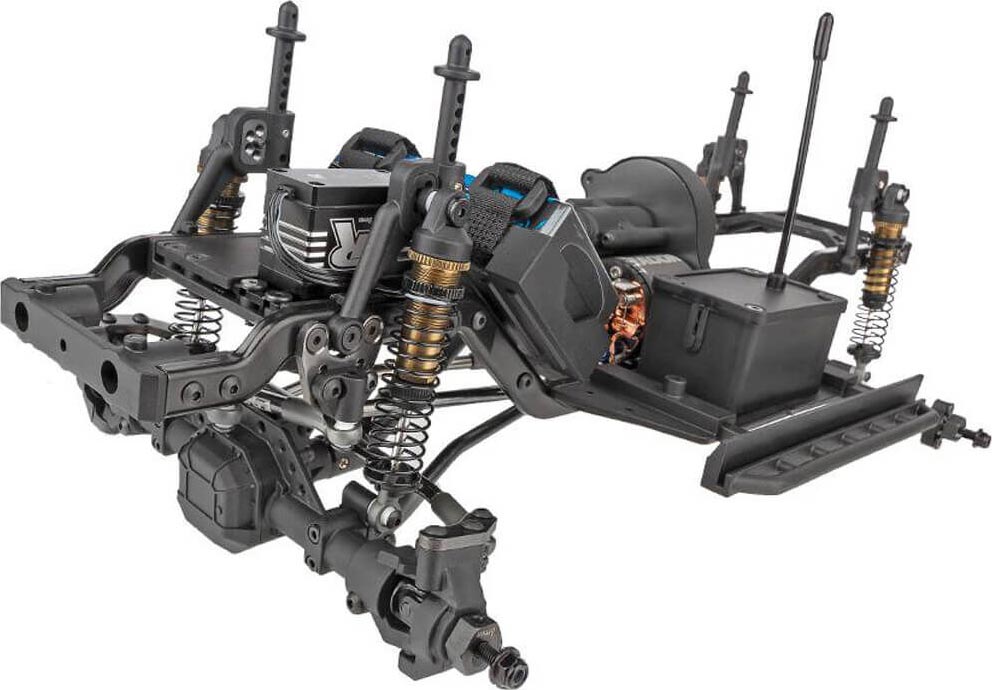

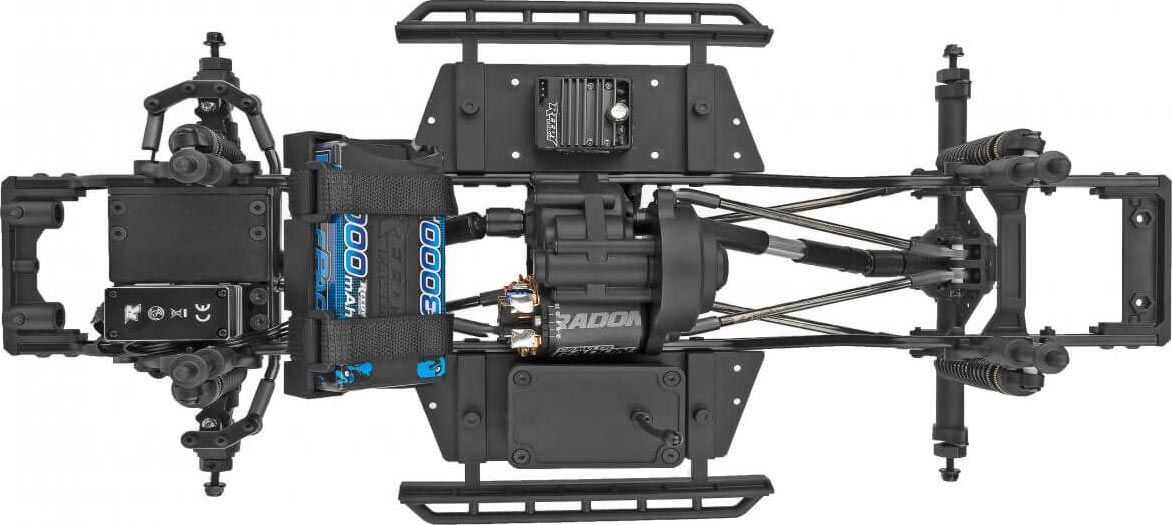

ASC40114

Enduro Trail Truck Builder's Kit 2

ASSOCIATED

ASC40114
Enduro Trail Truck Builder's Kit 2
By ASSOCIATED
$349.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... ASSOCIATED
All items from... ASSOCIATED


 Inventory Status Legend
StockStock availability for on-line ordering
0
$349.99
Warehouse ?
StockStock availability for pick up
0
$349.99
Warehouse ?
0
$349.99
Store - Stratford ?
0
$349.99
Store - Edmonton ?
0
$349.99
Store - Mississauga ?
0
$349.99
Store - Ottawa ?
0
$349.99
Store - Oshawa ?
0
$349.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Smart LiPo Bag 14x6.5x8cm
$19.99

Factory Team Turnbuckle Wrench 4mm 4x4
$7.99

Machined Metric Hex Driver Set
$34.99

Hex Driver 1.5mm
$6.99
FT Body Reamer
$34.99

Machined Hex Driver 1.5mm
$16.99

Reedy Radon 2 Crawler 12T 5-slot 2700kV Brushed Mo...
$49.99

RC4WD Warn Pullzall Retractable Tow Strap
$29.99
SPECIFICATIONS
18.2 in
Length:
9.3 in
Width:
12.3 in
Wheelbase:
4WD
Drivetrain:

FEATURES
  • Solid axle front suspension
  • Universal front drive axles
  • One-piece rear axle design
  • Behind-the-axle (BTA) steering
  • Aluminum steering plates
  • Integrated servo winch mount
  • CMS (Chassis Mounted Servo)
  • Stamped steel frame rails
  • Adjustable bumper mounts
  • Enclosed water-resistant receiver box
  • Injection-molded adjustable width rock sliders
  • Threaded aluminum shock bodies
  • Aluminum motor plate
  • Optimized ball cups for more fluid axle articulation
  • Telescopic driveshafts front and rear
  • Extruded aluminum driveshaft splines
  • 5mm heavy duty FT high clearance links
  • Machined input pinion gear
  • Metal ring gear
  • Machined steel top shaft
  • Metal ball bearings included
  • Steel 25T servo horn

Always forward, never back. Here at Element RC we are always improving things, and this kit is no different. With added features and updated materials, the updated Enduro Builder's Kit 2 is the perfect platform for any build.

We've updated the Builder's Kit 2 by including our GKSTM shock towers in front and rear. Our shock mount inserts provide the ability to adjust shock angle, droop, and vehicle ride height without affecting spring preload. Matched up with the shock mount inserts are our race-proven, ultra-smooth Factory TeamTM bronze shocks with black caps and collars--perfect for traversing rough terrain. Along with the updated shock towers, we've included the GKS aluminum track bar mount that is bolted directly to the frame rails. This makes the front suspension more rigid and flex-free with a more precise steering feel. Also included are updated Factory Team 12.3-inch wheelbase high-clearance links with black nitrate finish and low-friction Delrin(R) pivot balls, which are more resistant to abrasion and friction wear.

You get all these new features along with our revolutionary Stealth(R) X transmission with the ability to adjust the front and rear drive ratios independently across three different levels. In the box you get both the 5.7% and 11.83% overdrive gears, and available separately is a one-to-one ratio option for those who wish to drive the front and rear equally.

The behind-the-axle (BTA) steering greatly improves approach angle and front end clearance, making rough terrain much easier to handle.

With all these updated features packed in one box, we know the new and improved Enduro Builder's Kit 2 is better than ever. It's the perfect rig for whatever adventures lie around the next corner. Your journey begins here!

In The Box

(1) 1/10 Enduro Trail Truck Builder's Kit 2

Needed to Complete

2-channel surface transmitter
2-channel receiver
Steering servo
Body and Paint
1:10 scale 540-size electric motor with 48-pitch pinion gear
1:10 scale electronic crawler speed control
LiPo battery (based on your speed control)
Battery charger
Wheels with 12mm hex mounting
Tires
