AJAZ230105BL

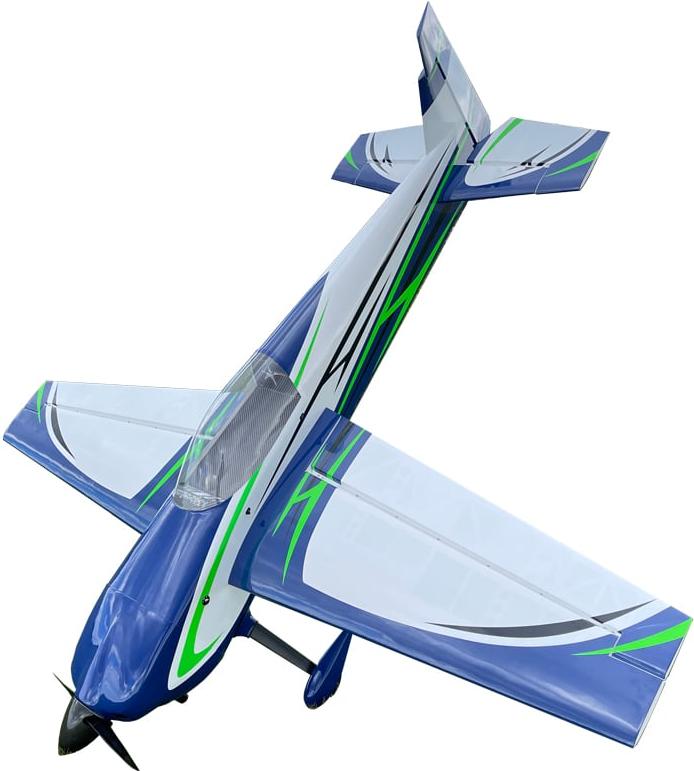

Laser 230z 105" ARF - Blue

Product Info
AJAZ230105BL
Laser 230z 105" ARF - Blue
By AJ AIRCRAFT
$1,999.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... IMAC ARF Giant Scale Kits
But only from... AJ AIRCRAFT
All items from... AJ AIRCRAFT


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,999.99
Warehouse ?
StockStock availability for pick up
0
$1,999.99
Warehouse ?
0
$1,999.99
Store - Stratford ?
0
$1,999.99
Store - Edmonton ?
0
$1,999.99
Store - Mississauga ?
0
$1,999.99
Store - Ottawa ?
0
$1,999.99
Store - Oshawa ?
0
$1,999.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
105 in
Wingspan:
102 in
Length:

FEATURES

The 411:

  • Wing Span - 105"
  • Length - 102"
  • AUW (dry) - 26-28 lbs.
  • Gas Power - 100cc to 120cc
  • Radio - 9 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
  • IMAC Legal!

Recommended CG Range and Control Throws:

  • The center of gravity (CG) range for the 105" Laser 230z is located 1/2" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
  • Low Rates - 15 deg. (30% Exp)
  • Mid Rates - 35 deg. (40% Exp)
  • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
  • Low Rates - 15 deg. (30% Exp)
  • Mid Rates - 35 deg. (40% Exp)
  • High Rates - 45 deg. (50% Exp)
  • Rudder Control Throws
  • Low Rates - 15 deg. (30% Exp)
  • Mid Rates - 35 deg. (40% Exp)
  • High Rates - Max Throw (50% Exp)

What's in the box:

  • Pre-hinged, glued and sealed ailerons & elevators
  • All Carbon Kevlar Construction
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Dual carbon fiber stab tubes
  • Quick Release Wings, Stabs & Canopy
  • Removable Rudder
  • G10 fiberglass control horns
  • Aluminum reinforced landing gear mount
  • Aluminum reinforced firewall
  • Aluminum standoffs for gas engines
  • Canister tunnel
  • Canopy has finished foam cockpit.
  • Heavy duty foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Premium HD tail wheel assembly
  • Heavy duty pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint
  • Airplanes available in the following color schemes
  • Orange & white
  • Dark Blue & White

NOTE: This product is shipped in two separate boxes.
The main box measures 97"L x 20"W x 22"H (59 lbs. total), The wing box measures 53"L x 30"W x 9"H (23 lbs. total).

AJ flies this airframe with the following equipment:

  • Engine - Desert Aircraft 120cc twin cylinder gas engine
  • Propeller - Falcon 28x10
  • Servos
    • (8) x Futaba S9177SV Servos (S.Bus2) for all surfaces
    • (1) x Futaba 9670SV for throttle
  • Gas Tank - (1) x AJ Aircraft single 34oz (1000ml)
  • Ignition Kill - Powerbox Spark Switch 5.9v
  • Engine Baffle - AJ Aircraft 105" Laser 230z Baffle Set

Also needed to complete:

  • Servo Extensions
    • (4) x 6" extensions for receiver to ailerons
    • (2) x 6" extensions for inner aileron
    • (2) x 24" extensions for outer ailerons
    • (2) x 48" extensions for elevators
    • (2) x 36" extensions for push-pull rudder (only needed for push/pull setup)
    • (1) x 24" extension for throttle servo
    • (1) x 24" extension for ignition kill
  • Aluminum Servo Arms
    • (4) x 1.50" single arms for ailerons
    • (2) x 1.75" single arms for elevators
    • (2) x 1.75" single arms for rudder (only needed for push/pull setup)
    • (1) x 4.50" double arm for rudder (only needed for pull/pull setup)
    • (1) x 3.50" double arm for rudder (only needed for pull/pull setup)







AJA LZR_105-00BLUE
