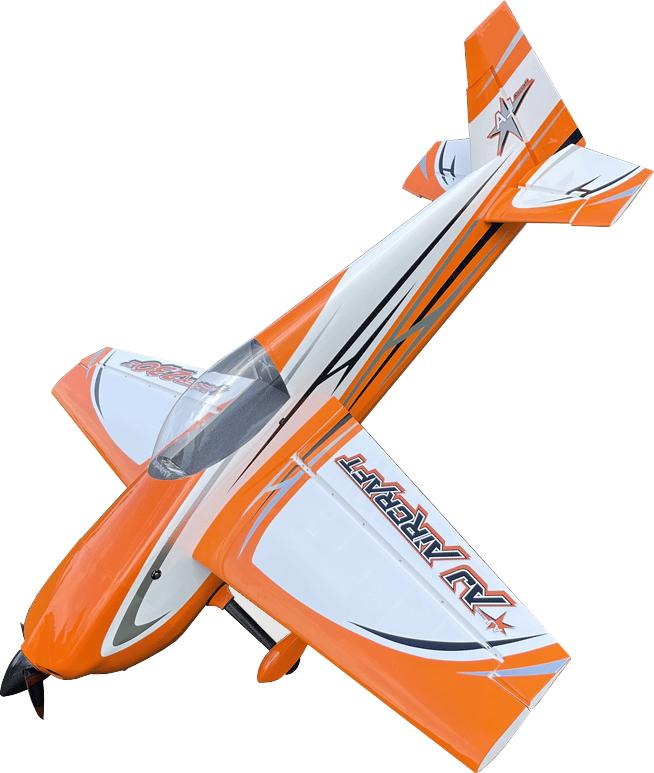

Laser 230z 93" ARF - Orange

The 411:

• Wing Span - 93"
• Length - 88"
• AUW (dry) - 18lbs to 20lbs
• Gas Power - 60cc-70cc
• Electric Power 70cc Motor of choice
• Radio - 6 channel with 5 high torque servos (400 oz./in minimum) & 1 throttle servo for gas power
• IMAC Legal!

Recommended CG Range and Control Throws:

• The center of gravity (CG) range for the 93" Laser 230z is located 1" in front of the wing tube (+/- 1/2")
• Aileron Control Throws
• Low Rates - 15 deg. (30% Exp)
• Mid Rates - 35 deg. (40% Exp)
• High Rates - 45 deg. (50% Exp)
• Elevator Control Throws
• Low Rates - 15 deg. (30% Exp)
• Mid Rates - 35 deg. (50% Exp)
• High Rates - 45 deg. (60% Exp)
• Rudder Control Throws
• Low Rates - 15 deg. (30% Exp)
• Mid Rates - 35 deg. (40% Exp)
• High Rates - Max Throw (50% Exp)

What's in the box:

• Pre-hinged, glued and sealed ailerons & elevators
• All Carbon Kevlar construction
• Carbon Fiber main landing gear
• Carbon Fiber main wing tube
• Quick release Wings, Elevators, and canopy
• Removable Rudder
• NEW! Heavy duty machined tail wheel
• G10 fiberglass control horns
• Aluminum reinforced landing gear mounts
• Aluminum reinforced firewall
• Aluminum standoffs sized for DA70 & GP76
• Canister Tunnel
• Heavy duty foam wheels with aluminum hubs
• Heavy duty steel axles
• Thick, heavy duty, pre-drilled wheel pants
• Pre-drilled & rubber lined landing gear cuffs
• Pre-drilled firewall
• Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
• High quality ball links & turnbuckles for all connections
• Extra hardware bag for spares
• Velcro for fuel tank or battery restraint

Airplanes available in following colors:

• Orange & White Scheme
• Dark Blue & White Scheme

NOTE: This product is shipped in three separate boxes.
The main box measures 89"L x 18"W x 22"H (49 lbs. total), The wing box measures 47"L x 29"W x 9"H (18 lbs. total).

AJ flies this airframe with the following equipment:

• Desert Aircraft DA 70
• Falcon 24x10 prop
• Thunder Power (2) x 2S 2800mAh LiPo batteries
• Futaba S-9177 servos
• AJ Aircraft 1.75" Servo Arms x (4) for elevators & ailerons
• Aj Aircraft 2" servo arm Push Pull rudder

Also needed to complete:

• Servo Extensions
• (2) x MPX single wire servo connector
• (2) x 48" extensions for the elevators
• (1) x 12" extension for the ESC to Receiver (if electric)
• (1) x 12" extension will be needed for the throttle servo and ignition (if gas)
• 4" spinner
• AJ Aircraft Gas Tank - 24oz (700ml)
