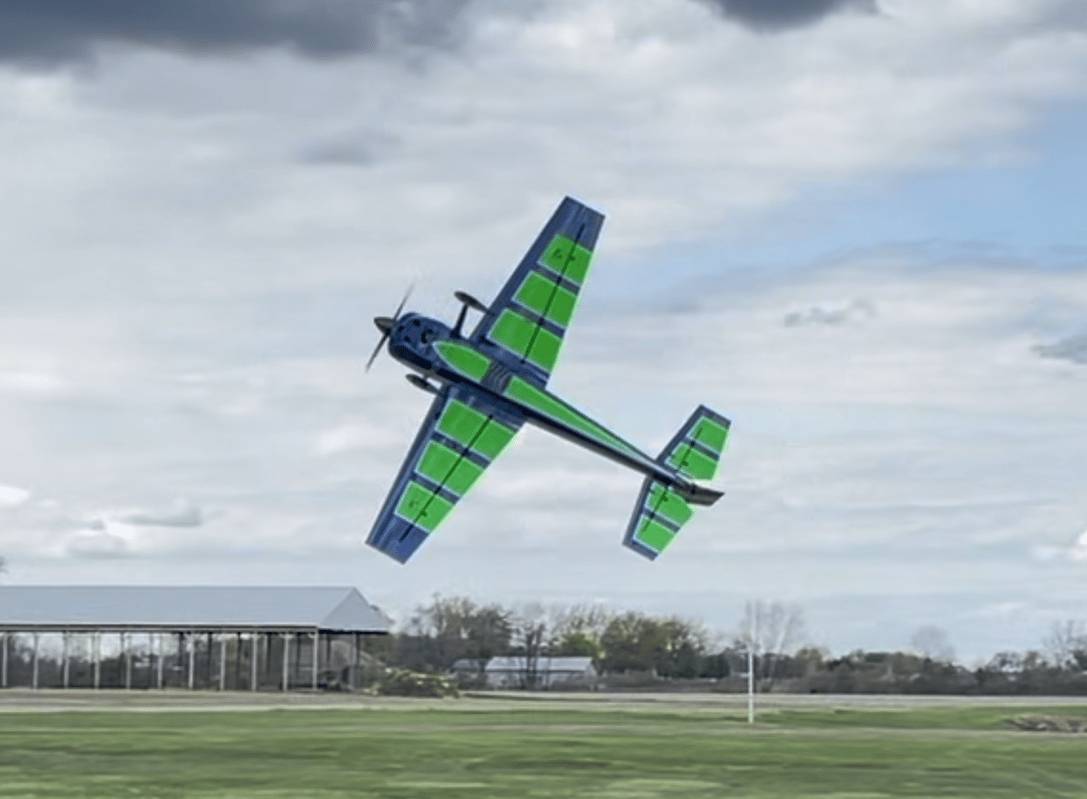

Laser 230z 93" ARF - Blue
|
click to enlarge
|
More like this... IMAC ARF Giant Scale Kits
But only from... AJ AIRCRAFT
All items from... AJ AIRCRAFT
But only from... AJ AIRCRAFT
All items from... AJ AIRCRAFT
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
93 in
Wingspan:
88 in
Length:
FEATURES
The 411:
- Wing Span - 93"
- Length - 88"
- AUW (dry) - 18lbs to 20lbs
- Gas Power - 60cc-70cc
- Electric Power 70cc Motor of choice
- Radio - 6 channel with 5 high torque servos (400 oz./in minimum) & 1 throttle servo for gas power
- IMAC Legal!
Recommended CG Range and Control Throws:
- The center of gravity (CG) range for the 93" Laser 230z is located 1" in front of the wing tube (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (50% Exp)
- High Rates - 45 deg. (60% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
What's in the box:
- Pre-hinged, glued and sealed ailerons & elevators
- All Carbon Kevlar construction
- Carbon Fiber main landing gear
- Carbon Fiber main wing tube
- Quick release Wings, Elevators, and canopy
- Removable Rudder
- NEW! Heavy duty machined tail wheel
- G10 fiberglass control horns
- Aluminum reinforced landing gear mounts
- Aluminum reinforced firewall
- Aluminum standoffs sized for DA70 & GP76
- Canister Tunnel
- Heavy duty foam wheels with aluminum hubs
- Heavy duty steel axles
- Thick, heavy duty, pre-drilled wheel pants
- Pre-drilled & rubber lined landing gear cuffs
- Pre-drilled firewall
- Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
- High quality ball links & turnbuckles for all connections
- Extra hardware bag for spares
- Velcro for fuel tank or battery restraint
Airplanes available in following colors:
- Orange & White Scheme
- Dark Blue & White Scheme
NOTE: This product is shipped in three separate boxes.
The main box measures 89"L x 18"W x 22"H (49 lbs. total), The wing box measures 47"L x 29"W x 9"H (18 lbs. total).
AJ flies this airframe with the following equipment:
- Desert Aircraft DA 70
- Falcon 24x10 prop
- Thunder Power (2) x 2S 2800mAh LiPo batteries
- Futaba S-9177 servos
- AJ Aircraft 1.75" Servo Arms x (4) for elevators & ailerons
- Aj Aircraft 2" servo arm Push Pull rudder
Also needed to complete:
- Servo Extensions
- (2) x MPX single wire servo connector
- (2) x 48" extensions for the elevators
- (1) x 12" extension for the ESC to Receiver (if electric)
- (1) x 12" extension will be needed for the throttle servo and ignition (if gas)
- 4" spinner
- AJ Aircraft Gas Tank - 24oz (700ml)
