AJAZ200103BL

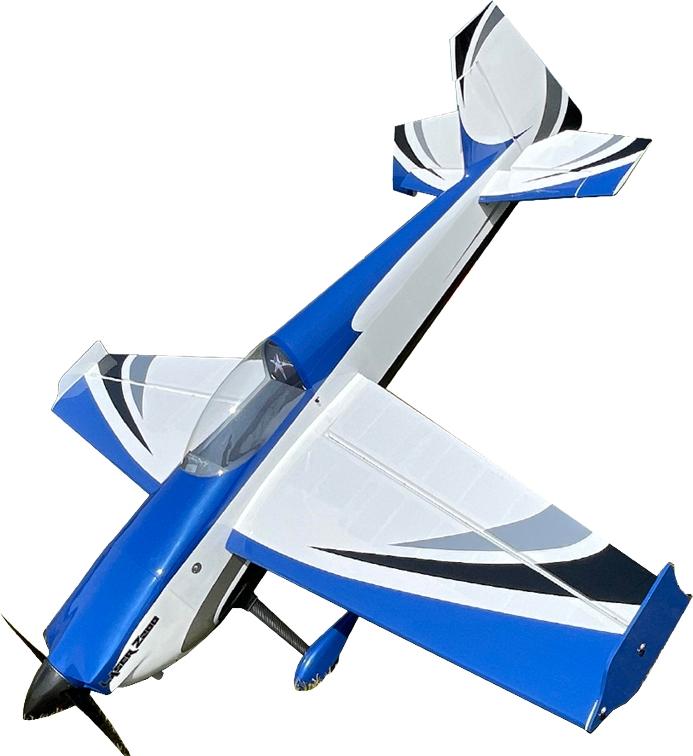

Laser Z200 103" ARF - Pearl Blue

Product Info
AJAZ200103BL
Laser Z200 103" ARF - Pearl Blue
By AJ AIRCRAFT
$1,899.99 CAD   1999.99
Save $100.00 (5%)

FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... IMAC ARF Giant Scale Kits
But only from... AJ AIRCRAFT
All items from... AJ AIRCRAFT


 Inventory Status Legend
StockStock availability for on-line ordering
2
$1,899.99
Warehouse ?
StockStock availability for pick up
2
$1,899.99
Warehouse ?
0
$1,899.99
Store - Stratford ?
0
$1,899.99
Store - Edmonton ?
0
$1,899.99
Store - Mississauga ?
0
$1,899.99
Store - Ottawa ?
0
$1,899.99
Store - Oshawa ?
0
$1,899.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
103 in
Wingspan:
100 in
Length:
26-27 lbs
Weight:
9 or more Channels
Radio Requirements:
7 High Torque (400oz-in+ MG)
Servo Requirements:
100-120 cc
Gasoline Engine Requirements:

FEATURES

The 411:

Wing Span - 103"
Length - 100"
Height - 27"
Wing Area -
AUW (dry) - 26-27 lbs.
Gas Power - 100cc to 120cc
Radio - 9 channel with 7 high torque servos (400 oz./in minimum) & 1 throttle servo, 2 rudder servos is optional not required.
IMAC Legal!

Recommended CG Range and Control Throws

The center of gravity (CG) range for the 103" Laser Z200 is located at the front of the wing tube +- 1"in
Aileron Control Throws
Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)
Elevator Control Throws
Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)
Rudder Control Throws
Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - Max Throw (50% Exp)

What's in the box:

NEW - Carbon-Kevlar plywood construction!
NEW - Carbon-Kevlar reinforced landing gear mount!
NEW - Carbon-Kevlar reinforced firewall!
NEW - Durable, lightweight one piece cowl design!
NEW - Canopy complete with cockpit!
Pre-hinged, glued and sealed ailerons & elevators
Carbon fiber main landing gear
Carbon fiber main wing tube
Dual carbon fiber stab tubes
Removable horizontal stabs & rudder
G10 fiberglass control horns
Aluminum standoffs for gas engines
Full-length canister tunnel
Heavy duty foam wheels with aluminum hubs
Heavy duty steel axles
Heavy duty pre-drilled wheel pants
Pre-drilled & rubber lined landing gear cuffs
Firewall pre drilled
Pre-run rudder pull-pull wires
High quality ball links & turnbuckles for all connections
Extra hardware bag for spares
Velcro for fuel tank or battery restraint

Note 5" Carbon Spinner is not supplied.
NOTE: This product is shipped in 3 separate boxes.

AJ flies this airframe with the following equipment (not included):

Engine - Desert Aircraft 120cc twin cylinder gas engine
Exhaust - (2) x KS3086 Canister Mufflers with 90mm Drop Header
Propeller - Falcon 28x10
Servos
(8) x Futaba S9177SV Servos (S.Bus2) for all surfaces
(1) x Futaba 9670SV for throttle
Gas Tank - (1) x AJ Aircraft single 34oz (1000ml)
Ignition Kill -Tech-Aero Ultra IBEC HV
Engine Baffle - AJ Aircraft 103" Z200 Baffle Set

Needed to complete:

Servo Extensions
(4) x 6" extensions for receiver to ailerons
(2) x 6" extensions for inner aileron
(2) x 24" extensions for outer ailerons
(1) x 24" extension for throttle servo
(1) x 24" extension for ignition kill
(2) x 36" extensions for push-pull rudder (only needed for push/pull setup)
(3) x 60" extensions for elevators
Aluminum Servo Arms
(4) x 1.75" single arms for ailerons
(2) x 1.75" single arms for elevators
(2) x 1.75" single arms for rudder (only needed for push/pull setup)
(1) x 3.50" double arm for rudder
5" Carbon Spinner
